B2 Anchoring/height adjustment

Raising the anchoring

Components
6 Pre-Tensioning Jack-2 VBC
7 Hand Pump-2 VBC
9 Chuck VBC
29 Sliding Plate VBC
62 Domed Nut D40

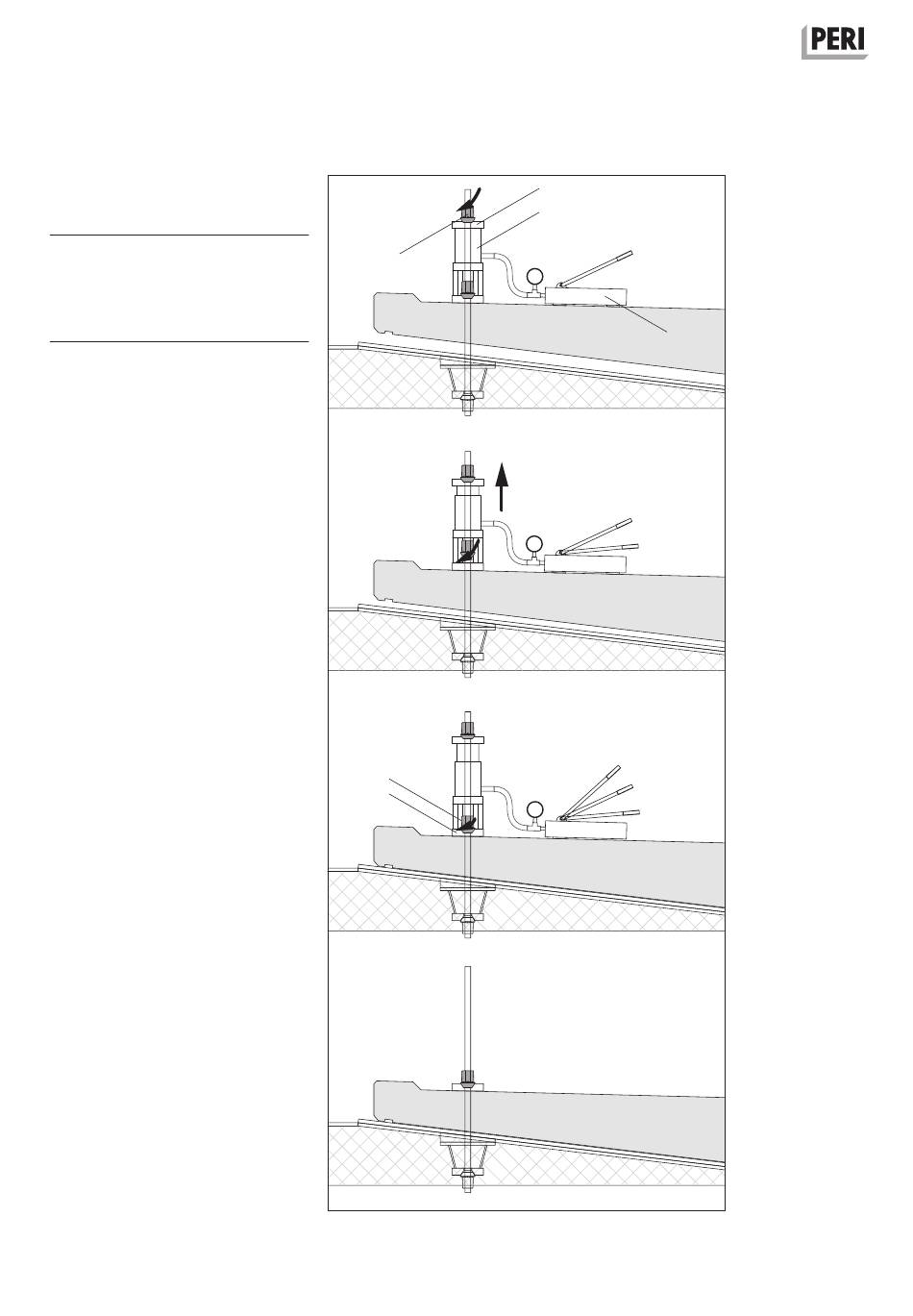

Lifting process
1. Place chuck (9), pre-tensioning jack
(6) and sliding plate (29a) over the tie
rod.
2. Screw domed nut (62a) onto the tie
rod until it rests against the sliding
plate (29).
3. Extend the pre-tensioning jack (6)
with the hand pump (7).
4. Turn the bottom domed nut (62b)
downwards until it rests against the
sliding plate (29a).
→ The slab formwork is raised.
5. After the last stroke, tighten the bot-
tom domed nut with a wrench. The
required tightening torque must be
determined on a project-specific ba-
sis. Do not exceed the pre-tensioning
force. See table B2.01.
6. Retract the pre-tensioning jack.
7 . Lift the domed nut (62a), sliding plate
(29a), pre-tensioning jack (6) and
chuck (9) off the tie rod.
VBC Balanced Cantilever Hydraulic System – Hydraulic System and Standard Cycle
Assembly Instructions
62a
62b
29b
Fig. B2.02
29a
6
7
35
