B4 Front carriage

Deactivating front carriage

→ Carriage is in a raised position
= drive mode.

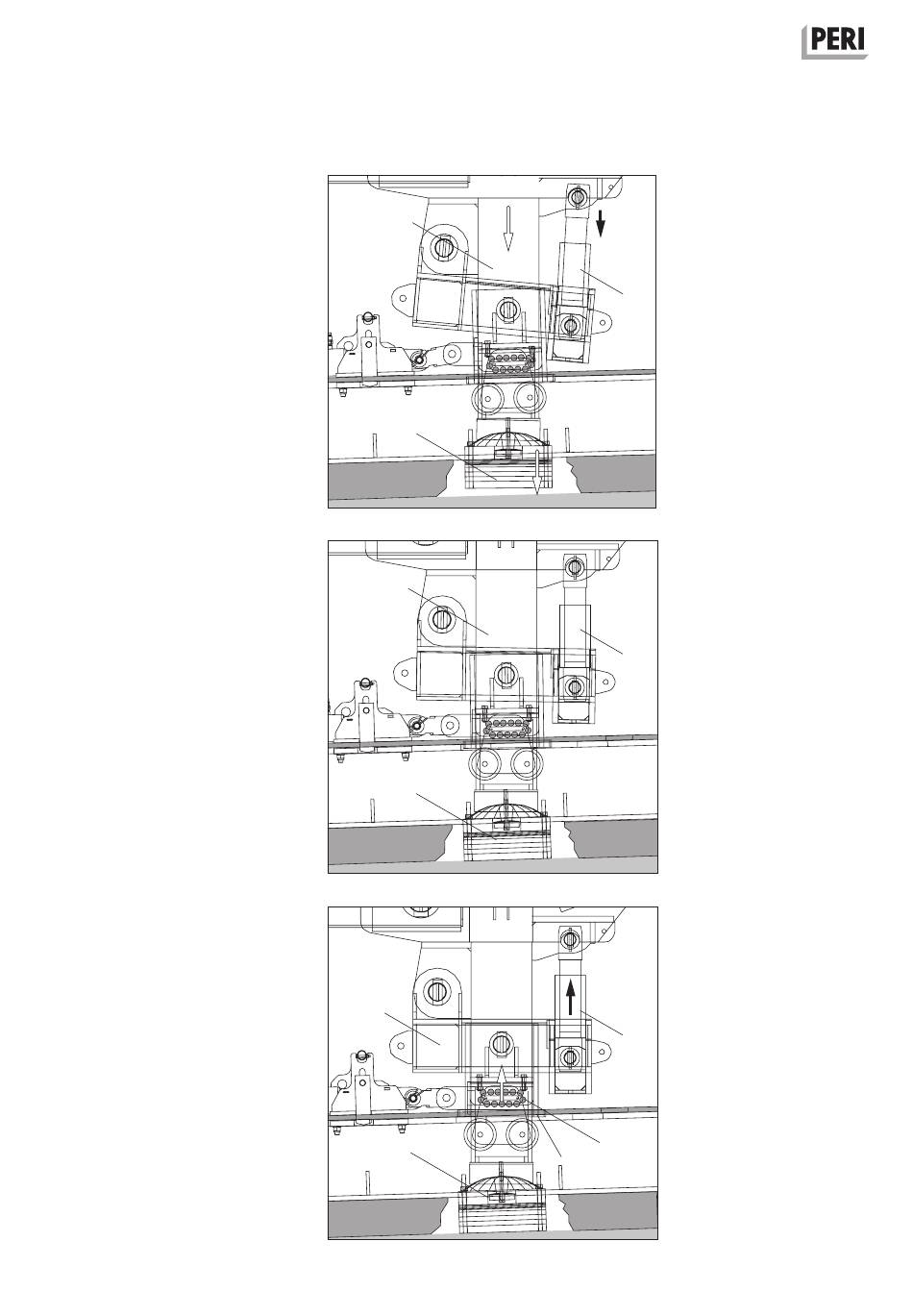

1. Retract the front main cylinder (2).
→ The front main cylinder lowers the
main frame post (24) until the post
base (30) rests on the structure.
(Fig. B4.06 + B4.07)
→ Cantilever frame moves downwards
accordingly.
→ The front carriage (31) moves up-
wards through further retraction until
the roller bearing (31.1) is lifted away
from the rail (8). (Fig. B4.08)
→ The front carriage is in operational
mode.
42
24
30
Fig. B4.06
24
30
Fig. B4.07
31
30
Fig. B4.08
VBC Balanced Cantilever Hydraulic System – Hydraulic System and Standard Cycle
2
2
2
31.1
8
Assembly Instructions
