Express-VR7 User's Guide

5.1. Debug Connector

This connector is particular useful during carrier design and bring up phase. It offers access to the following critical parts of the module:
 Test points measurement of internal power rails
 I2C bus for BIOS POST code readout
 SPI BIOS programming interface
 Embedded Controller programming interface
The debug board for Express-VR7 usage is DB40-HPC
Page 53

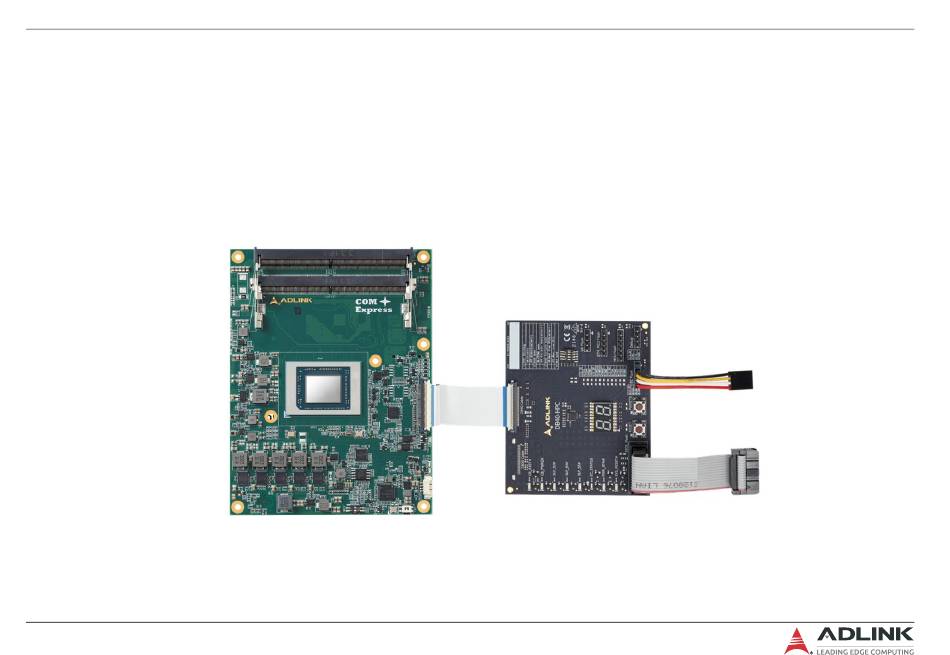

Figure 4 – Express-VR7 and Debug Module
Copyright © 2024 ADLINK Technology, Inc.
PICMG COM.0 R3.1
