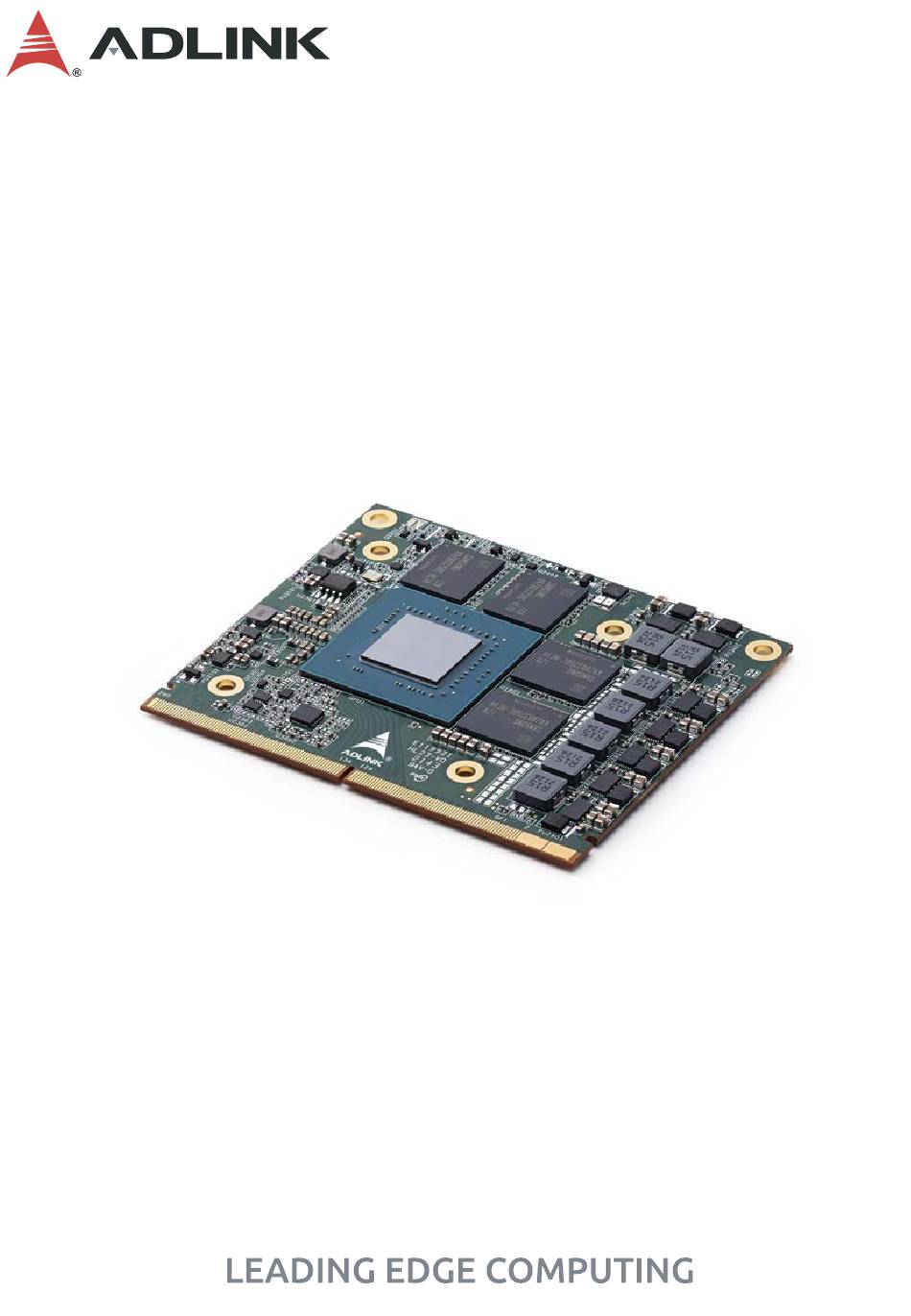

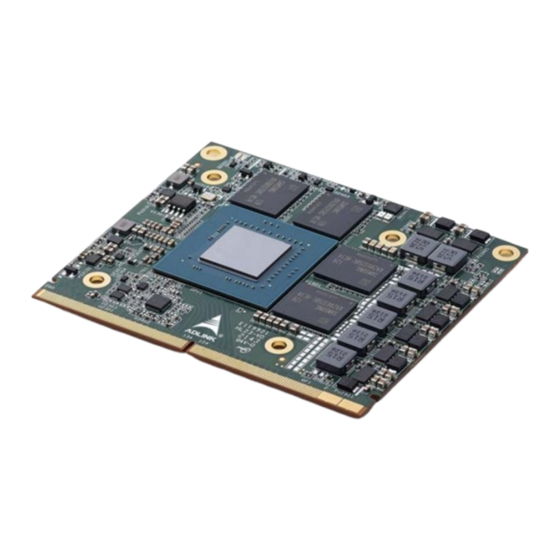

- Page 1 EGX-MXM-A1000/EGX-MXM-A2000 NVIDIA Ampere™ GA107 RTX A1000/A2000 Embedded Graphics Module User’s Manual Manual Rev.: July 22, 2022 Revision Date: 50M-00085-1000 Part No:...
- Page 2 Leading EDGE COMPUTING Revision History Revision Release Date Description of Change(s) 2022-07-22 Initial release Revision History...
-
Page 3: Preface
EGX-MXM-A1000/EGX-MXM-A2000 Preface Copyright © 2022 ADLINK Technology Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. - Page 4 California Proposition 65 Warning WARNING: This product can expose you to chemicals including acrylamide, arsenic, benzene, cadmium, Tris(1,3-dichloro-2-propyl) phosphate (TDCPP), 1,4- Dioxane, formaldehyde, lead, DEHP, styrene, DINP, BBP, PVC, and vinyl materials, which are known to the State of California to cause cancer, and acrylamide, benzene, cadmium, lead, mercury, phthalates, toluene, DEHP, DIDP, DnHP, DBP, BBP, PVC, and vinyl materials, which are known to the State of California to cause birth defects or other reproductive harm.
-
Page 5: Table Of Contents
EGX-MXM-A1000/EGX-MXM-A2000 Table of Contents Revision History..............ii Preface ..................iii List of Tables................. vii List of Figures ................ ix 1 Introduction ................ 1 Overview................1 Features................2 Specifications............... 3 1.3.1 Graphics Module ............3 1.3.2 Display Support and Options........4 1.3.3... - Page 6 Important Safety Instructions..........23 Getting Service ..............25 Table of Contents...
-
Page 7: List Of Tables
EGX-MXM-A1000/EGX-MXM-A2000 List of Tables Table 1-1: Graphics Module Display Options ......4 Table 1-2: NVIDIA Link Display Types ........4 Table 1-3: MXM Connector Pin Definitions........9 Table 1-4: Thermal Policy............14 List of Tables... - Page 8 This page intentionally left blank. viii List of Tables...
-
Page 9: List Of Figures
List of Figures Figure 1-1: EGX-MXM-A1000/A2000 Functional Block Diagram . 5 Figure 1-2: EGX-MXM-A1000/A2000 Dimensions......6 Figure 1-3: EGX-MXM-A1000/A2000 Top and Side Views ..7 Figure 1-4: EGX-MXM-A1000/A2000 Bottom View ...... 8 Figure 1-5: MXM Connector............8 Figure 2-1: Power Sequencing ........... 15 Figure 2-2: Module Power Down .......... - Page 10 This page intentionally left blank. List of Figures...
-
Page 11: Introduction
The EGX-MXM-A1000 and EGX-MXM-A2000 support operability in an extended temperature range of -20°C to 70°C, suitable for mission-critical harsh environments. With up to 2560 CUDA core... -
Page 12: Features
1.2 Features MXM 3.1 Type A FF (82 x 70 mm) 2048/2560 CUDA cores 6.6/8.2 TFLOPS SP peak performance 4/8 GB GDDR6 memory 224 GB/s maximal memory bandwidth Support for up to 4 FHD displays, 35W-60W TGP ... -
Page 13: Specifications
EGX-MXM-A1000/EGX-MXM-A2000 1.3 Specifications 1.3.1 Graphics Module Model EGX-MXM-A1000 EGX-MXM-A2000 Graphics Core Architecture NVIDIA® Ampere GA107 RTX A1000 RTX A2000 4x DisplayPort 1.4 Display Outputs Max resolution 7680 x4320 @60Hz DSC Signal Interface MXM 3.1, PCI Express Gen4 x8 support GPGPU Computing CUDA Toolkit 8.0, CUDA Compute version 6.1... -
Page 14: Display Support And Options
DirectX® 12 OpenGL 4.6 Vulcan 1.0 1.3.4 Graphics Options Both the EGX-MXM-A1000 and EGX-MXM-A2000 support a 4xDisplayPort by default, with display options as shown below. DP_A DP_B DP_C DP_D MXM port Link E Link A Link C... -
Page 15: Functional Block Diagram
DP_A IFPE GDDR6 x32 Channel B memory down DP1.4 DP_B IFPA GDDR6 x32 DP1.4 memory down DP_C IFPC DP1.4 DP_D IFPB VBIOS (133 LED*2 7*3 : DQG : Power Management (PWR_EN PWR_GOOD WAKE#) JTAG Figure 1-1: EGX-MXM-A1000/A2000 Functional Block Diagram Introduction... -
Page 16: Mechanical Layout
1.5 Mechanical Layout All dimensions shown are in mm NOTE: NOTE: Figure 1-2: EGX-MXM-A1000/A2000 Dimensions Introduction... -
Page 17: Figure 1-3: Egx-Mxm-A1000/A2000 Top And Side Views
Scale 2:1 Section-B Section-C Scale 2:1 Scale 2:1 PTH HOLE PTH HOLE 2 PCS 4 PCS TOP SIDE: OD=6.0mm; ID=3.2mm BOTTOM SIDE: OD=7.0mm; ID=3.2mm 1.25 1.25 Section-D Section-E Scale 2:1 Scale 2:1 Figure 1-3: EGX-MXM-A1000/A2000 Top and Side Views Introduction... -
Page 18: Figure 1-4: Egx-Mxm-A1000/A2000 Bottom View
39.76 34.74 28.75 129x0.35 2x4.82 2.35 1.85 Figure 1-4: EGX-MXM-A1000/A2000 Bottom View (R G5 X G6) Pin 125 Pin 281 Pin E1 Pin 133 Pin E3 Pin E2 Pin 134 Pin 124 Pin E4 Figure 1-5: MXM Connector Introduction... -
Page 19: Mxm Connector Pin Definitions
EGX-MXM-A1000/EGX-MXM-A2000 1.6 MXM Connector Pin Definitions Primary Side (bottom side) Secondary Side (top side) Signal PU/PD Signal PU/PD PWR_SRC PWR_SRC PRSNT_R# 0ohm PD RSVD PWR_GOOD PWR_EN 27MHZ_REF RSVD RSVD 100K PU to PWR_LEVEL 3.3V 100K PU to RSVD TH_OVERT# 3.3V... - Page 20 Primary Side (bottom side) Secondary Side (top side) Signal PU/PD Signal PU/PD PEX_TX15# PEX_RX15# PEX_TX15 PEX_RX15 PEX_TX14# PEX_RX14# PEX_TX14 PEX_RX14 PEX_TX13# PEX_RX13# PEX_TX13 PEX_RX13 PEX_TX12# PEX_RX12# PEX_TX12 PEX_RX12 PEX_TX11# PEX_RX11# PEX_TX11 PEX_RX11 PEX_TX10# PEX_RX10# PEX_TX10 PEX_RX10 PEX_TX9# PEX_RX9# PEX_TX9 PEX_RX9 PEX_TX8# PEX_RX8# PEX_TX8...
- Page 21 EGX-MXM-A1000/EGX-MXM-A2000 Primary Side (bottom side) Secondary Side (top side) Signal PU/PD Signal PU/PD PEX_TX5# PEX_RX5# PEX_TX5 PEX_RX5 PEX_TX4# PEX_RX4# PEX_TX4 PEX_RX4 PEX_TX3# PEX_RX3# PEX_TX3 PEX_RX3 PEX_RX2# PEX_TX2# PEX_RX2 PEX_TX2 PEX_RX1# PEX_TX1# PEX_RX1 PEX_TX1 PEX_RX0# PEX_TX0# PEX_RX0 PEX_TX0 PEX_REFCLK# 154 PEX_CLK_REQ#...
- Page 22 Primary Side (bottom side) Secondary Side (top side) Signal PU/PD Signal PU/PD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD DP_C_L0# RSVD DP_C_L0 RSVD DP_C_L1# DP_D_L0# DP_C_L1 DP_D_L0 DP_C_L2#...
- Page 23 EGX-MXM-A1000/EGX-MXM-A2000 Primary Side (bottom side) Secondary Side (top side) Signal PU/PD Signal PU/PD RSVD RSVD DP_D_AUX# RSVD DP_D_AUX RSVD DP_C_HPD PD 100K RSVD DP_D_HPD PD 100K RSVD RSVD RSVD RSVD RSVD RSVD DP_B_L0# RSVD DP_B_L0 RSVD DP_B_L1# DP_A_L0# DP_B_L1 DP_A_L0...
-
Page 24: Thermal Policy
Retain the shipping carton and packing materials for inspection. Obtain authorization from your dealer before returning any product to ADLINK. Ensure that the fol- lowing items are included in the package. EGX-MXM-A1000/EGX-MXM-A2000 embedded graphics module Introduction... -
Page 25: System Requirements
EGX-MXM-A1000/EGX-MXM-A2000 System Requirements 2.1 Power Sequencing For initial power on, or to Resume from S3 and S4, this sequence must be followed. PV-PE PE-PG PV-PE PE-PG Figure 2-1: Power Sequencing 2.2 Module Power Up and Down Issuing the PWR_EN signal powers the MXM module down, and the system designer can decide whether to keep the module input power when the MXM module is powered down. -
Page 26: Reset Requirements
MODULE INPUT POWER PWR_EN MODULE INTERNAL POWER PWR_GOOD Figure 2-2: Module Power Down 2.3 Reset Requirements PVPERL PERST-PG FAIL PERST-CLK MODULE INPUT POWER PVPERL PERST-CLK PWR_EN PERST-PG FAIL PWR_GOOD PEX_REFCLK PEX_RST# Figure 2-3: Reset Sequencing System Requirements... -
Page 27: System Bios Settings
EGX-MXM-A1000/EGX-MXM-A2000 2.4 System BIOS Settings The system BIOS must meet the following criteria: SBIOS must support the "Above 4G decoding" feature to support a resizable BAR1 size. SBIOS must enable "Above 4G decoding" as the default configuration. The following is a sample BIOS menu setting for reference. The actual menu setting can vary depending on the specific SBIOS design. -
Page 28: Dual Mode Displayport Implementation
2.5 Dual Mode DisplayPort Implementation The EGX-MXM-A1000/EGX-MXM-A2000 supports four dual mode DisplayPorts by default. HDMI can be supported via dongle. The system requires a switch circuit to determine whether the AUX or DDC signal is output from the MXM module, and AC coupling capacitors should be placed on the system board. -
Page 29: Dvi/Hdmi On Displayport Interface
EGX-MXM-A1000/EGX-MXM-A2000 2.6 DVI/HDMI on DisplayPort Interface DVI and HDMI connectors can both be implemented through the DisplayPort interface. To support HDMI display from MXM, the HDMI port needs to be routed from DP_C and/or DP_A. To sup- port DVI from MXM, the DVI port needs to be routed from DP_B and/ or DP_D. -
Page 30: Driver Installation
100K DP_x_Lx_P HDMI_TX_xP DP to HDMI Dongle DP_x_Lx_N HDMI_TX_xN Hot Plug DET Hot Plug DET 100K NI is Reserve Figure 2-7: Active IC for HDMI Dongle 2.7 Driver Installation Drivers can be downloaded from: https://www.adlinktech.com/Products/Embedded_Graphics/ embedded-graphics-solutions/EGX-MXM-A1000 https://www.adlinktech.com/Products/Embedded_Graphics/ embedded-graphics-solutions/EGX-MXM-A2000 System Requirements... -
Page 31: Certifications & Agencies
EGX-MXM-A1000/EGX-MXM-A2000 2.8 Certifications & Agencies Windows Hardware Quality Lab (WHQL) certified for Windows 10 and Windows 11 EU Reduction of Hazardous Substances (EU-RoHS) Conformité Européenne (CE) Federal Communications Commission (FCC) System Requirements... - Page 32 This page intentionally left blank. System Requirements...
- Page 33 EGX-MXM-A1000/EGX-MXM-A2000 Important Safety Instructions For user safety, please read and follow all instructions, Warnings, Cautions, and Notes marked in this manual and on the associated device before handling/operating the device, to avoid injury or damage. S'il vous plaît prêter attention stricte à tous les avertissements et mises en garde figurant sur l'appareil , pour éviter des blessures...
- Page 34 Never attempt to repair the device, which should only be serviced by qualified technical personnel using suitable tools The device must be serviced by authorized technicians when: The power cord or plug is damaged Liquid has entered the device interior ...
- Page 35 San Jose, CA 95119-1208, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-600-1189 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. 300 Fang Chun Rd., Zhangjiang Hi-Tech Park Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax: +86-21-5132-3588 Email: market@adlinktech.com ADLINK Technology GmbH Hans-Thoma-Straße 11...
