Express-VR7 User's Guide

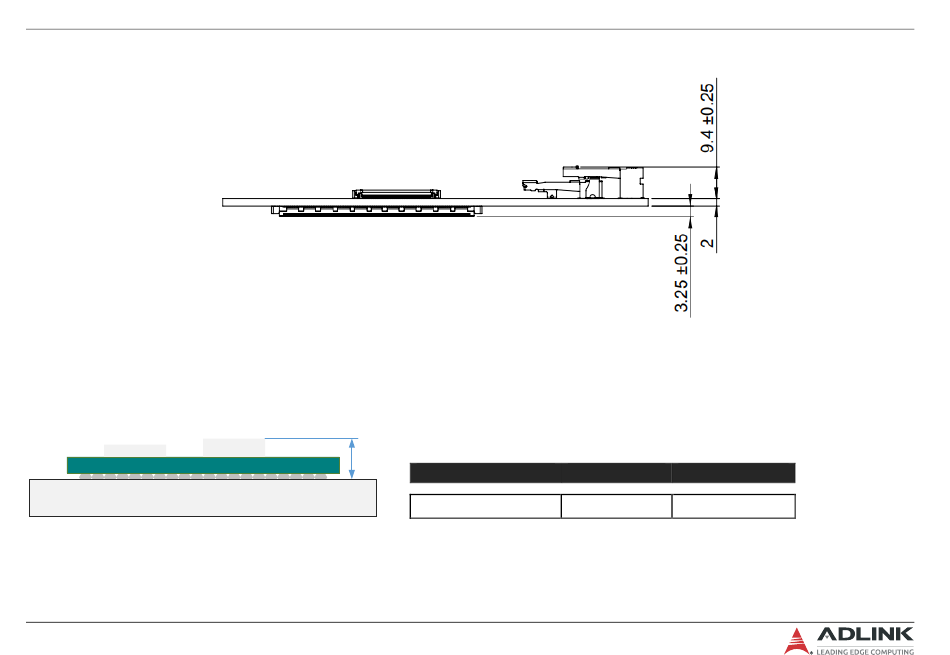

8.3. Module Dimensions – Side View

8.4. Height of Processor and Static Compressive Load

Processor Height Tolerance
The tolerance of the processor height is one of the key factors to consider when designing your thermal solution, as illustrated below. Please contact
our ADLINK representative for further details.
Die
Substrate
Module PCB
Static Compressive Load
Another key factor to consider is the static compressive load. The Express-VR7 module exhibits a processor maximum pressure die of 40 lbf.
Page 63
Die
h
Copyright © 2024 ADLINK Technology, Inc.
Typical
h 1.28 mm
PICMG COM.0 R3.1
Tolerance
+/- 0.1mm
