5.2. Debug Connector

This connector is particular useful during carrier design and bring up phase. It offers access to the following critical parts of the module:
Test points measurement of internal power rails
•
SPI BIOS programming interface
•
Embedded Controller programming interface
•
30-pin Debug Connector located on bottom side 30-pin Debug Connector located on bottom side
Page 60

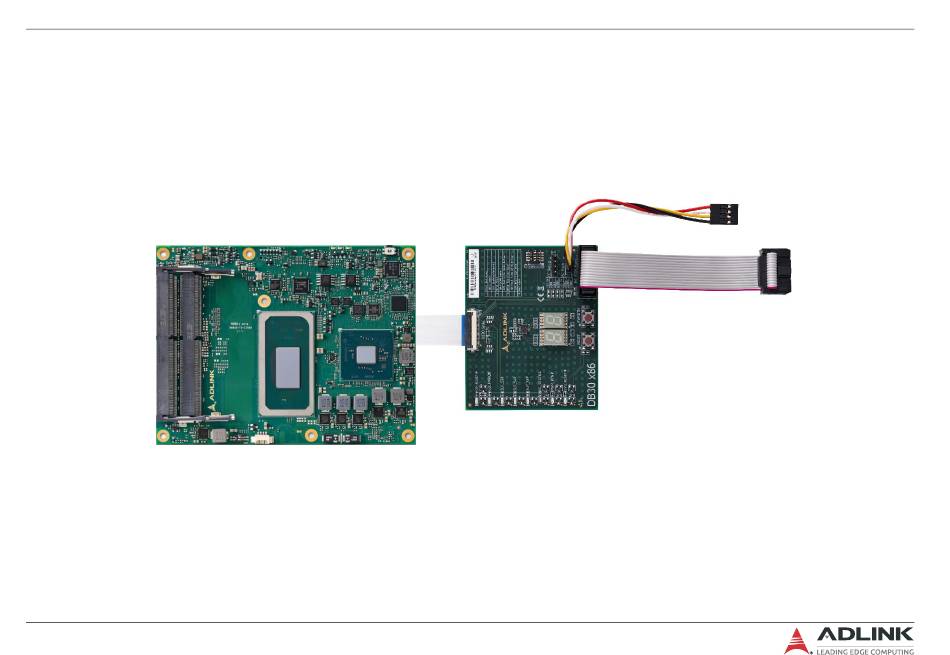

Figure 5 – Express-TL and Debug Module
