8.9. Installation
Install a heat spreader or heat sink using the following instructions. The images below are for illustration purpose only.

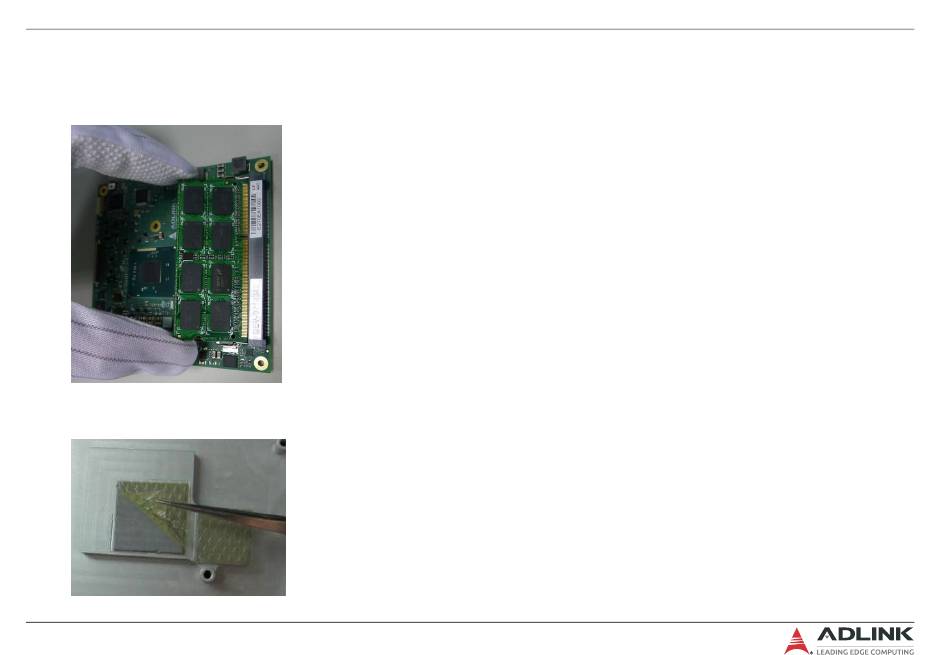

1. Before mounting the heatsink, install the required memory modules onto the SODIMM socket(s) on the COM Express module.
2. Remove the protective membranes from the thermal pads. All thermal pads have a protective membrane (module dependent)
