5.2. Status LEDs

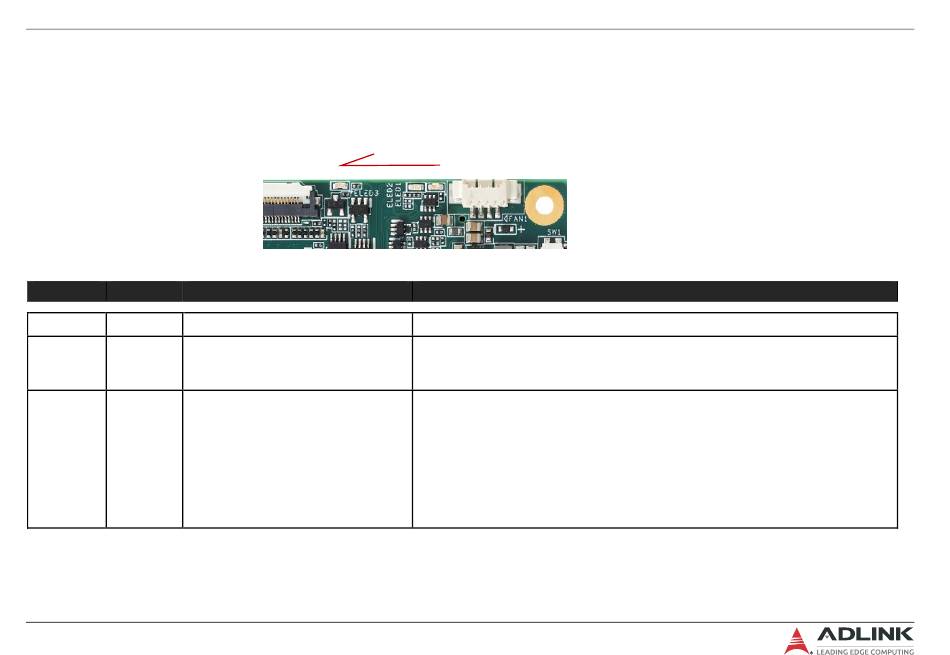

Status LED's are mounted on the module to facilitate easier maintenance.
Name
Color
Connection
LED1
Blue
BMC output
LED2
Green
Power Source 3Vcc
LED3
Red
BMC output and same signal as WDT (B27)
on BtB connector
Page 54
LED3
LED2
LED1
Function
Power Sequence Status Code (BMC) Power Changes, RESET (see Exception Codes below)
S0
LED ON
S3/S4/S5
LED OFF
ECO mode
LED OFF
Module power up
Watchdog counting
Watchdog timed out
Watchdog RESET
Rebooted after WD RESET
Rebooted after PWRBTN
Rebooted after RESET BTN
Note: Only a RESET not initiated by the BMC can clear the WD LED (user action)
Copyright © 2024 ADLINK Technology, Inc.
WD LED = LED OFF
WD LED = Keep Last State
WD LED = LED ON
WD LED = LED ON
WD LED = LED ON
WD LED = LED OFF
WD LED = LED OFF
