Express-VR7 User's Guide

8.8. Standoff Types

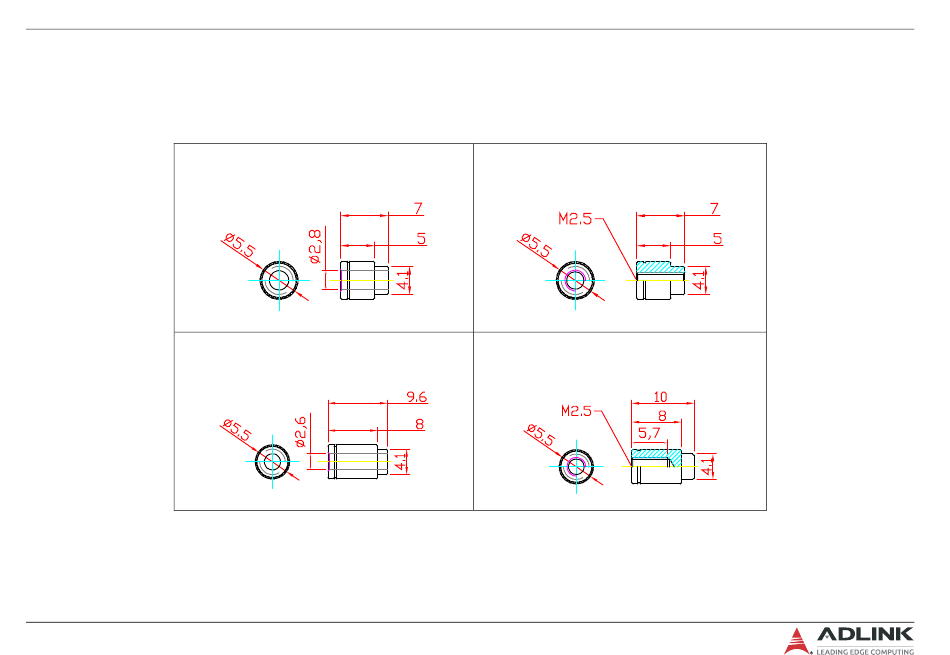

The standoffs available for top and bottom mounting methods are shown below. Note that threaded standoffs are DIP type and through-hole standoffs
are SMT type. Other types not listed are available upon request.
5mm through-hole standoff (SMT type)
P/N: 33-72000-0050
8mm through-hole standoff (SMT type)
P/N: 33-72000-0080
Page 73
5mm threaded standoff (DIP type)
P/N: 33-72016-0050
8mm threaded standoff (DIP type)
P/N: 33-72015-0050
