5.1. Debug Connector

This connector is particular useful during carrier design and bring up phase. It offers access to the following critical parts of the module:
Test points measurement of internal power rails
I2C bus for BIOS POST code readout
SPI BIOS programming interface
Embedded Controller programming interface
Page 57

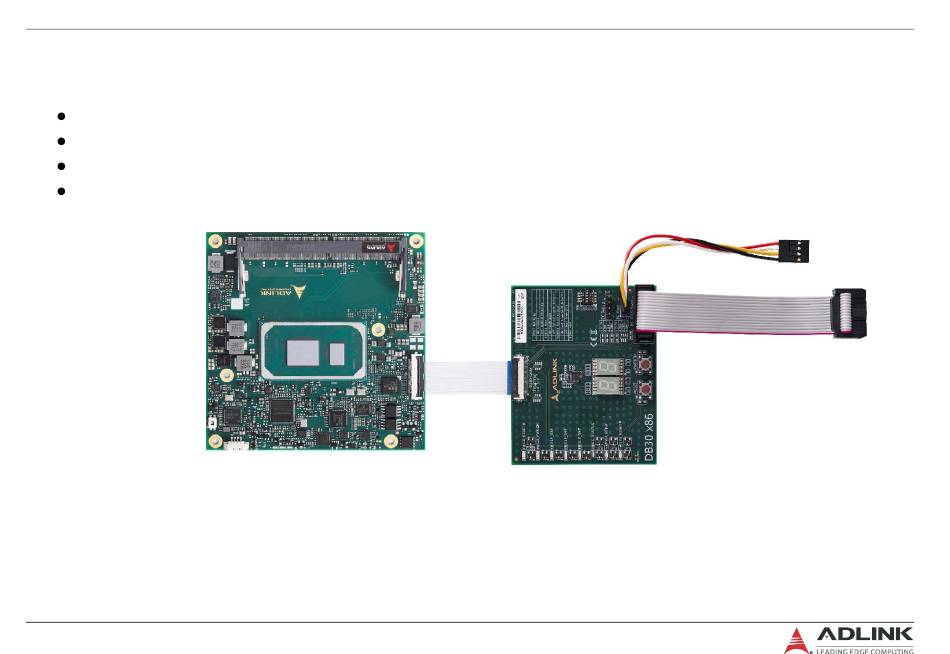

Figure 4 – cExpress-TL and Debug Module
