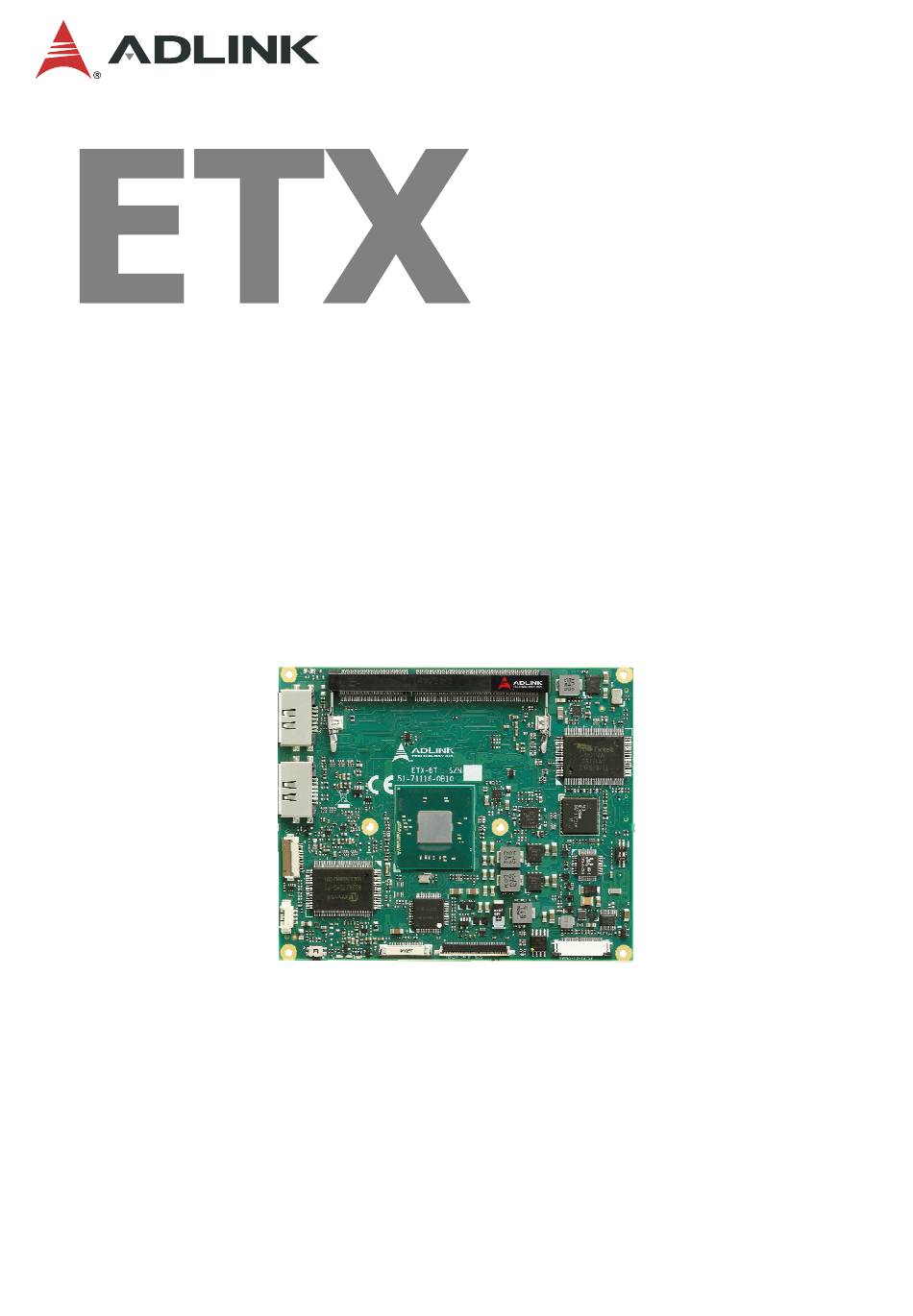

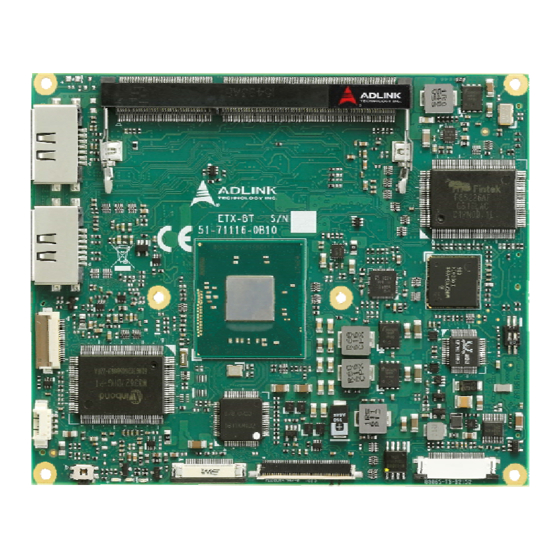

ETX-BT
User's Manual
(PATA to SATA version)
Manual Revision:
Revision Date:
Part Number:
Leading EDGE COMPUTING
1.3
July 3, 2019
50-1J059-1060

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETX-BT and is the answer not in the manual?

Questions and answers

Related Manuals for ADLINK Technology ETX-BT

Summary of Contents for ADLINK Technology ETX-BT

  • Page 1 ETX-BT User’s Manual (PATA to SATA version) Manual Revision: July 3, 2019 Revision Date: Part Number: 50-1J059-1060 Leading EDGE COMPUTING...

  • Page 2: Preface

    Preface Copyright © 2015-2019 ADLINK Technology, Inc. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 3 ETX-BT Revision History Revision Description Date 1.00 Initial release 2015-03-18 JC 1.01 Correct SPI Boot Device Switch settings 2015-05-07 JC 1.02 Correct SPI Boot Device settings; SPI0 fail-safe as default 2015-06-12 JC 1.03 Correct LPC-to-ISA bridge in block diagram 2015-12-16 JC 1.10...

  • Page 4: Table Of Contents

    Table of Contents Preface ....................2 Introduction..................6 1.1 Description ....................6 Specifications ................. 7 2.1 General ...................... 7 2.2 Video......................8 2.3 Audio......................8 2.4 Ethernet ..................... 9 2.5 Multi I/O and Storage ................. 9 2.6 Super I/O ....................9 2.7 SEMA Board Controller................
  • Page 5 ETX-BT SEMA (Smart Embedded Management Agent) ......37 7.1 Board Specific SEMA Functions .............. 38 System Resources................ 42 8.1 System Memory Map ................42 8.2 I/O Map ....................42 8.3 Interrupt Request (IRQ) Lines ..............43 8.4 PCI Configuration Space Map..............45 8.5 PCI Interrupt Routing Map ...............

  • Page 6: Introduction

    1 Introduction 1.1 Description The ETX-BT is based on the latest Intel Atom® processor E3800 SoC series, adopting the latest 22nm process technology with 3-D Tri-Gate transistors featuring significant improvements in computational performance and energy efficiency. The E3800 SOC series integrates processor- and GPU cores and all I/O on a single chip. Processor performance is scalable from a single-core Intel Atom®...

  • Page 7: Specifications

    ETX-BT 2 Specifications 2.1 General CPU: Single, dual or quad-core Intel Atom® or Celeron® processor Intel Atom® E3845 1.91 GHz 542/792 (Turbo) 10W (4C/1333) • Intel Atom® E3827 1.75 GHz 542/792 (Turbo) 8W (2C/1333) • Intel Atom® E3826 1.46 GHz 533/667 (Turbo) 7W (2C/1066) •...

  • Page 8: Video

    2.2 Video Graphics Core: Intel 7th generation (Gen 7) graphics and media encode/decode engine (not supported on Atom® E3805 SKU) Feature Support: o VED video decoder in addition to Gen 7 media decoder o Graphics Burst enabled through energy counters o Supports DX 11, OpenGL 3.0 (OGL 3.0), OpenCL 1.1 (OCL 1.1), OpenGLES 2.0 (OGLES 2.0) o GPU shader capable of up to 8 gigaflops, 4x anti-aliasing...

  • Page 9: Ethernet

    ETX-BT 2.4 Ethernet Type: Intel® i211 (MAC/PHY) Ethernet controller Interface: 10/100 Mbps on ETX signal connector (build option for 1000/100/10 Mbps via FPC connector on module, only one output can be active at a time) 2.5 Multi I/O and Storage USB: 4 ports USB 2.0/1.1...

  • Page 10: Sema Board Controller

    Floppy: not supported (no DMA support on SoC) PS/2: Keyboard /Mouse 2.7 SEMA Board Controller Type: BMC uPD78F0763GB Functions o Power Features AT mode control Emergency shutdown Power status monitoring and signalling (LED), current monitor ECO mode support o Flat Panel Control Additional DDC I2C bus control for PWM control on carrier LVDS brightness PWM output switchable by BIOS with GPU PWM output Vdde inhibit...

  • Page 11: Power

    ETX-BT 2.8 Power Standard Input: ATX = 5V±5% / 5Vsb ±5% or AT = 5V±5% Management: ACPI 4.0 compliant, Smart Battery support Power States: C0, C1, C1E, C4, C6; S0, S3, S4, S5 (Wake on USB S3/S4,WOL S3/S4/S5) ECO mode: supports deep S5 (ECO mode) for power saving 2.9 Mechanical and Environmental...

  • Page 12: Functional Diagram

    3 Functional Diagram GbE Flat cable connector SODIMM PCIe 1-8 GB DDR3L i211 non-ECC SMBus SEMA SPI 0 BIOS SPI 1 LM73 BIOS LPC to ISA SATA to F85226AF PATA 1 (Master only) Intel Atom™ SATA to PATA 2 (Master only) E3800 SoC 1x SATA 3Gb/s (port 1)

  • Page 13: Mechanical Dimensions

    ETX-BT 4 Mechanical Dimensions Top View Side View tolerances ± 0.05 mm Other tolerances ± 0.2 mm...

  • Page 14: Pinouts And Signal Descriptions

    5 Pinouts and Signal Descriptions Crossed out signals are not supported. 3V (3.3 V ±5%) is generated on board. Pins may be used to power devices on the carrier board up to a maximum load of 500 mA. Do not connect the 3V pin to external 3.3V supply power. 5.1 X1: PCI Bus, USB, Audio Signal Signal...
  • Page 15 ETX-BT X1 Signal Descriptions Signal Description Type PU/PD Comment Ground Ground PCICLK3 PCI Clock Slot 3 O-3,3 PCICLK4 PCI Clock Slot 4 O-3,3 Ground Ground PCICLK1 PCI Clock Slot 1 O-3,3 PCICLK2 PCI Clock Slot 2 O-3,3 REQ3# PCI Bus Request 3...
  • Page 16 Signal Description Type PU/PD Comment PCI Bus Command and Byte CBE1# IO-3,3 enables 1 SNDR Audio Out Right 5VCC Power +5V 5VCC Power +5V PCI Bus Parity IO-3,3 SERR# PCI Bus System Error IO-3,3 PU 8k2 3,3V GPERR# PCI Bus Grant Error IO-3,3 PU 8k2 3,3V RESERVED...

  • Page 17: X2: Isa

    ETX-BT 5.2 X2: ISA Signal Signal Signal Signal SD14 SD15 IRQ5 SD13 MASTER# IRQ6 SD12 DREQ7 IRQ7 SD11 DACK7# SYSCLK SD10 DREQ6 SA10 REFSH# DACK6# SA11 DREQ1 DREQ5 SA12 DACK1# MEMW# DACK5# MEMR# DREQ0 SA13 DREQ3 LA17 DACK0# SA14 DACK3#...
  • Page 18 X2 Signal Descriptions Signal Description Type PU/PD Comment Ground Ground SD14 ISA Data Bus PU 4k7 5V int. PU 100k SD15 ISA Data Bus PU 4k7 5V int. PU 100k SD13 ISA Data Bus PU 4k7 5V int. PU 100k MASTER# ISA 16-Bit Master PU 8K2 5V...
  • Page 19 ETX-BT Signal Description Type PU/PD Comment 5VCC Power +5V 5VCC Power +5V ISA Address Bus PU 4k7 5V int. PU 100k IRQ5 ISA Interrupt Request 5 PU 4k7 5V ISA Address Bus PU 4k7 5V int. PU 100k IRQ6 ISA Interrupt Request 6...

  • Page 20: X3: Lvds, Serial, Parallel, Kb, Ms

    5.3 X3: LVDS, Serial, Parallel, KB, MS Signal Signal Signal Signal LPT/FLPY# RESERVED STB# AFD# DDCK RESERVED DETECT# DDDA IRRX ERR# LCDDO16 LCDDO18 IRTX LCDDO17 LCDDO19 RXD2 INIT# LCDDO13 LCDDO15 RTS2# LCDDO12 LCDDO14 DTR2# SLIN# DCD2# LCDDO8 LCDDO11 DSR2# LCDDO9 LCDDO10 CTS2# TXD2...
  • Page 21 ETX-BT X3 Signal Descriptions Signal Description Type PU/PD Comment Ground Ground Analog Video Out RGB - Red Ch PD 150R Analog Video Out RGB - Blue Ch PD 150R Horizontal Synchronization Pulse O-3,3 Analog Video Out RGB - Green Ch...
  • Page 22 Signal Description Type PU/PD Comment LPT | FLPY# LPT / Floppy Interface Select RESERVED 5VCC Power +5V Ground STB# | RSV LPT Strobe Signal LPT Automatic Feed / Floppy Density AFD# | DENSEL Select RESERVED PD7 | RSV LPT Data Bus D7 IO-5 IRRX Infrared Receive...

  • Page 23: X4: Ide 1, Ide 2, Ethernet, Miscellaneous

    ETX-BT 5.4 X4: IDE 1, IDE 2, Ethernet, Miscellaneous Signal Signal Signal Signal SIDE_IOW# PIDE_IOR# 5V_SB PWGIN SIDE_DRQ PIDE_IOW# PS_ON# SPEAKER SIDE_D15 PIDE_DRQ PWRBTN# BATT SIDE_D0 PIDE_D15 KBINH# LILED# SIDE_D14 PIDE_D0 RSMRST# ACTLED# SIDE_D1 PIDE_D14 ROMKBCS# SPEEDLED SIDE_D13 PIDE_D1 EXT_PRG...
  • Page 24 X4 Signal Descriptions Signal Description Type PU/PD Comment Ground Ground 5V_SB Supply of internal suspend Circuit PWGIN Power Good / Reset Input I-3,3 PS_ON Power Supply On PU 4k7 5VSB SPEAKER Speaker Output PWRBTN# Power Button PU 10k 3,3BMC BATT Battery Supply KBINH Keyboard Inhibit Control Input...
  • Page 25 ETX-BT Signal Description Type PU/PD Comment S_IOW# Secondary IDE IO Write O-3,3 P_IOR# Primary IDE IO Read O-3,3 S_DRQ Secondary IDE DMA Request I-3,3 PD 5k6 P_IOW# Primary IDE IO Write O-3,3 S_D15 Secondary IDE Data Bus P_DRQ Primary IDE DMA Request...

  • Page 26: Module Interfaces

    6 Module Interfaces This chapter describes connectors with pin outs, LEDs and switches that are used on the module but which interfaces are not part of the ETX standard specification 6.1 Connector, Switch and LED Locations Component Side PCI IRQ Selection Reset BIOS XDP port...
  • Page 27 ETX-BT Solder Side SPI Boot PCI Voltage Selection Selection...

  • Page 28: 40-Pin Multipurpose Connector

    6.2 40-pin Multipurpose Connector FPC Connector Type: FCI 59GF Flex 10042867 Pin Orientation: Pin Definitions (on ETX module) Pin Interface Signal Remark Pin Interface Signal Remark VCC_SPI_I SPI Power Input from TXD6 Program flash tool to module. Program interface HW need add MOS interface FET to switch SPI (cont’d)

  • Page 29: Status Leds

    ETX-BT ETX-BT and the DB40 Module connected 6.3 Status LEDs To facilitate easier maintenance, status LED’s are mounted on the board. LED1 LED2 LED3 LED Descriptions: Name Color Connection Function LED1 Blue BMC output Power Sequence Status Code (BMC) Power Changes, RESET (see Section 7.1 Exception Codes)

  • Page 30: Xdp Debug Header

    6.4 XDP Debug Header Connector Type: Molex 26-pin 52435-2671 The debug port is a connection into a target-system environment that provides access to JTAG, run control, system control, and observation resources. The XDP target system connector is a Molex 26-pin 52435-2671 connector. Specific plating types, locking clips, and alignment pin details of this connector can be obtained from Molex.

  • Page 31: Dp Connector

    ETX-BT 6.5 DP Connector Connector Type: Wurth WE 6871 2214 522 The DP connector brings out DDI1 port of the Intel Atom® SoC as either DP or HDMI/DVI on a flat cable connector. Pin Definitions Pin Signal Description (DP / HDMI)

  • Page 32: Fan Connector

    6.6 Fan Connector Connector Type: JVE 24W1125A-04M00 Pin Orientation: Pin Definitions: Signal FAN_PWMOUT FAN_TACHIN Ground...

  • Page 33: Gbe Connector

    ETX-BT 6.7 GbE Connector Normal support for 100/10 Mbps LAN is through the X4 connector. There is a build option to disconnect these signals and instead route full 1000/100/10 Mbps support to the FPC connector on the module. Note: Standard modules will not include the FPC connector and will only route LAN signals to the X4 connector.

  • Page 34: Sw1: Spi Boot Device Selection

    6.8 SW1: SPI Boot Device Selection The ETX-BT supports a form of fail-safe BIOS. In the case that the primary BIOS is corrupted and the BIOS POST takes longer than normal, the system’s POST watchdog will time out and the system will reset with the secondary SPI Flash BIOS assigned as primary.

  • Page 35: Sw2: Bios Setup Defaults Reset Button

    ETX-BT 6.9 SW2: BIOS Setup Defaults RESET Button To perform a hardware reset of BIOS default settings, perform the following steps: 1. Shut down the system. 2. Press the BIOS Setup Defaults RESET Button continuously and boot up the system. You can release the button when the BIOS prompt screen appears 3.

  • Page 36: Sw4: Pci Interrupt Routing Select

    6.10 SW4: PCI Interrupt Routing Select Standard PCI routing is compliant with ETX specification rev 3.02, as below In some cases (e.g. real time OS) PCI routing needs to be modified. This can be done with the SW4 switch. Note that ABCD is the default, standard ETX compliant setting Switch Settings PCI IRQ Position 1...

  • Page 37: Sema (Smart Embedded Management Agent)

    ETX-BT 7 SEMA (Smart Embedded Management Agent) The onboard microcontroller (BMC) implements power sequencing and Smart Embedded Management Agent (SEMA) functionality. The microcontroller communicates via the System Management Bus with the CPU/chipset. The following functions are implemented. Total operating hours counter. Counts the number of hours the module has been run in minutes.

  • Page 38: Board Specific Sema Functions

    7.1.2 Main Current The BMC of the ETX-BT implements a current monitor. The current can be read by calling the SEMA function “Get Main Current”. The function returns four 16-bit values divided in high-byte (MSB) and low-byte (LSB). These 4 values represent the last 4 currents drawn by the board.
  • Page 39 ETX-BT 7.1.3 BMC Status This register shows the status of BMC controlled signals on the ETX-BT. Status Bit Signal WDT_OUT LVDS_VDDEN LVDS_BKLTEN NULL POSTWDT_DISn SEL_BIOS NULL NULL...
  • Page 40 7.1.4 Exception Codes In case of an error, the BMC drives a blinking code on the blue Status LED (LED1). The same error code is also reported by the BMC Flags register. The Exception Code is not stored in the Flash Storage and is cleared when the power is removed. Therefore, a “Clear Exception Code”...
  • Page 41 ETX-BT 7.1.5 BMC Flags The BMC Flags register returns the last detected Exception Code since power-up and shows the BIOS in use and the power mode. Description [ 0 ~ 4 ] Exception Code [ 6 ] 0 = AT mode...

  • Page 42: System Resources

    8 System Resources 8.1 System Memory Map Address Range (decimal) Address Range (hex) Size Description Start 128KB below 1MB 000E0000h-000FFFFFh Low BIOS Starts 20MB below 4GB FEC00000h-FEC0040h IO APIC Start 19MB below 4GB FED00000h-FED003FFh HPET Start 64 KB below 4GB FFFF0000h-FFFFFFFFh High BIOS 0K –1MB...

  • Page 43: Interrupt Request (Irq) Lines

    ETX-BT 8.3 Interrupt Request (IRQ) Lines 8.3.1 PIC Mode IRQ# Typical Interrupt Resource Connected to Pin Available Counter 0 Keyboard controller IRQ1 via SERIRQ / PIRQ Cascade interrupt from slave PIC Serial Port 2 (COM2) IRQ3 via SERIRQ / PIRQ...
  • Page 44 8.3.2 APIC Mode IRQ# Typical Interrupt Resource Connected to Pin Available System timer Standard PS/2 Keyboard Communication Port(COM2) IRQ3 via SERIRQ / PIRQ Note (1) Communication Port(COM1) IRQ4 via SERIRQ / PIRQ Note (1) Note (1) Note (1) High precision event timer Note (1) Note (1) Note (1)

  • Page 45: Pci Configuration Space Map

    ETX-BT 8.4 PCI Configuration Space Map Device Function Routing Description Number Number Number Soc Transaction Router Internal Graphics & Display Internal SATA Internal Trusted Exécution Engine Internal HD Audio Internal PCI Express Root port 1 Internal PCI Express Root port 2...

  • Page 46: Pci Interrupt Routing Map

    8.5 PCI Interrupt Routing Map INT Line Intel PCIe PCIe Root PCIe Root PCIe Root SD Host # 0 SD Host#1 I.G.D Root Port#2 Port#3 Port#4 eMMC SDIO Port#1 INTA:16 INTA:16 INTA:16 Int0 INTB:17 INTB:17 Int1 INTC:18 Int2 INTD:19 Int3 INT Line SD SATA TI PCI-to-...

  • Page 47: Smbus Address Table

    ETX-BT 8.6 SMBus Address Table Address (hex) Function Device DDR3 channel A DDR3 socket eDP to LVDS NXP3460 GbE LAN i211 Super I/O W83627DHG-PT (50) μPD78F0763 8.7 I C Address Table Address (hex) Function Device System thermal LM73 monitor CPU thermal...

  • Page 48: Bios Setup

    9 BIOS Setup 9.1 Menu Structure This section presents the six primary menus of the BIOS Setup Utility. Use the following table as a quick reference for the contents of the BIOS Setup Utility. The subsections in this section describe the submenus and setting options for each menu item. The default setting options are presented in bold, and the function of each setting is described in the right hand column of the respective table.

  • Page 49: Main

    ETX-BT 9.2 Main The Main Menu provides read-only information about your system and also allows you to set the System Date and Time. Refer to the tables below the screen shot of this menu for details of the submenus and settings.
  • Page 50 9.2.6 System Management 9.2.6.1 System Management > Board Information Board Information Info only SEMA Firmware Read only Display SMC firmware. Build Date Read only Display SMC firmware build date. SEMA Boot loader Read only Display SMC boot loader. Build Date Read only Display SMC boot loader build date.
  • Page 51 ETX-BT 9.2.6.3 System Management > Power Consumption Feature Options Description Power Consumption Info only Current Input Current Read only Display input current. Current Input Power Read only Display input power. GPU-Vcore Read only Display actual voltage of the GPU-Vcore. GFX-Vcore Read only Display actual voltage of the GFX-Vcore.
  • Page 52 9.2.6.6 System Management > Power Up Feature Options Description Power Up Info only Power Up watchdog Enabled The Power-Up Watchdog resets the system after a certain amount of time after power- Attention: Pressing F12 during start Disabled up disables the Power Up Watchdog.
  • Page 53 ETX-BT 9.2.7 System Date and Time Feature Options Description System Date Weekday, MM/DD/YYYY Set the Date. Use Tab to switch between Date elements. System Time HH/MM/SS Set the Timer. Use Tab to switch between Time elements.

  • Page 54: Advanced

    9.3 Advanced 9.3.1 Feature Options Description Info only CPU Brand Name Info only Display CPU brand name. CPU Signature Info only Display CPU signature. Processor Family Info only Display processor family. Microcode Patch Info only Display microcode patch. Max CPU speed Info only Display Max CPU speed.
  • Page 55 ETX-BT 9.3.2 Memory Feature Options Description Memory Info only Total Memory Info only Display Total Memory. DIMM#0 Info only Display DIMM#0/1. Enabled:Writes to SMBus slave addresses SPD Write Protect Enabled A0h – Aeh are disabled. Disabled Max TOLUD 2.0 GB Maximum Value of TOLUD.
  • Page 56 Feature Options Description LVDS Backlight Control Source Select LVDS backlight control function. IGFX LCD Panel Type Select LCD panel used by Internal Graphics AUTO Device by selecting the attropriate setup item. 640x480 LVDS 800x480 LVDS 800x600 LVDS 1024x600 LVDS 1024x768 LVDS 1280x800 LVDS 1280x1024 LVDS 1366x768 LVDS...
  • Page 57 ETX-BT 9.3.4 SATA Feature Options Description SATA Info only SATA Controller(s) Enable / Disable Serial ATA. Enabled Disabled SATA Mode Selection IDE Mode Select IDE / AHCI AHCI Mode SATA Test Mode Enabled Test Mode enable / disable. Disabled SATA Controller Speed...
  • Page 58 9.3.5 Feature Options Description Info only USB Module Version Info only USB Devices Info only X drive, x keyboards, x mouse, x hubs Legacy USB Support Enables legacy USB support. Enabled Disabled Auto option disables legacy support if no USB devices are connected.
  • Page 59 ETX-BT 9.3.5.1 USB > Chipset USB Configuration Feature Options Description USB Configuration Info only XHCI Mode Enabled Mode of operation of xHCI controller. Disabled Auto Smart Auto USB 2.0(EHCI) Support Disabled Control the USB EHCI (USB 2.0) functions. One EHCI controller must always be Enabled enabled.
  • Page 60 9.3.8 Super IO Feature Options Description Super IO Chip Info only W83627DHG Super IO Info only Configuration Serial Port 1 Configuration Serial Port Enable/Disable serial port (COM). Enabled Disabled IO=3F8h; IRQ=4 Device Settings Fixed configuration of serial port. Change Settings Auto Select an optimal setting for Super IO IO=3F8h;...
  • Page 61 ETX-BT Feature Options Description EPP-1.7 and SPP Mode ECP Mode ECP and EPP 1.9 Mode ECP and EPP 1.7 Mode FDC37C669SEC Super IO Info only Configuration Serial Port 1 Configuration Serial Port Enable/Disable serial port (COM). Enabled Disabled IO=240h; IRQ=10 Device Settings Fixed configuration of serial port.
  • Page 62 9.3.9 ACPI and Power Management Feature Options Description ACPI and Power Management Info only Enable ACPI Auto Configuration Enabled Enables or disables BIOS ACPI auto configuration. Disabled Enable Hibernation Enables or disables system ability to hibernate Enabled Disabled (OS/S4 Sleep State). This option may be not effective with some OS.
  • Page 63 ETX-BT 9.3.11.1 Serial Port Console > Console Redirection Settings Feature Options Description COM0/COM1 Info only Console Redirection Settings Terminal Type VT100 Emulation: ANSI: Extended ASCII char set. VT100: ASCII char set. VT100+: Extends VT100+ VT100 to support color, function keys, etc.
  • Page 64 Feature Options Description Putty KeyPad Select function key and keypad on Putty. VT100 LINUX XTERMR6 ESCN VT400 The settings specify if BootLoader is Redirection After BIOS Post Always Enabled selected than legacy console redirection is BootLoader disabled before booting to legacy OS. Default value is Always Enable which means legacy console redirection is enabled for legacy OS.
  • Page 65 ETX-BT 9.3.13 Miscellaneous Feature Options Description Miscellaneous Info only High Precision Timer Enable or disable the high precision event Enabled timer. Disabled Security Info only BIOS Security Configuration Submenu Trusted Computing Submenu Spectrum Info only Display SSC Enabled Enable/Disable spread spectrum to DISPLAY clock.

  • Page 66: Security

    9.4 Security 9.4.1 Password Description Feature Options Description Administrator Password Enter password Set Administrator Password User Password Enter password Set User Password Secure Boot menu Submenu Customizable secure boot settings. 9.4.2 Secure Boot Menu Feature Options Description System Mode Setup Secure Boot Info only Secure Boot...

  • Page 67: Boot

    ETX-BT 9.5 Boot 9.5.1 Boot Configuration Feature Options Description Boot Configuration Info only Setup Prompt Timeout Number of seconds to wait for setup activation key.65535 (0xFFFF ) means indefinite waiting. Bootup NumLock State Select the keyboard Numlock state. Quiet Boot Enable or disables Quiet Boot option.

  • Page 68: Save & Exit

    Feature Options Description Boot option filter This option controls Legacy/UEFI ROMs priority. UEFI and Legacy Legacy only UEFI only Option ROM execution order Info only Controls the execution of UEFI and Legacy PXE Network Do not launch OpROM. UEFI only Legacy only Storage Do not launch...

  • Page 69: Safety Instructions

    ETX-BT Safety Instructions Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use. • Please read these safety instructions carefully. • Please keep this User‘s Manual for later reference.
