Express-VR7 User's Guide

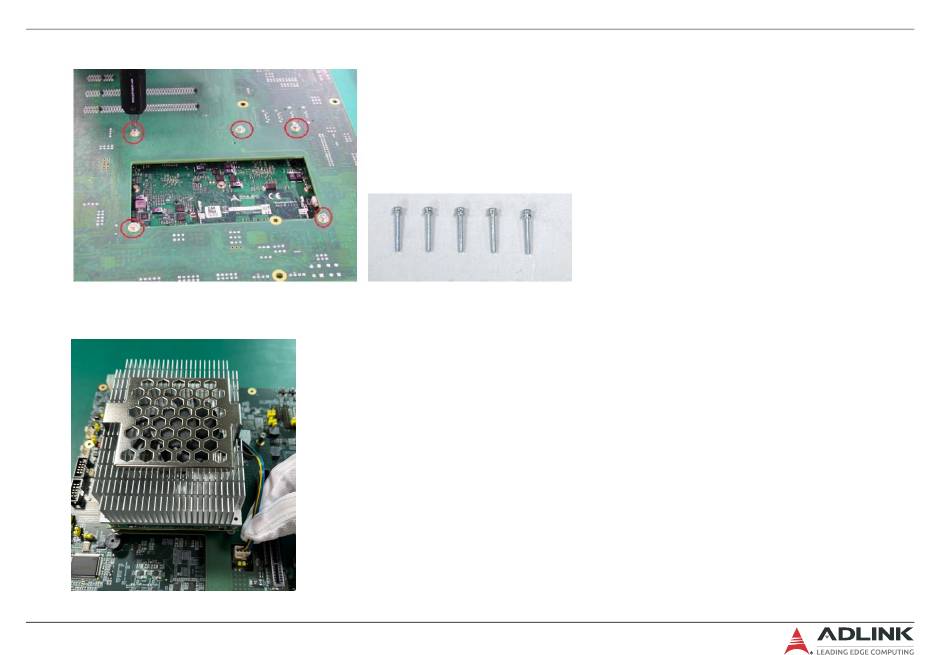

5. Use the 5x M2.5, L=16mm screws provided to secure the COM Express module to the carrier board from the solder side.
6. If you are installing a heatsink with a fan, plug the fan connector into the carrier board as shown.
Page 76
Copyright © 2024 ADLINK Technology, Inc.
PICMG COM.0 R3.1
