Preparation of the tractor
3.7

Power Supply

For the electronic seed drill control Solitronic a power supply of 12 V is required.
Excess voltage and undervoltage lead to a breakdown and can destroy electric
components.

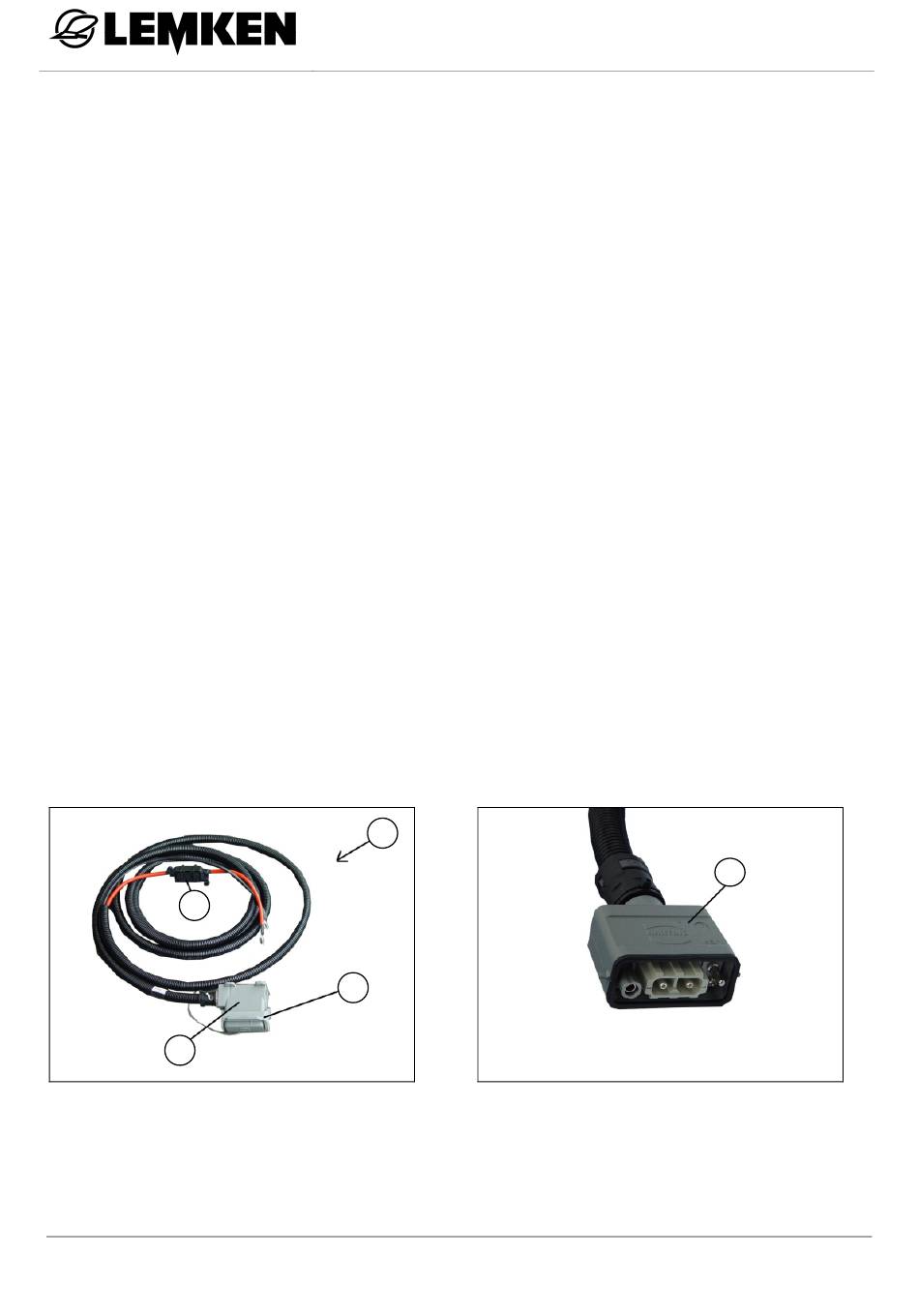

For the connection to the tractor battery the battery mounting set (1) with 40 A
fuse (2) and plug connection (3) with lock (4) is used, which is included in the de-
livery.
By means of the plug connection the complete seed drill control will be supplied
with power. At the left side of the seed drill the coupling box (5) and the job com-
puter (6) are fitted. After attachment and detachment of the implement, the electric
pipes will be connected as follows:
Connect 8-wires cable (7) of the electronic seed drill control to the operation termi-
nal (8).
Connect cable with plug (9) to the plug connection of the battery mounting set and
fix by means of the lock.
After detachment, the electric pipes must be disconnected and kept in a dry place
on the seed drill. The operation terminal must also be kept in a dry place or in the
tractor cabin.
