8.4
Soil-working implement rollers
The following information pertaining to rollers must be observed so that the seed-
ing coulters do not knock against the soil-working implement roller and to ensure
that the seed box can always be pivoted safely.
1.
The roller of the LEMKEN soil-working implement must be mounted in the fur-
thest position to the rear on the soil-working implement.
2.
The RSW 540 tube bar roller must be connected with the roller carriers in po-
sition B.
3.
All Ø 500 mm rollers of the Zirkon circular spike harrow must be connected
with the roller carriers in position B if the tines have 50% wear or more.

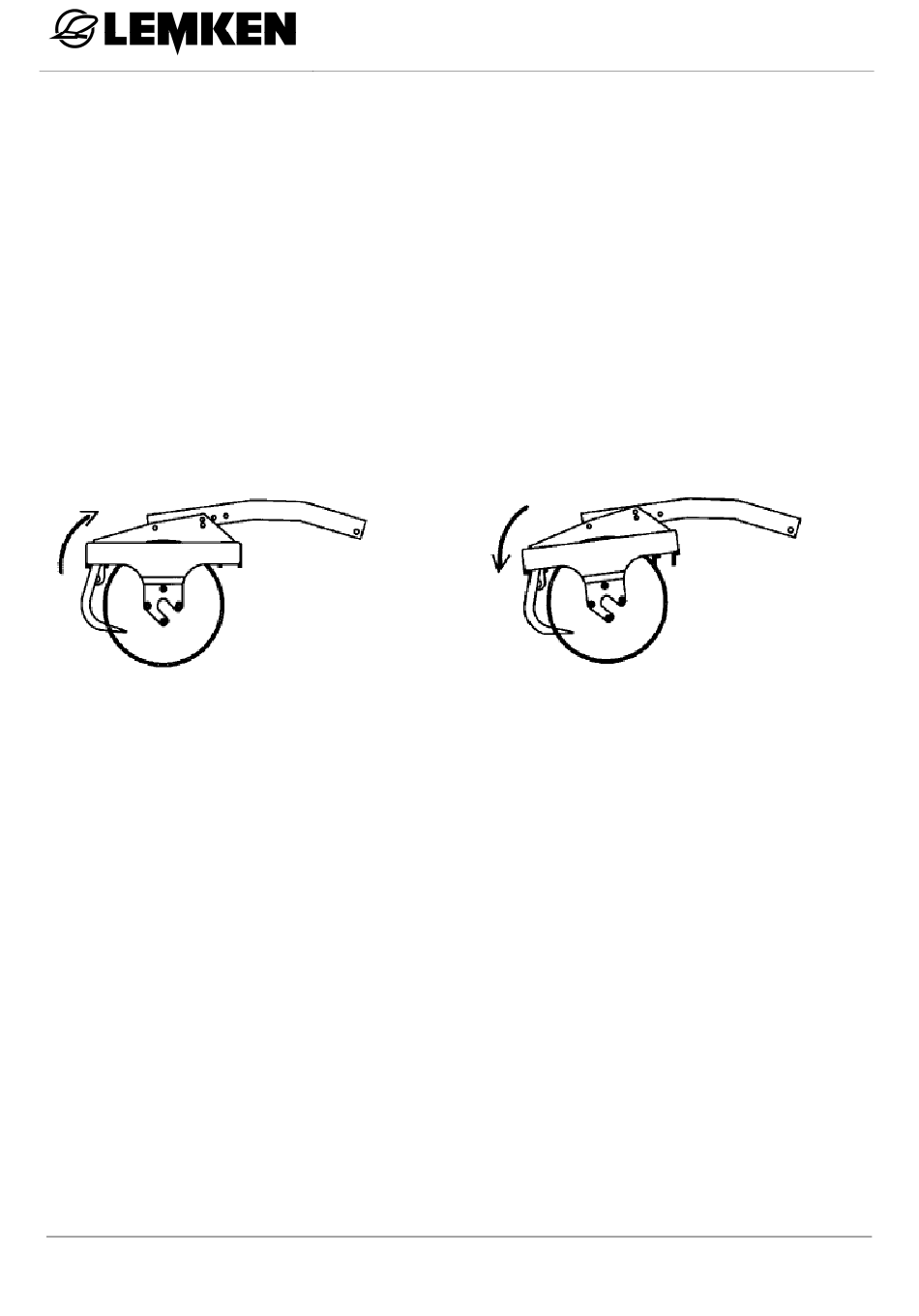

Position A
48
Adjustments
Position B
