Important! You must make sure that the impulse wheel (9) never comes into con-
tact with the harrow during sowing.
 Prior to transportation, the sowing harrow-S must be folded up
50
6
8
9
and secured to preclude the risk of injury. Otherwise, it must be
covered with transport protection aids.

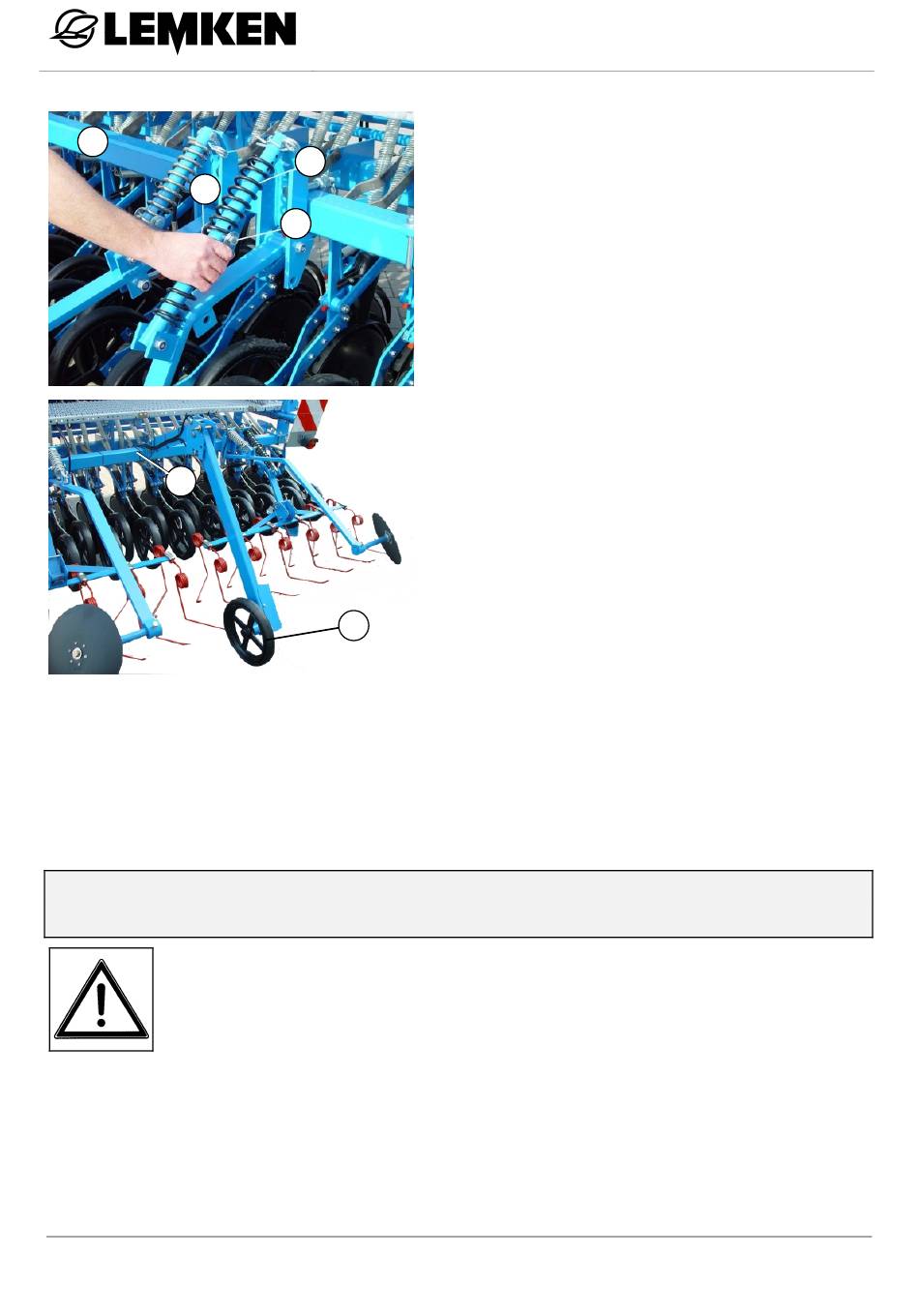

Turn the spring (6) to set the harrow pres-
sure.
Higher harrow pressure => turn the spring
clockwise
Lower harrow pressure => turn the spring
anticlockwise
The nuts (7) of the bolt (8) must be suffi-
ciently tightened to prevent the spring (6)
from accidentally moving whilst allowing
the spring to be moved manually.
For both a single harrow and a sowing har-
row-S, a short harrow tine must be moun-
ted in the vicinity of the impulse wheel (9)
to prevent the impulse wheel from being
blocked.
If used in conjunction with a sowing har-
row-S, the impulse wheel (9) must be
mounted on the carrier (1).
