Coupling and uncoupling the seed drill

4.1.2 Coupling parts for third-party implements

1
2
In addition, a hole must be drilled. In the delivery state, the upper link only has one
hole for implement coupling.

4.1.3 Coupling parts for solo operation

point "A" as per the following table for work and so that there is no risk of falling
below the prescribed point.
Dimension "A" is measured from the lower edge of the frame tube (1) of the coul-
ter bar to the floor in the working position.

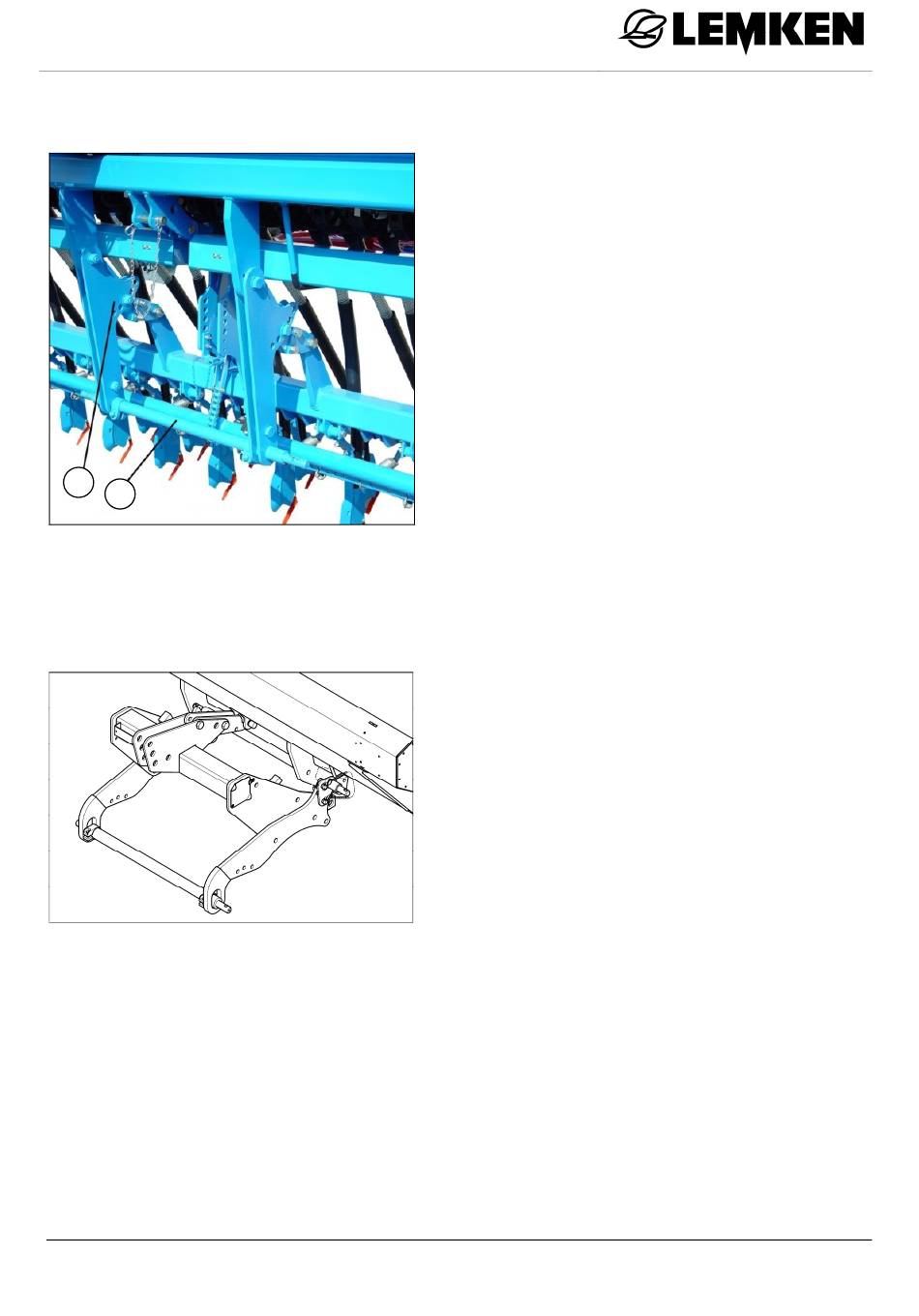

In this version, the implement can also be
coupled with the three-point linkage of soil-
working implements of other manufactur-
ers. A row of holes (1) can be used to set
the drawbar (2) at a distance from the im-
plement so that the implement can be eas-
ily coupled with the three-point linkage of a
soil-working implement of another manu-
facturer. When third-party implements are
used, the length of the upper link must be
modified by the specialist dealer before
coupling the implements for the first time.
In this version, the implement can be cou-
pled directly to the three-point linkage of
the tractor.
CAUTION! The three-point linkage of the
tractor must comply with ISO 730-1 and be
fitted with position control/a depth limiter.
This is required so that the implement can
be lowered to
