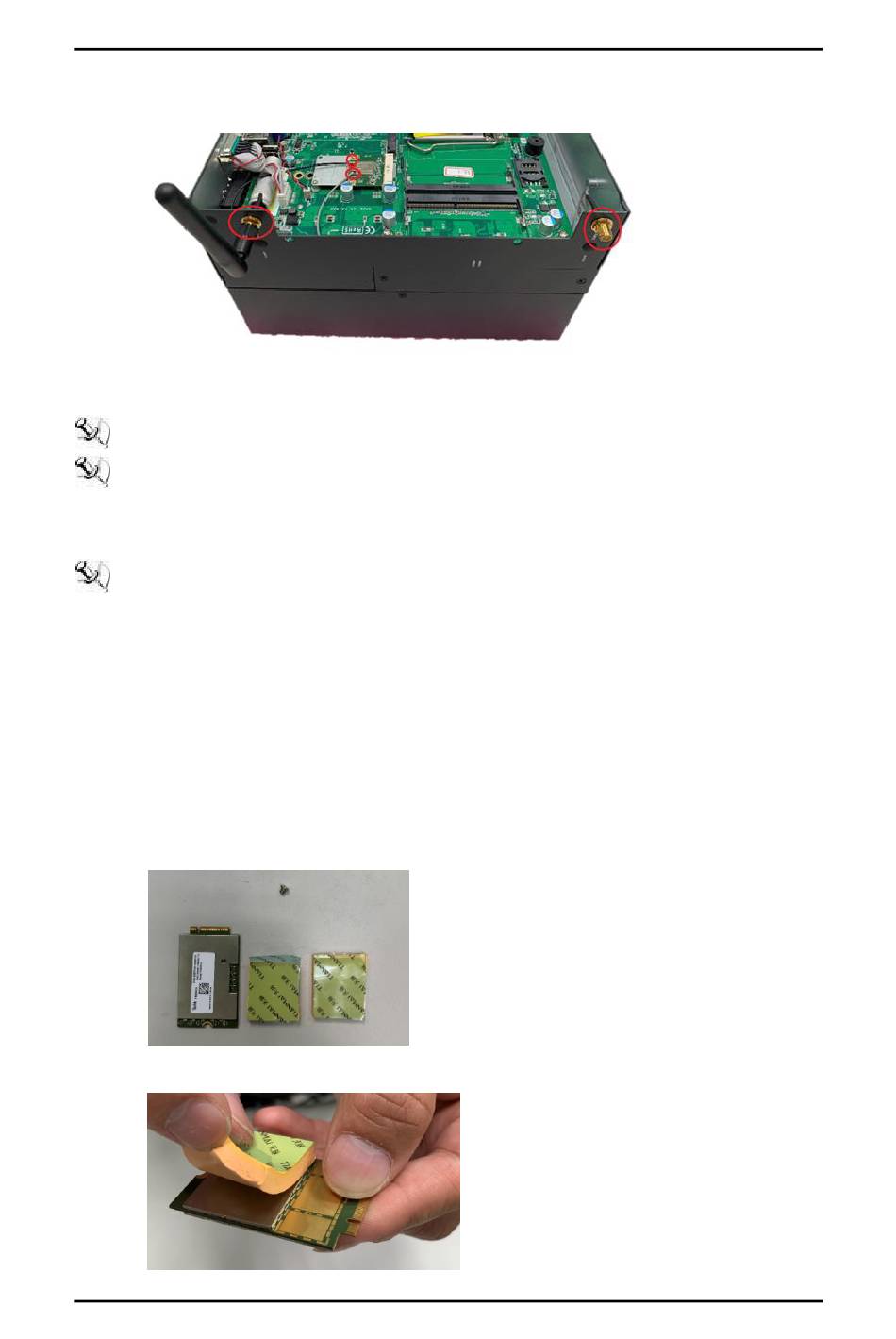

Step 6 Remove the antenna plugs from the top of back cover, and then install the
antennas on the antenna connectors.
Step 7 Close the cover back to the chassis and fasten all screws. The installation is
complete.
Note: Please use an extended bracket when using a half-size Mini card
Note: a) 1 x on board full-size PCI Express Mini Card slot with USB/PCIe interface
(IPC962-525-Q370/IPC964-525-Q370)
b)1 x on board full-size PCI Express Mini Card slot with US B interface
(IPC962-525-H310)
Note: The IPC960, IPC962 and IPC964 support either a mini card slot or an M.2 Key
B slot.
2.9

Installing the 5G Wireless Module

The IPC960, IPC962 and IPC964 come with an M.2 Key B 3050 slot for users to install a 5G
wireless card. Please refer to the following instructions and illustrations for the installation of
the 5G wireless module.
Step 1 Please take the 5G module kit from the accessory box.
Step 2 Paste the thermal pad on the bottom side of the module, as illustrated below.
