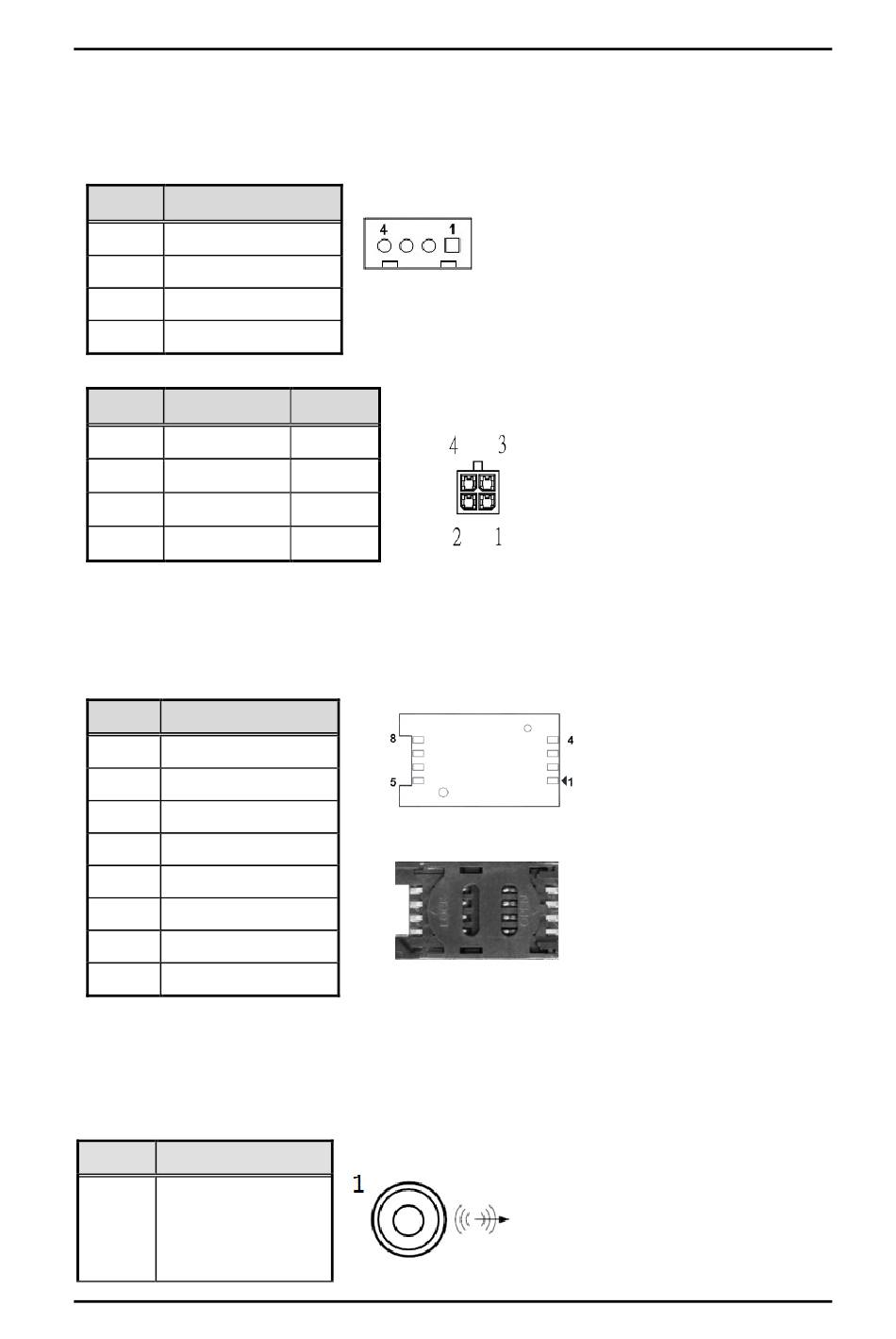

Remote Power Switch Connector (CN1)

The system provides wafer pitch 2.00mm pin connector output for remote power on/off and reset
switch.
Pins Signals
1 HW_RST#
2 GND
3 FP_PSIN#
4 GND
Pins Signals
1 GND
2 GND
3 FP_PSIN#
4 HW_RST#
1.7.2 SIM Card Slots (CN3、CN9)
The IPC972 includes one SIM slot (CN3) on the top side of the system for inserting the
SIM card. It is mainly used in 3G /LTE wireless network applications on SCN3.
Pin Signal
1 PWR
2 RST
3 CLK
4 NC
5 GND
6 VPP
7 I/O
8 NC
1.7.3

Audio Connector (CN4)

This audio jack is ideal for Audio Line-out.
Pins Signals
1 Line Out
16
Color
Black
Black
Red
Blue
Introduction
