Characteristics

100-VAC Input Type
Item
Continuous output current (rms)
Input power Main Power
supply circuit supply
capacity
Power
supply
voltage
Rated
current
Heat
value *
Control Power
circuit supply
voltage
Heat
value *
Control method
Inverter method
PWM frequency
Weight
Maximum applicable motor capacity
Applicable 3,000 r/
motor min type
2,000-r/
min type
1,000-r/
min type
*1. The heat value is given for rated operation.
OMNUC G5-Series AC Servo Drives Users Manual (Built-in MECHATROLINK-II communications type)
R88D-
KNA5L-ML2
1.2 A
0.4 KVA
Single-phase 100 to 120 VAC (85 to 132 V) 50/60 Hz
1.7 A
11W
1
Single-phase 100 to 120 VAC (85 to 132 V) 50/60 Hz
4W
1
12.0 kHz
Approx. 0.8 kg
50 W
INC K05030H
K05030T
ABS
ABS

ABS 

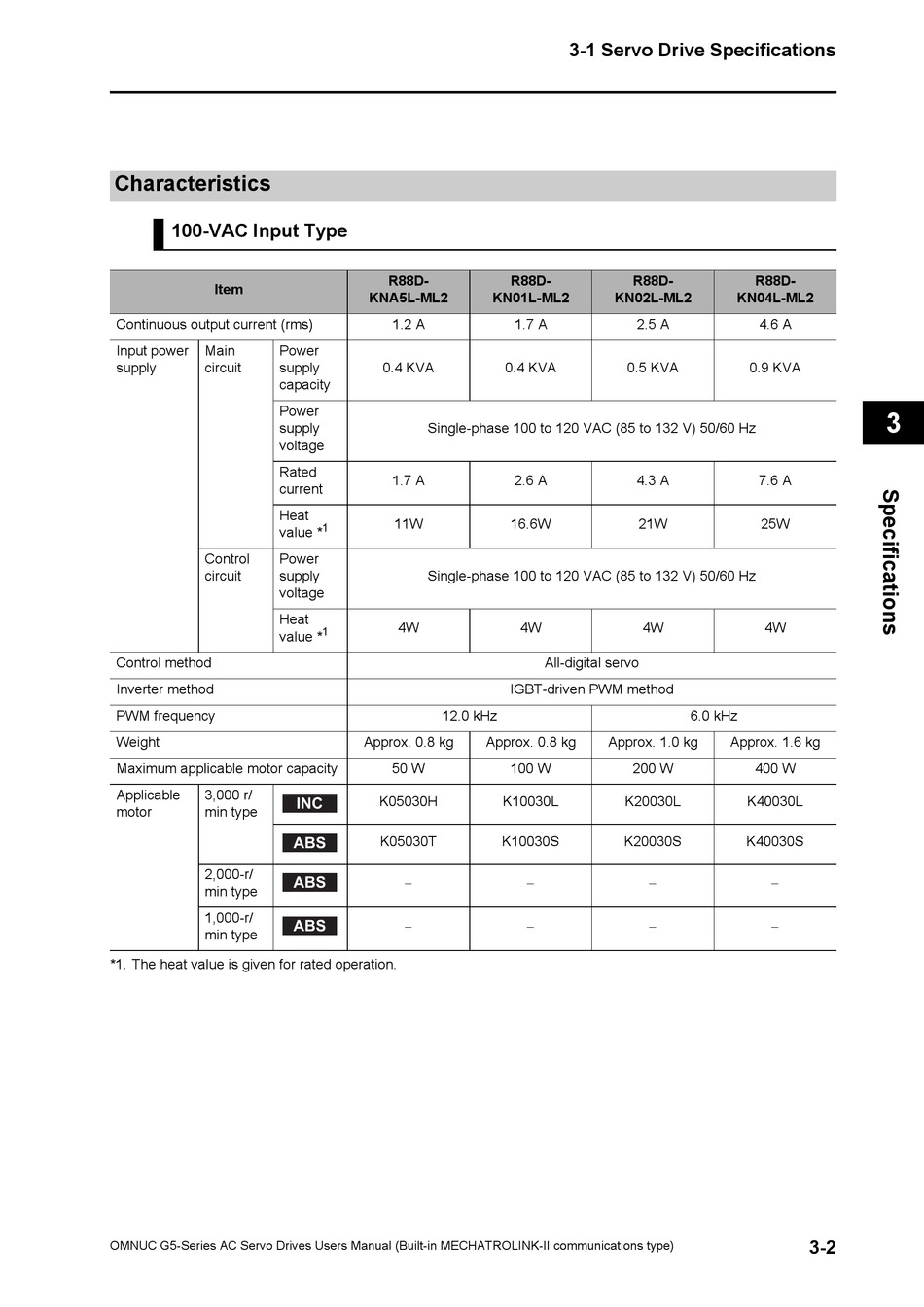

3-1 Servo Drive Specifications
R88D- R88D-
KN01L-ML2 KN02L-ML2
1.7 A 2.5 A
0.4 KVA 0.5 KVA
2.6 A 4.3 A
16.6W 21W
4W 4W
All-digital servo
IGBT-driven PWM method
Approx. 0.8 kg Approx. 1.0 kg
100 W 200 W
K10030L K20030L
K10030S K20030S
 
 
R88D-
KN04L-ML2
4.6 A
0.9 KVA
7.6 A
25W
4W
6.0 kHz
Approx. 1.6 kg
400 W
K40030L
K40030S


