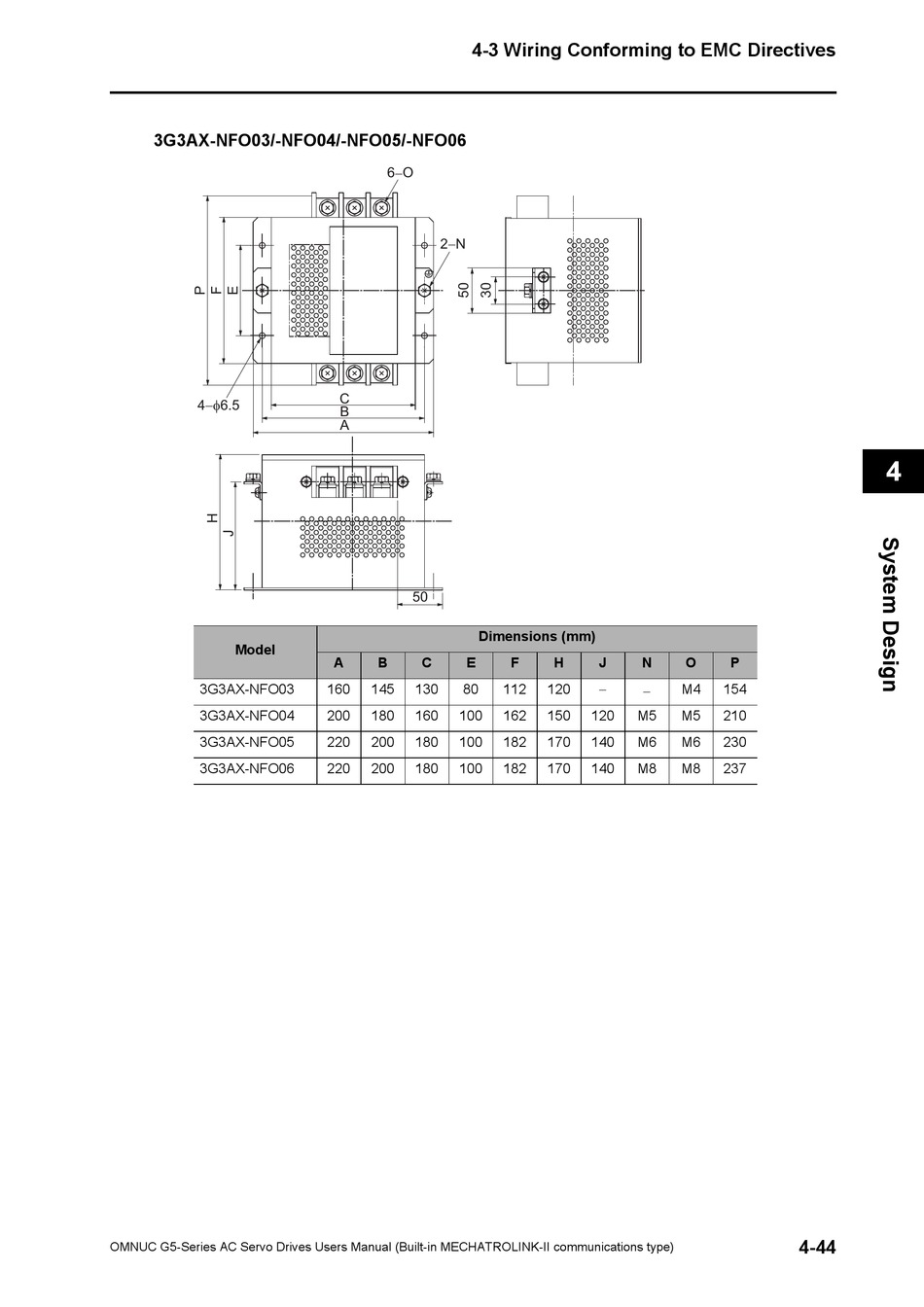

3G3AX-NFO03/-NFO04/-NFO05/-NFO06
4−φ6.5
Model
3G3AX-NFO03
3G3AX-NFO04
3G3AX-NFO05
3G3AX-NFO06
OMNUC G5-Series AC Servo Drives Users Manual (Built-in MECHATROLINK-II communications type)
4-3 Wiring Conforming to EMC Directives
6−O
2−N
C
B
A
50
Dimensions (mm)
A B C E
160 145 130 80
200 180 160 100
220 200 180 100
220 200 180 100
F H J N

112 120

162 150 120 M5
182 170 140 M6
182 170 140 M8
O P
M4 154
M5 210
M6 230
M8 237
4-44
