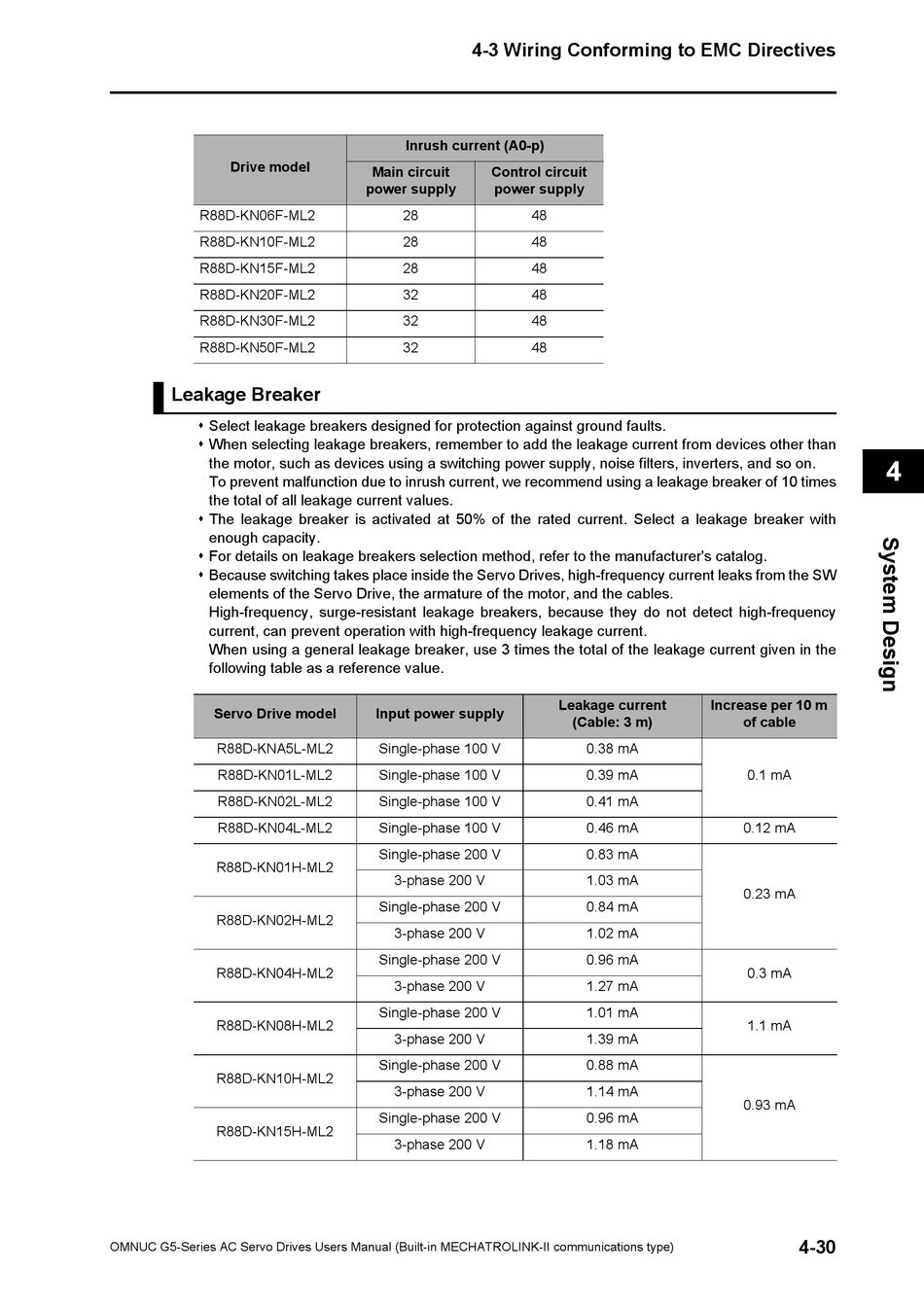

Omron R88D-KN ML2 Sries User Manual page 209

Drive model
R88D-KN06F-ML2
R88D-KN10F-ML2
R88D-KN15F-ML2
R88D-KN20F-ML2
R88D-KN30F-ML2
R88D-KN50F-ML2
Leakage Breaker
 Select leakage breakers designed for protection against ground faults.
 When selecting leakage breakers, remember to add the leakage current from devices other than
the motor, such as devices using a switching power supply, noise filters, inverters, and so on.
To prevent malfunction due to inrush current, we recommend using a leakage breaker of 10 times
the total of all leakage current values.
 The leakage breaker is activated at 50% of the rated current. Select a leakage breaker with
enough capacity.
 For details on leakage breakers selection method, refer to the manufacturer's catalog.
 Because switching takes place inside the Servo Drives, high-frequency current leaks from the SW
elements of the Servo Drive, the armature of the motor, and the cables.
High-frequency, surge-resistant leakage breakers, because they do not detect high-frequency
current, can prevent operation with high-frequency leakage current.
When using a general leakage breaker, use 3 times the total of the leakage current given in the
following table as a reference value.
Servo Drive model
R88D-KNA5L-ML2
R88D-KN01L-ML2
R88D-KN02L-ML2
R88D-KN04L-ML2
R88D-KN01H-ML2
R88D-KN02H-ML2
R88D-KN04H-ML2
R88D-KN08H-ML2
R88D-KN10H-ML2
R88D-KN15H-ML2
OMNUC G5-Series AC Servo Drives Users Manual (Built-in MECHATROLINK-II communications type)
4-3 Wiring Conforming to EMC Directives
Inrush current (A0-p)
Main circuit Control circuit
power supply power supply
28 48
28 48
28 48
32 48
32 48
32 48
Input power supply
Single-phase 100 V
Single-phase 100 V
Single-phase 100 V
Single-phase 100 V
Single-phase 200 V
3-phase 200 V
Single-phase 200 V
3-phase 200 V
Single-phase 200 V
3-phase 200 V
Single-phase 200 V
3-phase 200 V
Single-phase 200 V
3-phase 200 V
Single-phase 200 V
3-phase 200 V
Leakage current Increase per 10 m
(Cable: 3 m)
0.38 mA
0.39 mA
0.41 mA
0.46 mA
0.83 mA
1.03 mA
0.84 mA
1.02 mA
0.96 mA
1.27 mA
1.01 mA
1.39 mA
0.88 mA
1.14 mA
0.96 mA
1.18 mA
4
of cable
0.1 mA
0.12 mA
0.23 mA
0.3 mA
1.1 mA
0.93 mA
