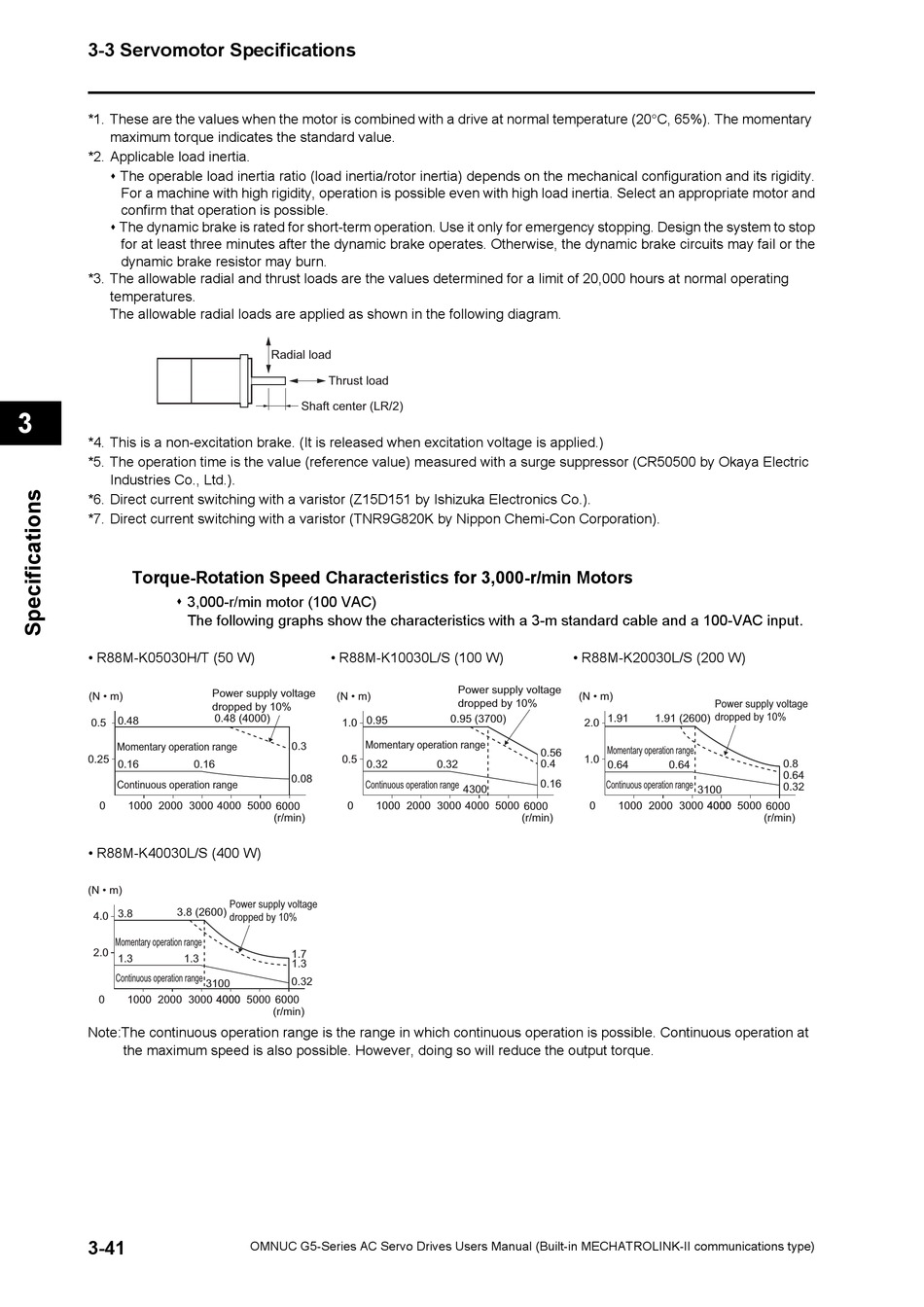

3-3 Servomotor Specifications
*1. These are the values when the motor is combined with a drive at normal temperature (20C, 65%). The momentary
maximum torque indicates the standard value.
*2. Applicable load inertia.
 The operable load inertia ratio (load inertia/rotor inertia) depends on the mechanical configuration and its rigidity.
For a machine with high rigidity, operation is possible even with high load inertia. Select an appropriate motor and
confirm that operation is possible.
 The dynamic brake is rated for short-term operation. Use it only for emergency stopping. Design the system to stop
for at least three minutes after the dynamic brake operates. Otherwise, the dynamic brake circuits may fail or the
dynamic brake resistor may burn.
*3. The allowable radial and thrust loads are the values determined for a limit of 20,000 hours at normal operating
temperatures.
The allowable radial loads are applied as shown in the following diagram.
3
*4. This is a non-excitation brake. (It is released when excitation voltage is applied.)
*5. The operation time is the value (reference value) measured with a surge suppressor (CR50500 by Okaya Electric
Industries Co., Ltd.).
*6. Direct current switching with a varistor (Z15D151 by Ishizuka Electronics Co.).
*7. Direct current switching with a varistor (TNR9G820K by Nippon Chemi-Con Corporation).
Torque-Rotation Speed Characteristics for 3,000-r/min Motors
 3,000-r/min motor (100 VAC)
The following graphs show the characteristics with a 3-m standard cable and a 100-VAC input.
• R88M-K05030H/T (50 W)
(N • m)
0.48
0.5
Momentary operation range
0.25
0.16
Continuous operation range
0 1000 2000 3000 4000
• R88M-K40030L/S (400 W)
(N • m)
3.8 (2600)
4.0 3.8
Momentary operation range
2.0
1.3 1.3
Continuous operation range
0 1000 2000 3000 4000
Note:The continuous operation range is the range in which continuous operation is possible. Continuous operation at
the maximum speed is also possible. However, doing so will reduce the output torque.
3-41
Radial load
Thrust load
Shaft center (LR/2)
• R88M-K10030L/S (100 W)
Power supply voltage
(N • m)
dropped by 10%
0.48 (4000)
1.0 0.95
Momentary operation range
0.3
0.5
0.16 0.32
0.08
Continuous operation range
5000 0
6000
(r/min)
Power supply voltage
dropped by 10%
1.7
1.3
0.32
3100
4000 5000 6000
(r/min)
OMNUC G5-Series AC Servo Drives Users Manual (Built-in MECHATROLINK-II communications type)
Power supply voltage
dropped by 10%
0.95 (3700)
0.56
0.4
0.32
0.16
4300
1000 2000 3000 4000 5000
6000
(r/min)
• R88M-K20030L/S (200 W)
(N • m)
Power supply voltage
dropped by 10%
2.0 1.91 1.91 (2600)
Momentary operation range
1.0
0.64 0.64
Continuous operation range
3100
0 1000 2000 3000 4000 4000 5000
0.8
0.64
0.32
6000
(r/min)
