Dosimag IO-Link
Endress+Hauser

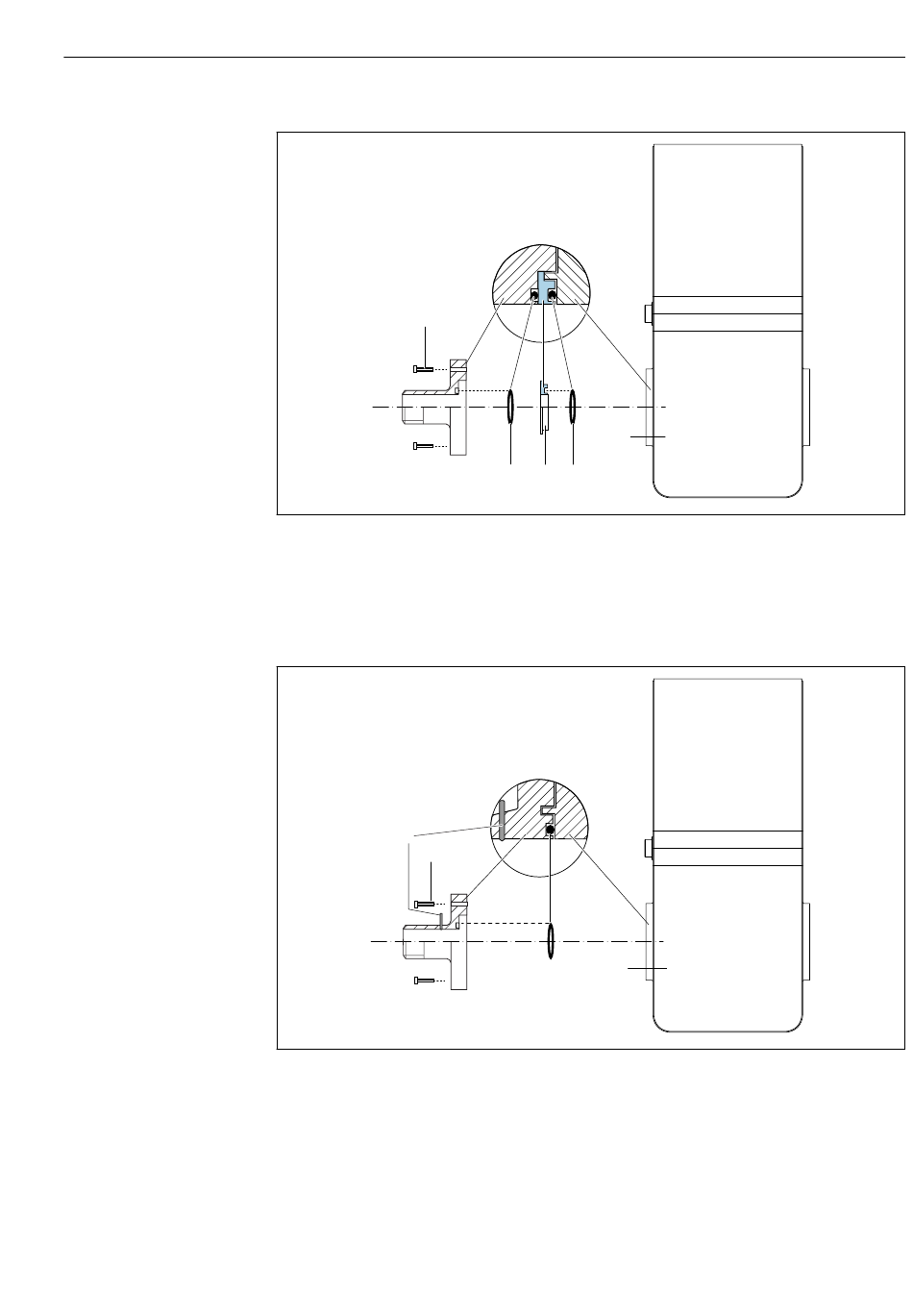

Potential equalization via additional grounding ring
1
1
Hexagonal-headed bolts of process connection
2
O-ring seals
3
Plastic disk (spacer) or grounding ring
4
Measuring instrument
Potential equalization via grounding electrodes on process connection
2
1
1
Hexagonal-headed bolts of process connection
2
Integrated grounding electrodes
3
O-ring seal
4
Measuring instrument
7.5
Ensuring the degree of protection
The measuring device fulfills all the requirements for IP67 degree of protection, Type 4X
enclosure.
4
2
3
2
4
3
Electrical connection
A0053324
A0053325
29
