Introduction

Package Checklist

The Dual-band Outdoor Access Point / Bridge package includes:
• One Wireless Dual-band Access Point (SMC2890W-AG or SMC2891W-AG)
• One Category 5e network PoE cable, length 98 ft (30 m)
• One power injector module and power cord 5.9 ft (1.8 m)
• One RS232 console cable 5.9ft (1.8 m)
• Outdoor pole- and wall-mounting bracket kit
• User Guide CD
Inform your dealer if there are any incorrect, missing or damaged parts. If possible,
retain the carton, including the original packing materials. Use them again to repack
the product in case there is a need to return it.

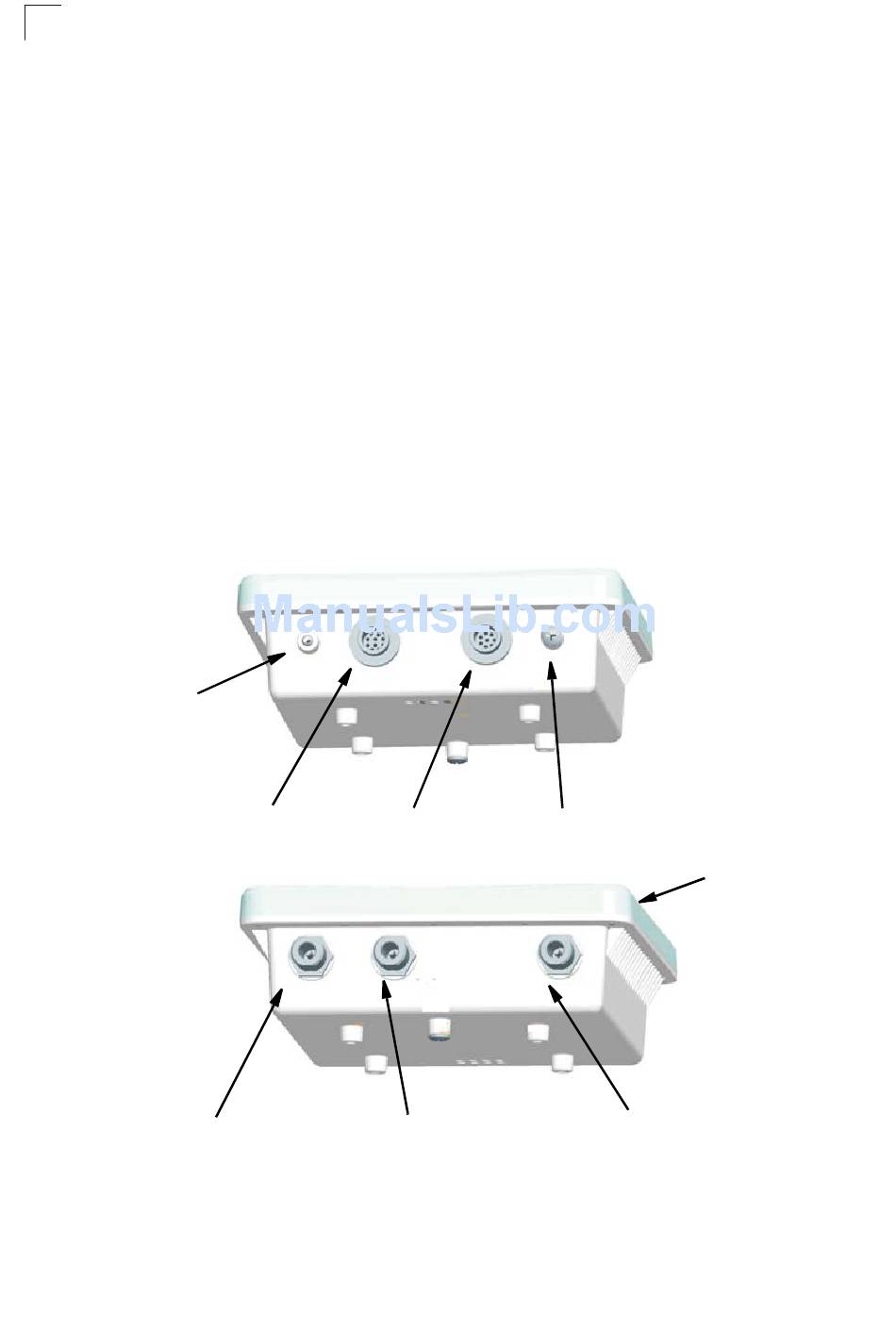

Hardware Description

Bottom View
(both models)
Console Port
CoverAttachment
Console Port
Top View
(SMC2891W-AG)
N-Type External
Antenna Connector
(2.4 GHz)
1-2
Ethernet/PoE Water-Tight Test Point
Connector (DO NOT REMOVE)
N-Type External
Antenna Connector
(5 GHz)
Integrated Antenna
N-Type External
Antenna Connector
(2.4 GHz)
