6
Radio Interface
Radio Settings A (802.11a)
The IEEE 802.11a interface operates within the 5 GHz band, at up to 54 Mbps in
normal mode or up to 108 Mbps in Turbo mode.
First configure the radio settings that apply to the individual VAPs (Virtual Access
Point) and the common radio settings that apply to the overall system. After you
have configured the radio settings, go to the Security page under the 802.a Interface
(See "Security" on page 6-70), enable the radio service for any of the VAP
interfaces, and then set an SSID to identify the wireless network service provided by
each VAP. Remember that only clients with the same SSID can associate with a
VAP.
Note: You must first enable VAP interface 0 before the other interfaces can be enabled.

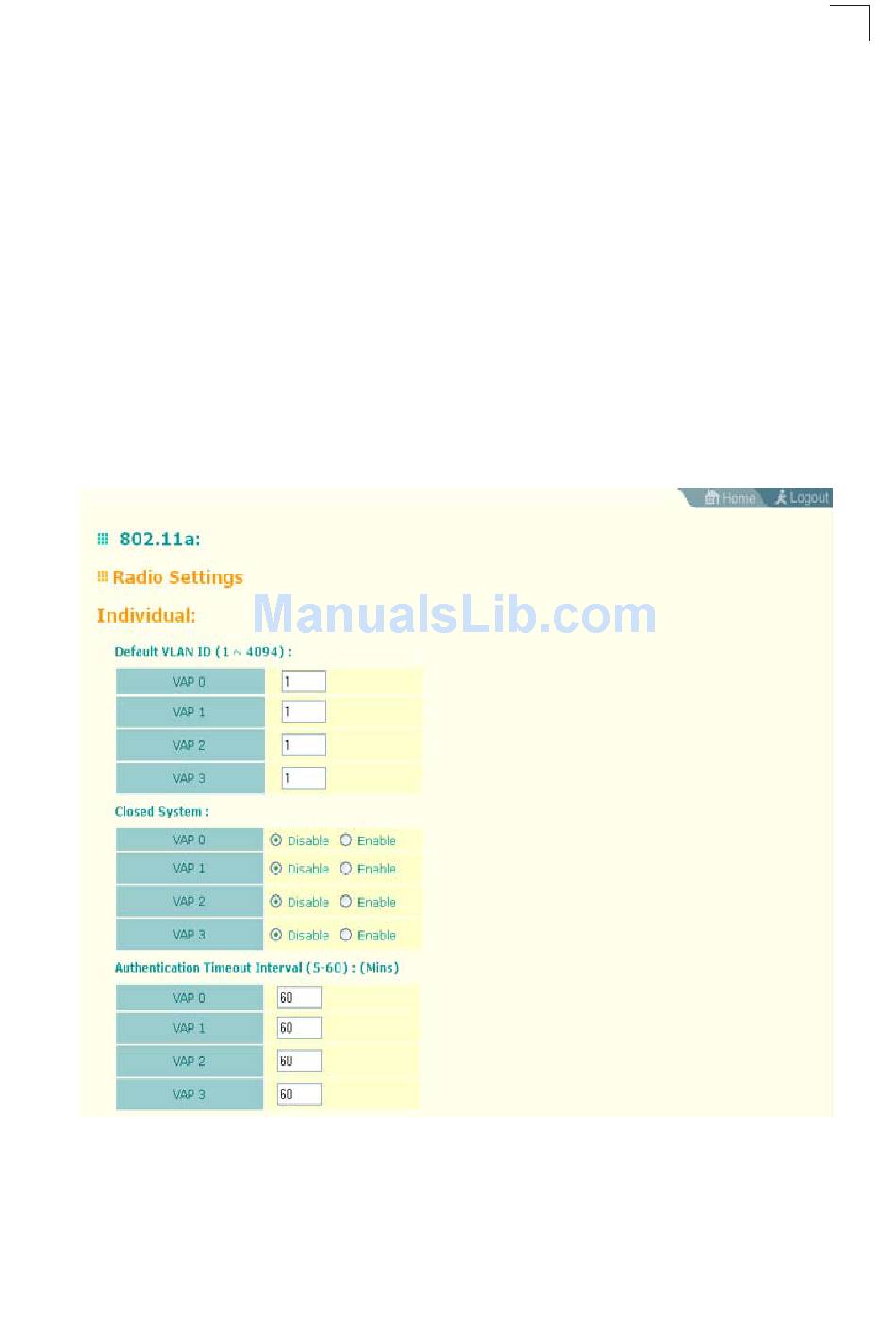

Configuring VAP Radio Settings
To configure VAP radio settings, select the Radio Settings page.
6-53
