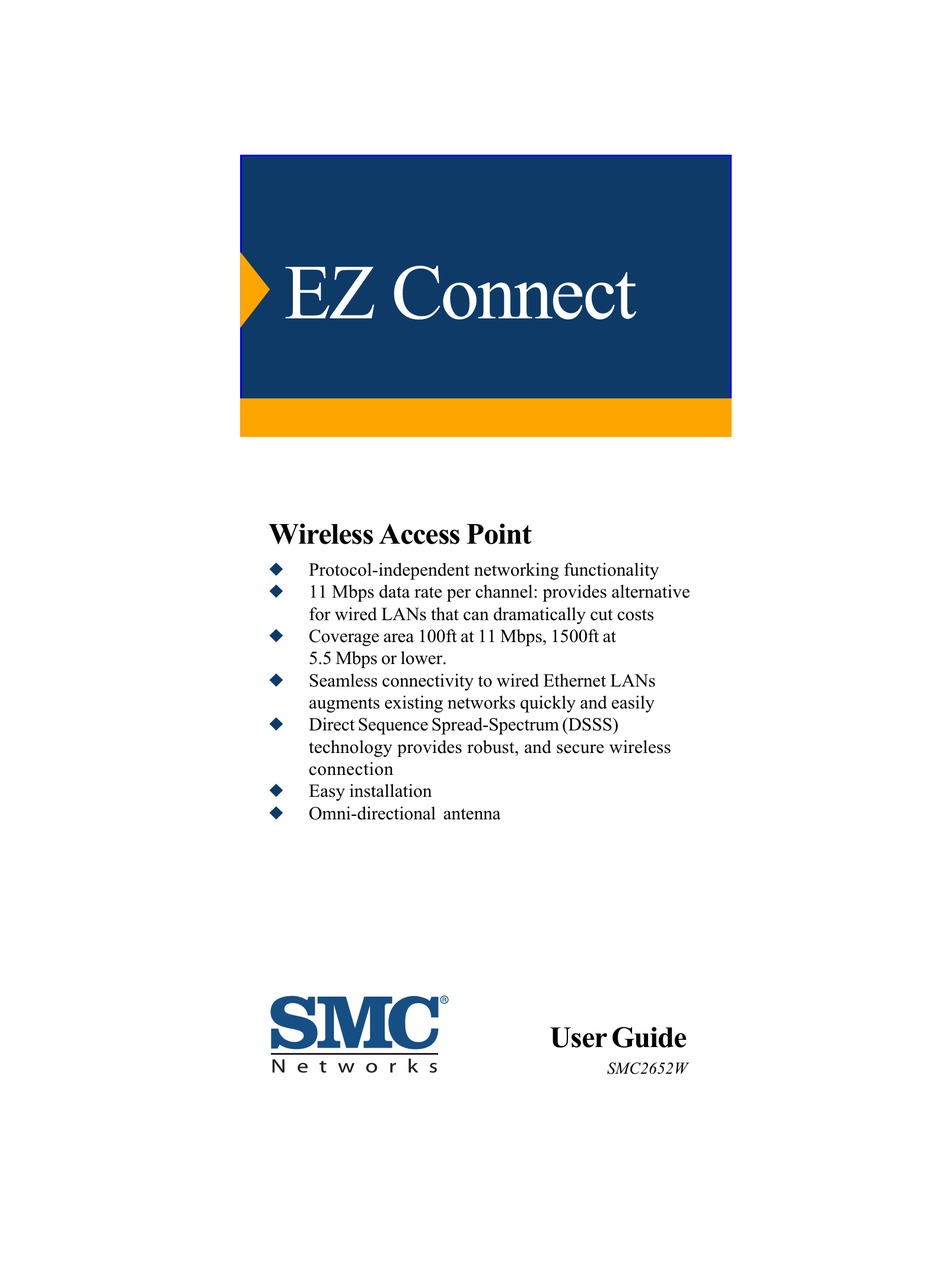

EZ Connect
Wireless Access Point
u
Protocol-independent networking functionality
u
11 Mbps data rate per channel: provides alternative
for wired LANs that can dramatically cut costs
u
Coverage area 100ft at 11 Mbps, 1500ft at
5.5 Mbps or lower.
u
Seamless connectivity to wired Ethernet LANs
augments existing networks quickly and easily
u
Direct Sequence Spread-Spectrum (DSSS)
technology provides robust, and secure wireless
connection
u
Easy installation
u
Omni-directional antenna
User Guide
SMC2652W
