Polycom MGC-100 Getting Started Manual page 33

COM 1

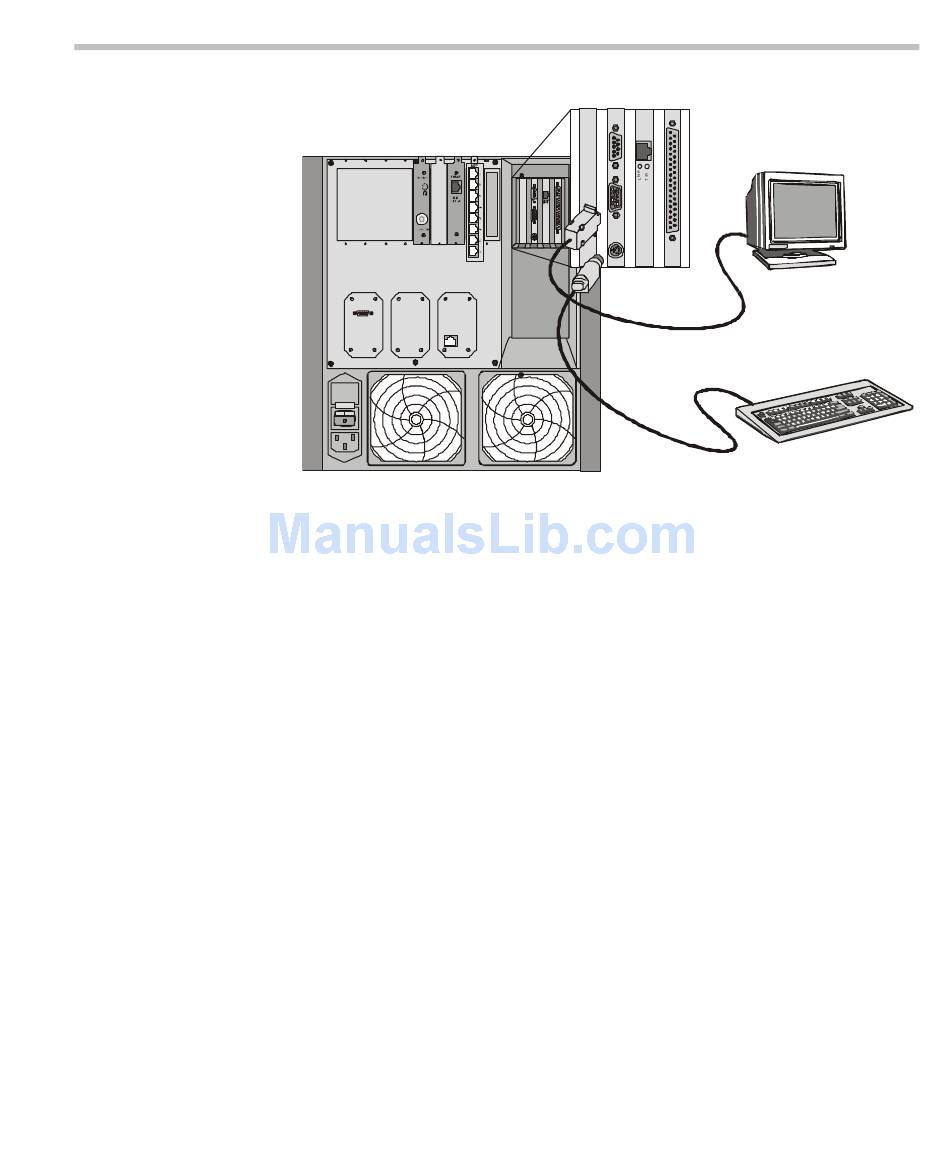

Figure 3-4: MGC-50
3. Insert the DOS diskette into the MCU diskette drive.
4. Reset the MCU (by turning it off and then on), or if it is turned off, turn it
on. The command line is displayed.
5. Type C:\>dir mcu\cfg and press Enter.
6. Type C:\>\mcu\cfg>edit lan.cfg and press Enter.
The Edit screen opens displaying the IP configuration parameters.
7. Move the cursor to the appropriate line and enter the new IP Address.
If required, modify the Subnet Mask and the Default Gateway values.
8. Save the new IP configuration and exit the DOS editor.
9. Disconnect the monitor and keyboard from the MCU, and mount the
Main Control Module cover back to its place.
10. Restart the MCU.
Chapter 3 - Initial System Configuration
KB0
KB0
LAN
3-3
