Chapter 2 - Hardware Description

MGC-100 Components Location

Main
Control
Module
CONT
Critical
Major
Minor
L0
Power
L1
L2
L3
PWR
IN OUT
Disk Drive
COM Port
2-2
Figure 4-1 shows the front panel of the MGC-100. The front panel provides
access to the Main Control Module, the Functional Modules, and the Power
Supply Modules. Status LEDs on the Main Control Module, Functional
Modules, and Power Supply Modules indicate the status of the system.
LEDs
NET-8 NET-8 NET-8 E1
ACCORD
Stby Stby Stby Stby
Fail Fail Fail Fail
MGC-100
Active Active Active Active
Line 1 Line 1 Line 1
Line 2 Line 2 Line 2
Line 3 Line 3 Line 3
Line 4 Line 4 Line 4
Line 5 Line 5 Line 5
Line A
Line 6 Line 6 Line 6
Line 7 Line 7 Line 7
Line B
Line 8 Line 8 Line 8
PWR
IN OUT

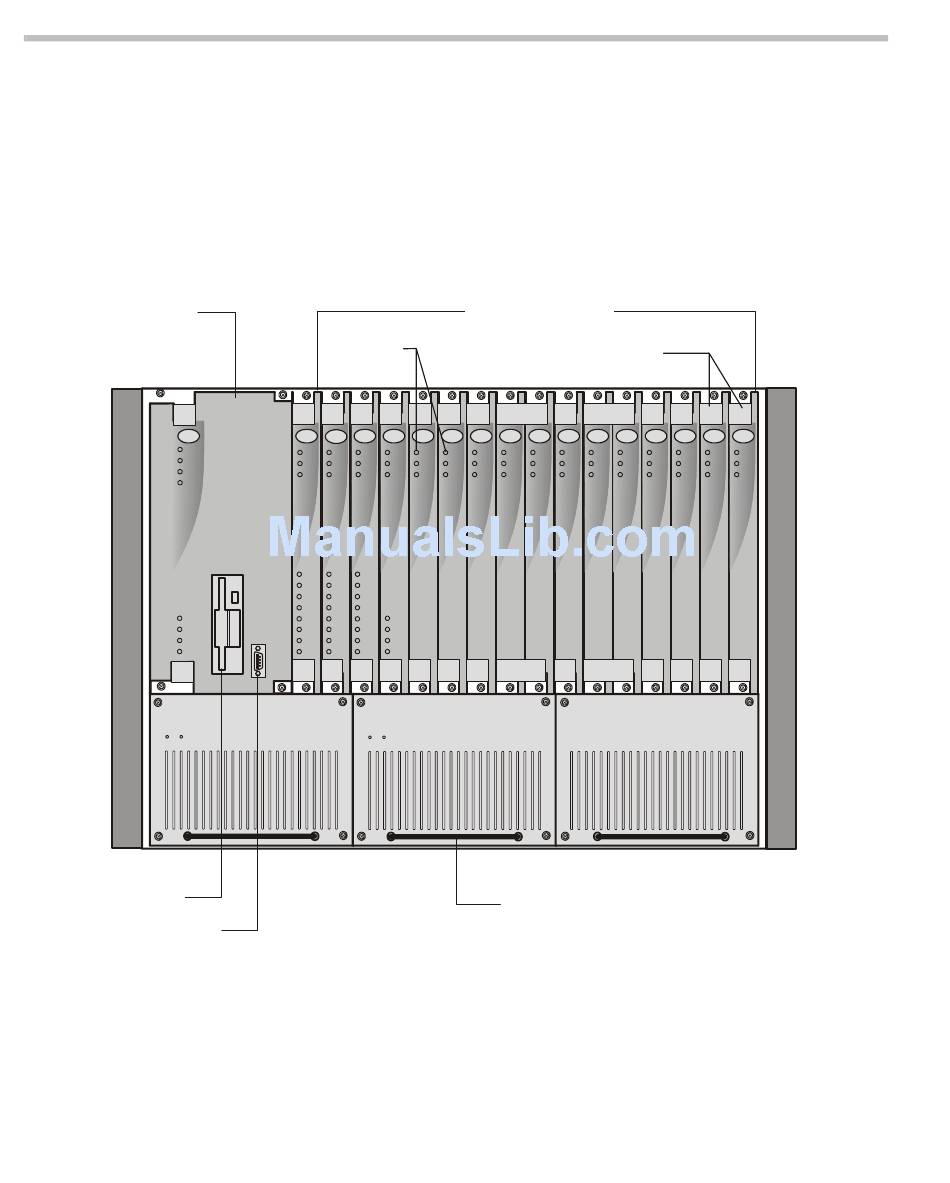

Figure 2-1: MGC-100 front panel
Functional Modules
MUX MUX DATA DATA VIDEO VIDEO VIDEO
Stby Stby Stby Stby Stby Stby Stby
Fail Fail Fail Fail Fail Fail Fail
Active Active Active Active Active Active Active
PWR
IN OUT
Power Supply Module Handle
Ejectors
VIDEO AUDIO AUDIO AUDIO AUDIO
Stby Stby Stby Stby Stby
Fail Fail Fail Fail Fail
Active Active Active Active Active
