Gatekeeper Status Indicators

82
indicator appears on the ISDN check icon. Once the first ISDN line
(line 1) connects, you can make a call.
Once the check is complete, and if the ISDN lines are properly
configured, the indicator disappears. If it does not disappear, you
should check the physical connections and the configuration of the
ISDN lines.

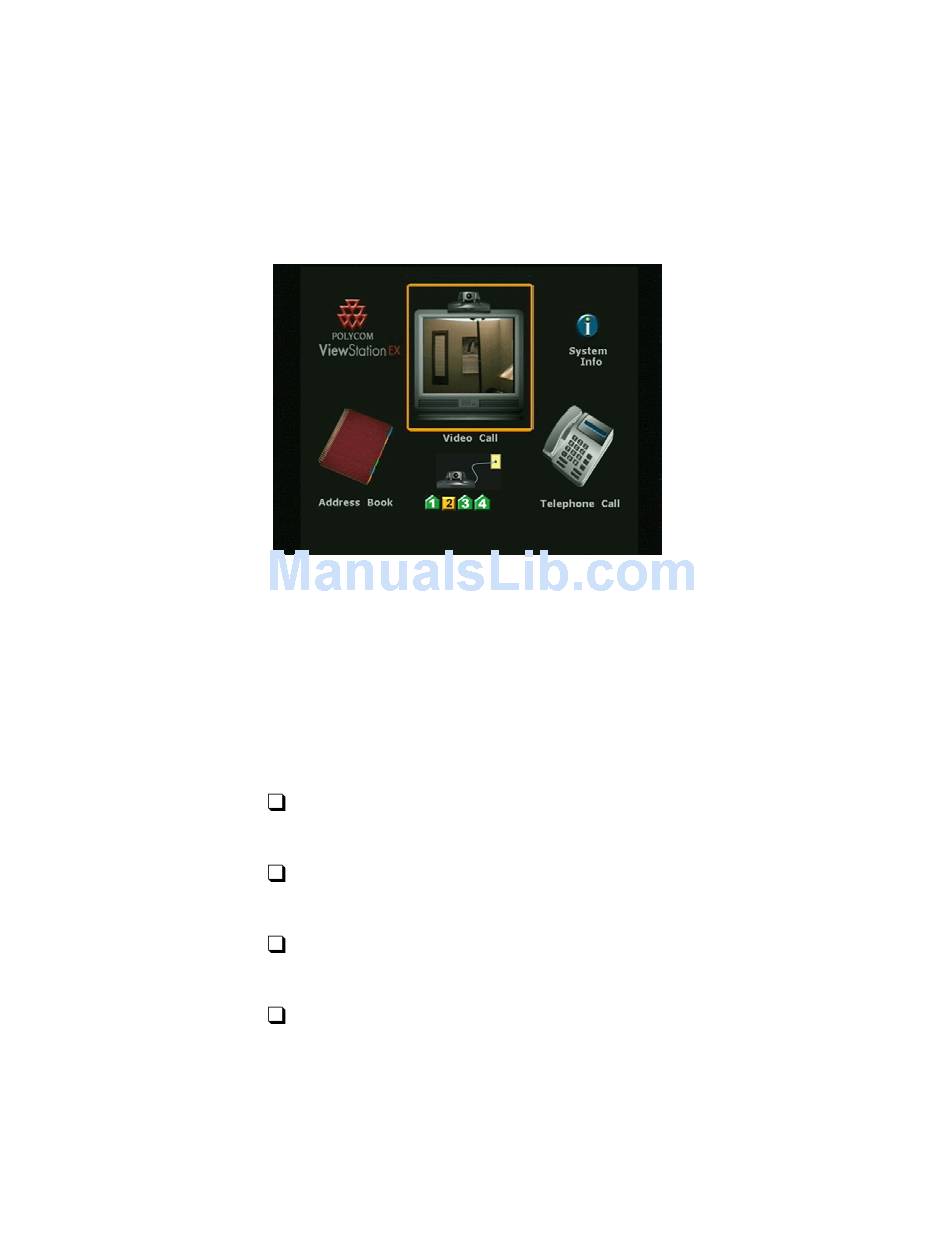

Figure 3-17. Main Screen (showing network conditions)
Depending on the option selected on the Gatekeeper screen, one of
the following status indicators will appear on the main screen every
time you power on your system:
Yellow Icon—The system is currently looking for the
Gatekeeper, but has not found it yet.
Red Icon—The system has detected the Gatekeeper, but it is not
allowed to register with the Gatekeeper.
Green Icon—The system has found the Gatekeeper and it is
registered with the Gatekeeper.
No Icon—No Gatekeeper was specified or set to Off in the
Gateway & Gatekeeper screen (System Info > Admin Setup >
LAN/H.323 > H.323 > Gateway & Gatekeeper).
