Configuring the V.35/RS-449/RS-530 Serial Interface Control Signals
104
connect your equipment to the network interface.
For information about the initial V.35/RS-449/RS-530
configuration screens, see
Network Interface on page
The ViewStation EX is designed to be compatible with the tested
network equipment without any modification needed. However, if
your network equipment varies from the conventional
V.35/RS-449/RS-530 video implementations, use the Advanced
V.35 screen to adjust the operation of many of the signals.
To access this screen:
Select System Info > Admin Setup > Video Network > Advanced
V.35.

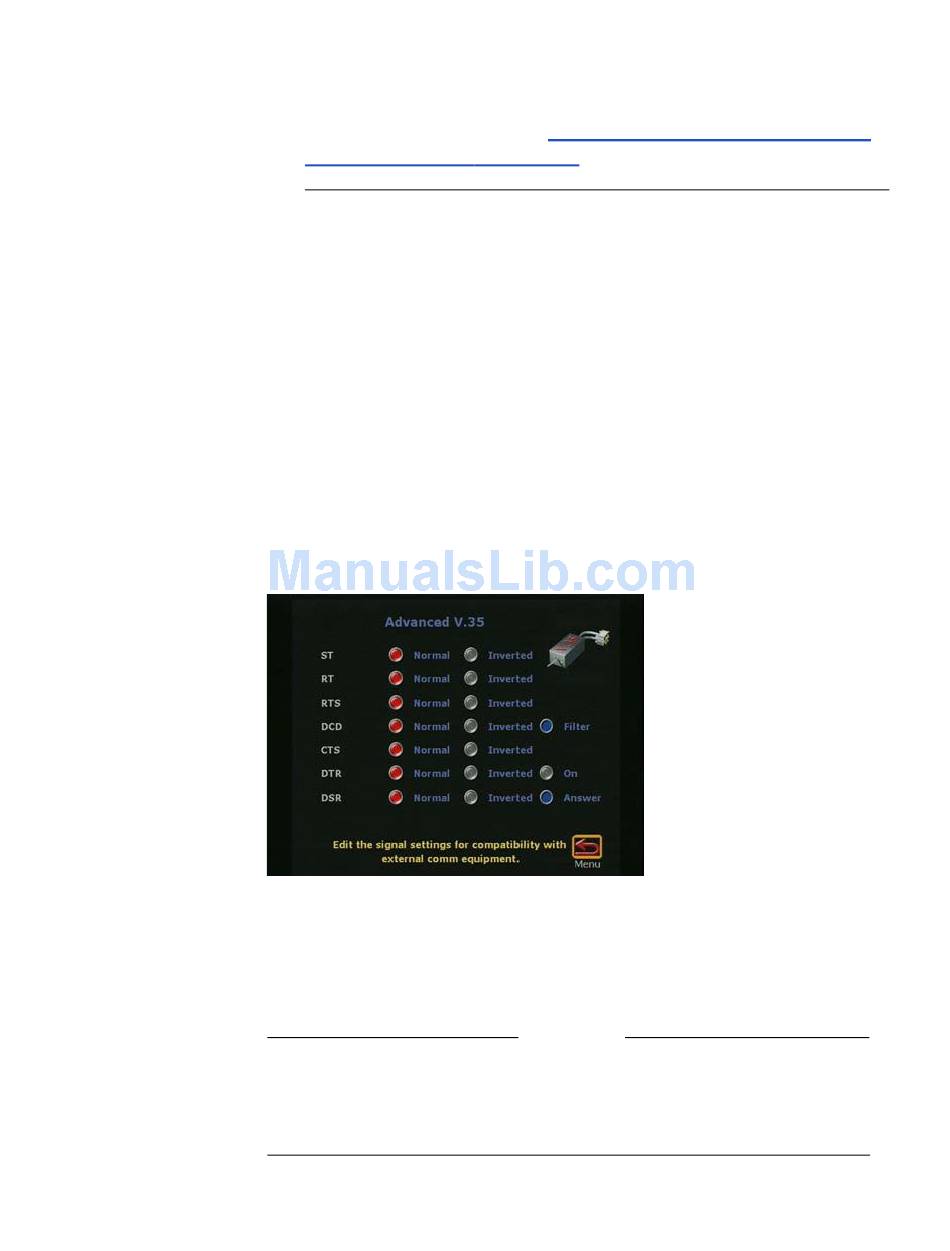

Figure 4-9. Advanced V.35 Screen
The default setting for these signals is Normal. To invert these
signals, select Inverted.
For more detailed information about serial interface control signals,
to the Integrators' Reference Manual for ViewStation EX, ViewStation
FX, and VS4000.
Setup for the V.35/RS-449/RS-530
68.
