VGA Input Calibration

© Polycom, Inc. 2003
2. VCR recording is not supported in 3 and 4 monitor
configurations: to record a videoconference, users need to set
their systems for 2 monitors. VCR recording of images that
appear on the third or fourth monitor is not supported.
This screen is only visible if a Visual Concert FX unit is connected to
the ViewStation EX system.
To access the VGA Input Calibration screen:
Select System Info > Admin Setup > Video/Camera > VGA Input.
The VGA Input Calibration screen appears:

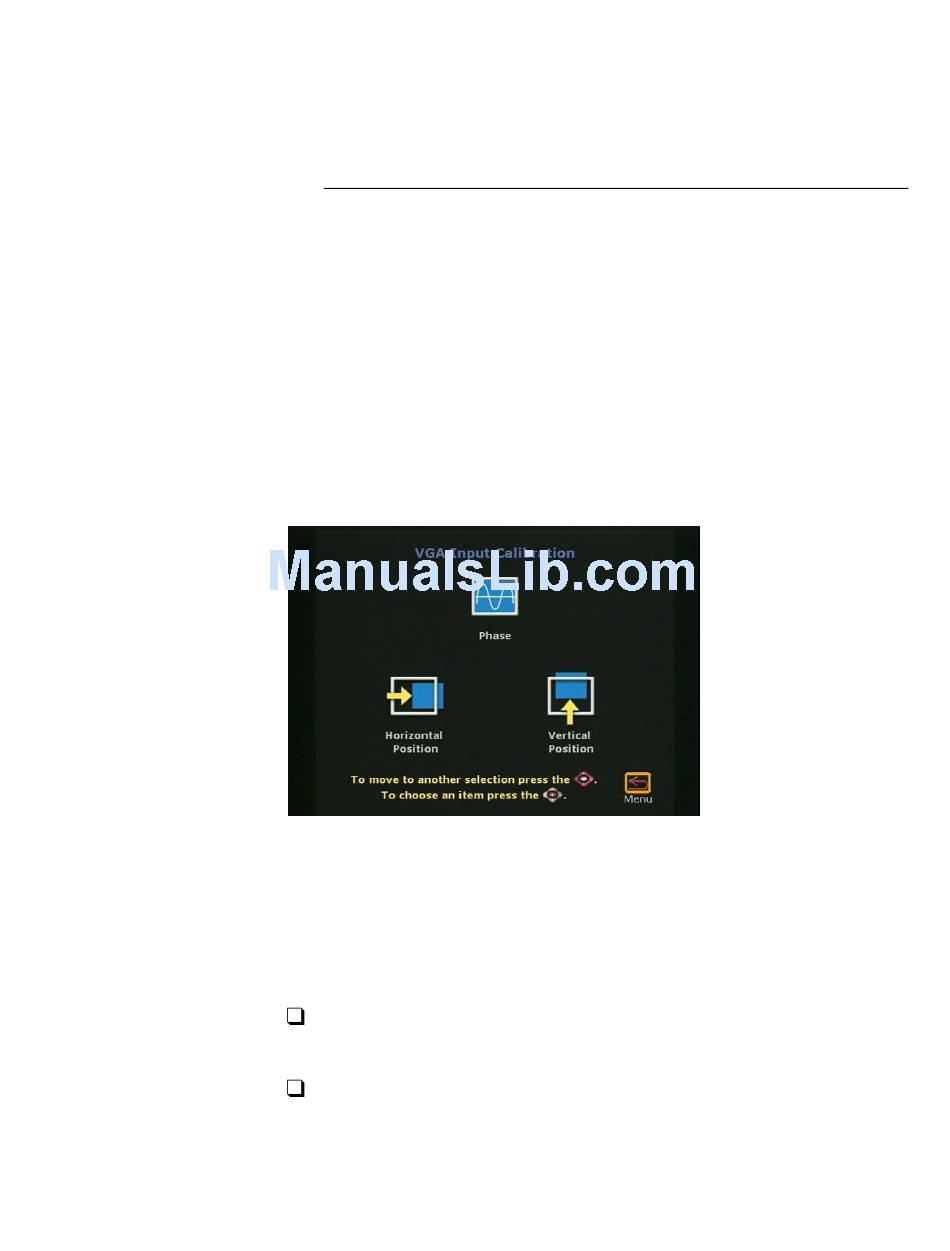

Figure A-7. VGA Input Calibration Screen
Usually, Visual Concert FX can automatically synchronize with the
PC or laptop. However, there are a few instances when it is
necessary to calibrate Visual Concert FX to the PC using the tools on
this screen.
Phase—This option lets you can calibrate the VGA input by
increasing or decreasing the phase.
Horizontal Position—This option lets you calibrate the VGA
input in the horizontal position by setting the calibration frame
to the left or right.
