Figure 2-4 shows the peripheral link (P-LINK) side of the Quad BRI
network interface module that connects to the ViewStation EX
system.

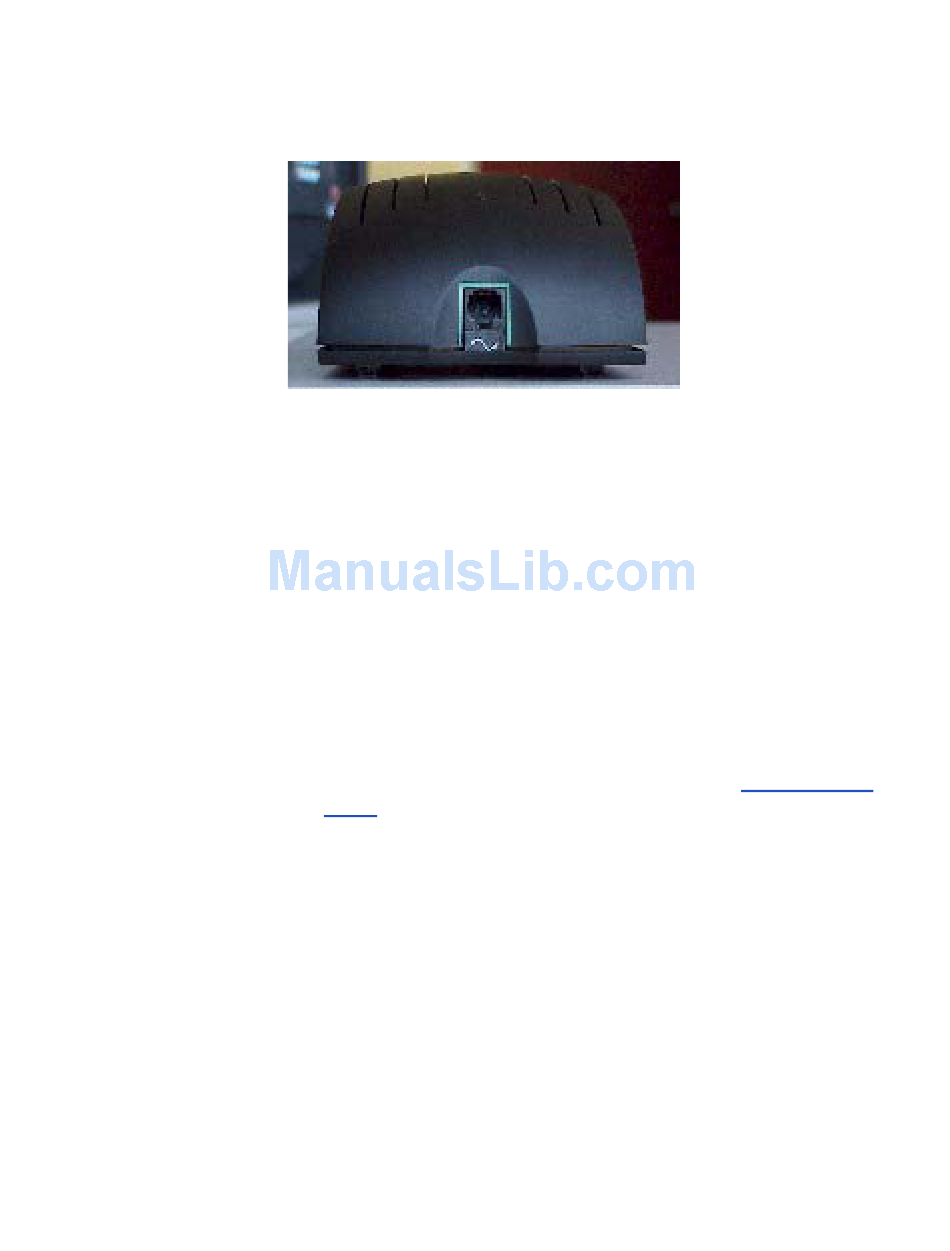

Figure 2-4. Quad BRI Network Interface Module (P-LINK side)
To connect the Quad BRI network interface module to the BRI
network:
1. Attach your RJ-45 network cable(s) from port 1 on your ISDN
BRI network to the connector labeled ISDN S/T on the Quad
BRI network interface module.
2. Power on the television monitor.
3. Power on the system. Once you power up the system, there is a
20-second delay before you see the Polycom logo.
4. Once your interface is properly connected, you are ready to
configure your system. Proceed to chapter 3,
Setup.
Chapter 2 - Installing the ViewStation EX
Initial System
39
