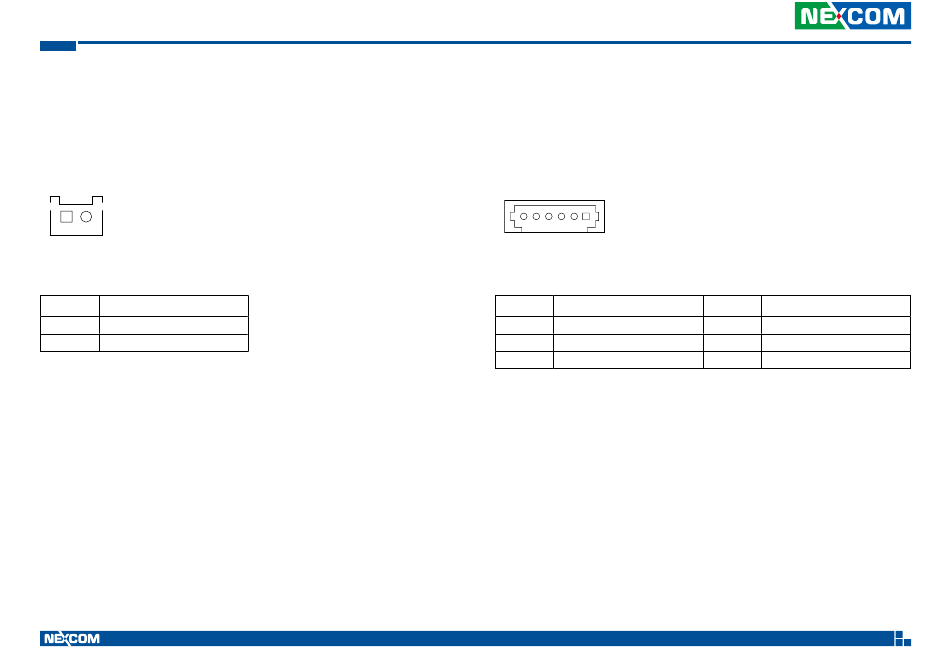

Chapter 3: Jumpers and Connectors
SATA Power Connector
Connector type: 1x2 2-pin header
Connector location: J4
1
2
Pin
Definition
1
VCC5
2
GND
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Internal USB Connector
Connector type: 1x6 6-pin header
Connector location: J6
6
1
Pin
Definition
1
USB2_POWER
3
USBHUB_2PC
5
WLAN1_LED
27
Pin
Definition
2
USBHUB_2N_C
4
GND
6
WLAN1_DIS
VTC 1011 Series User Manual
