Chapter 3: Jumpers and Connectors

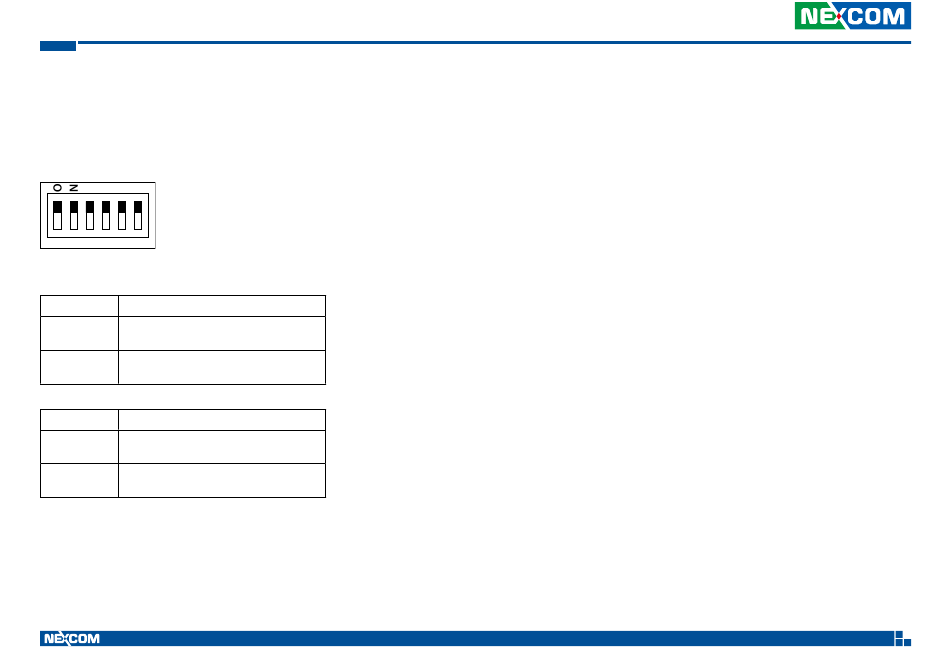

CN9 Wi-Fi LED Select & CN10 Audio PCM TX, RX Switch
Connector type: DIP switch
Connector location: SW7
1 2 3 4 5 6
Pin
Definition
1, 4 ON
Normal WWAN Module PCM
2, 3 OFF
(Default)
1, 4 OFF
Special WWAN Module PCM
2, 3 ON
(MC7430)
Pin
Definition
5 ON
Normal Wi-Fi Module LED
6 OFF
(Default)
5 OFF
Special Wi-Fi Module LED
6 ON
(Inverse)
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
30
VTC 1011 Series User Manual
