Chapter 3: Jumpers and Connectors
Locations of the Jumpers and Connectors
This chapter lists the location and pinout assignment of the jumpers and
connectors on the VTC 1011 series motherboard.

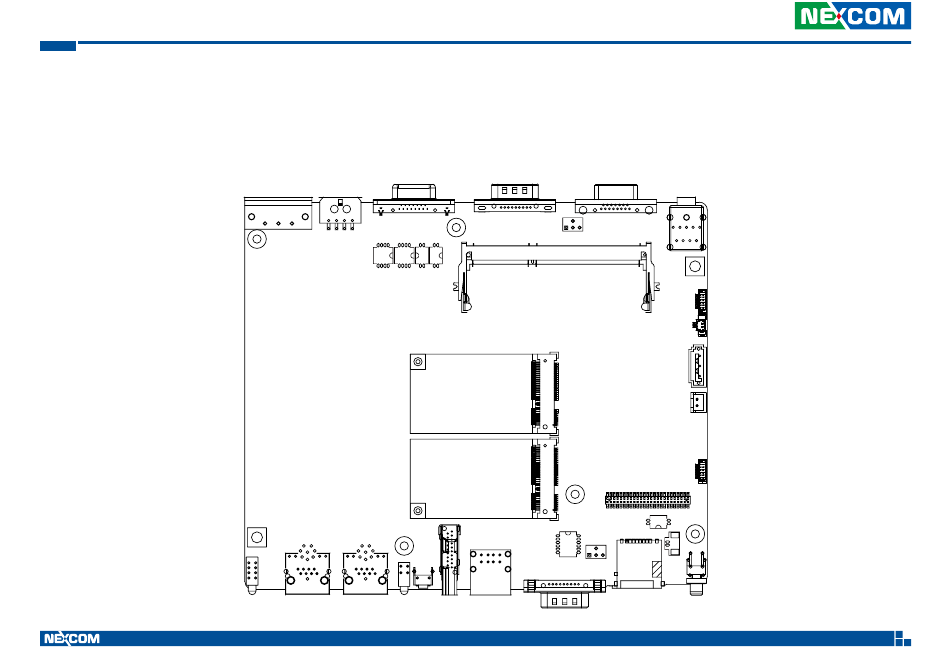

Top View
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
SW3
J1
SW1 SW2
SW4
CN9
CN10
SW7
21
JP2
J2
J3
CN8
J4
J6
JP7
SW6
JP9
J7
VTC 1011 Series User Manual
