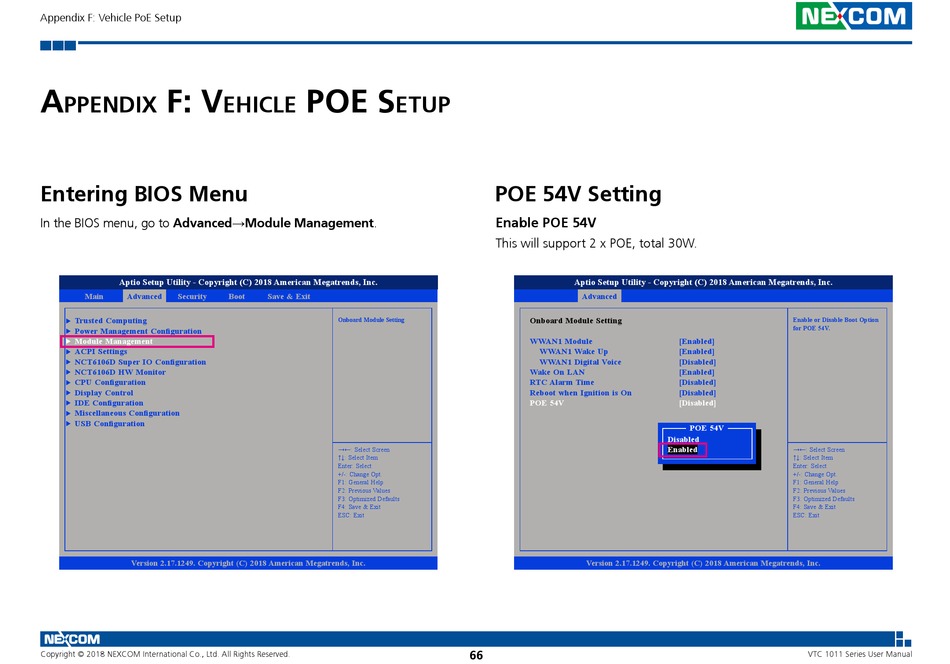

Appendix F: Vehicle PoE Setup

a f: V
PPendIx

Entering BIOS Menu

In the BIOS menu, go to Advanced→Module Management.
Aptio Setup Utility - Copyright (C) 2018 American Megatrends, Inc.
Main Advanced Security
Trusted Computing

Power Management Configuration

Module Management

ACPI Settings

NCT6106D Super IO Configuration

NCT6106D HW Monitor

CPU Configuration

Display Control

IDE Configuration

Miscellaneous Configuration

USB Configuration

Version 2.17.1249. Copyright (C) 2018 American Megatrends, Inc.
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Poe s
ehICle etuP
Boot Save & Exit Save & Exit
Onboard Module Setting
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit

POE 54V Setting

Enable POE 54V
This will support 2 x POE, total 30W.
Aptio Setup Utility - Copyright (C) 2018 American Megatrends, Inc.
Advanced
Onboard Module Setting
WWAN1 Module
WWAN1 Wake Up
WWAN1 Digital Voice
Wake On LAN
RTC Alarm Time
Reboot when Ignition is On
POE 54V
Version 2.17.1249. Copyright (C) 2018 American Megatrends, Inc.
66
Enable or Disable Boot Option
for POE 54V.
[Enabled]
[Enabled]
[Disabled]
[Enabled]
[Disabled]
[Disabled]
[Disabled]
POE 54V
Disabled
Enabled
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
