Chapter 4: System Setup

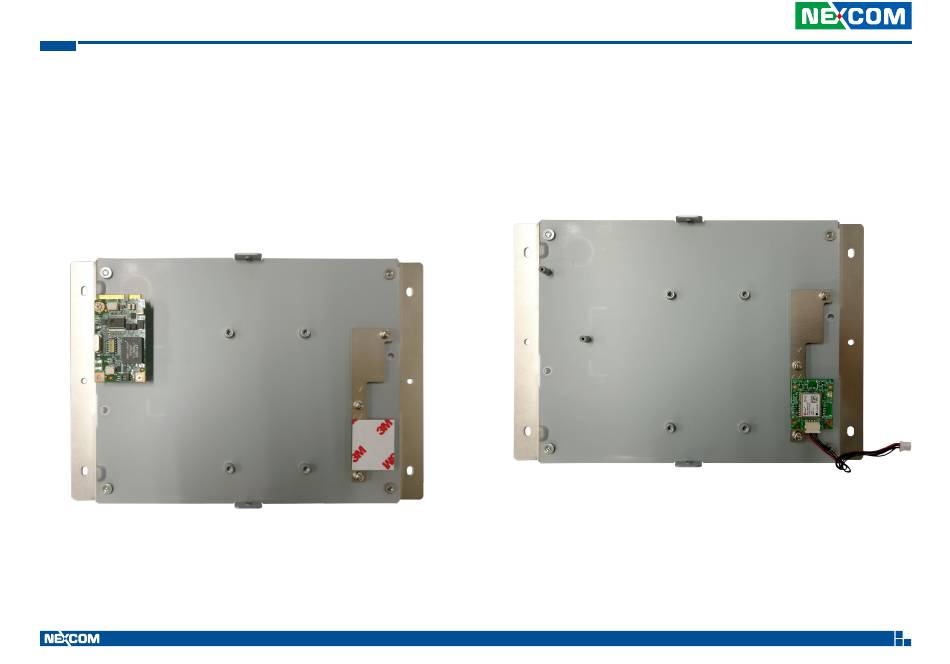

Installing a J1708/J1939 Module
1. Place the module on the bottom case then fasten screws into the mounting
holes to secure the module.
2. Connect the inner cable from the module to the reserved USB wafer (J6)
connector.
3. Please remove the ultraONE+ connector bracket and insert the DB9
connector for the module.
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Installing a GPS Module
1. Place the GPS module on the bottom case then fasten screws into the
mounting holes to secure the module.
2. Connect the inner cable from the GPS module to the GPS wafer (J2)
connector.
37
VTC 1011 Series User Manual
