Appendix A: Software Demo Utility for I/O Ports of Function Control

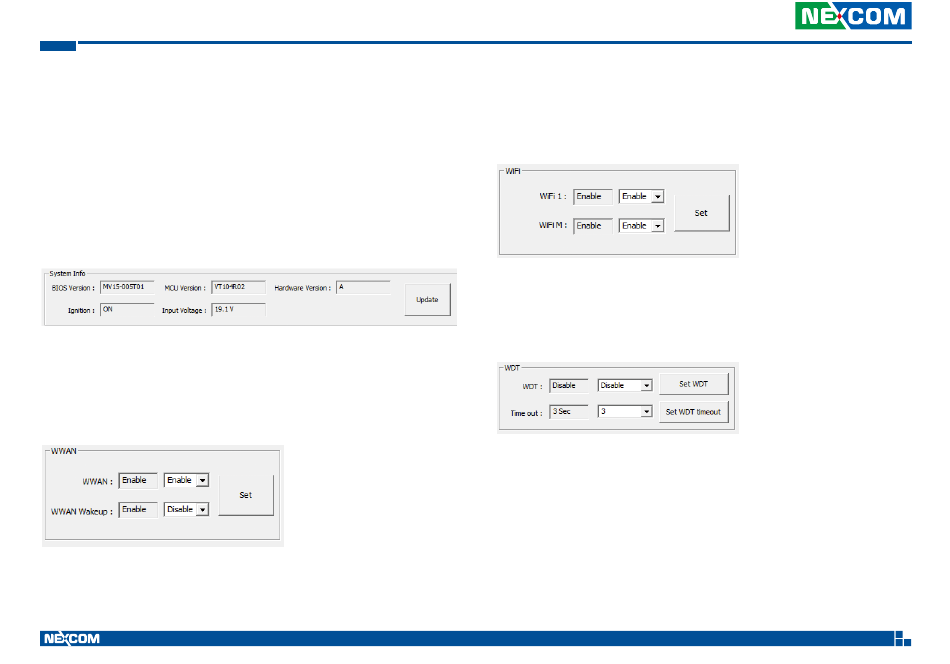

1. Config1

1.1 System Info
BIOS Version: Shows the BIOS Version.
MCU Version: Shows the MCU Version.
Hardware Version: Shows the HW Version.
Ignition: Shows the signal of ignition.
– ON: Signal of ignition is high.
– OFF: Signal of ignition is low.
Input Voltage: Shows the voltage level of power-in.
1.2 WWAN
Enables or disables the WWAN function on CN10 Mini-PCIe socket.
Enables or disables the WWAN wakeup function on CN10 Mini-PCIe socket.
The setting can also be cleared by the Set button.
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
1.3 WiFi
Enables or disables the Wi-Fi module function on CN9 Mini-PCIe socket.
The setting can also be cleared by the Set button.
1.4 WDT
Enables or disables the WDT function. There are several selections of time.
The timer of WDT can also be cleared by the Set WDT Timeout button.
