Chapter 3: Jumpers and Switches

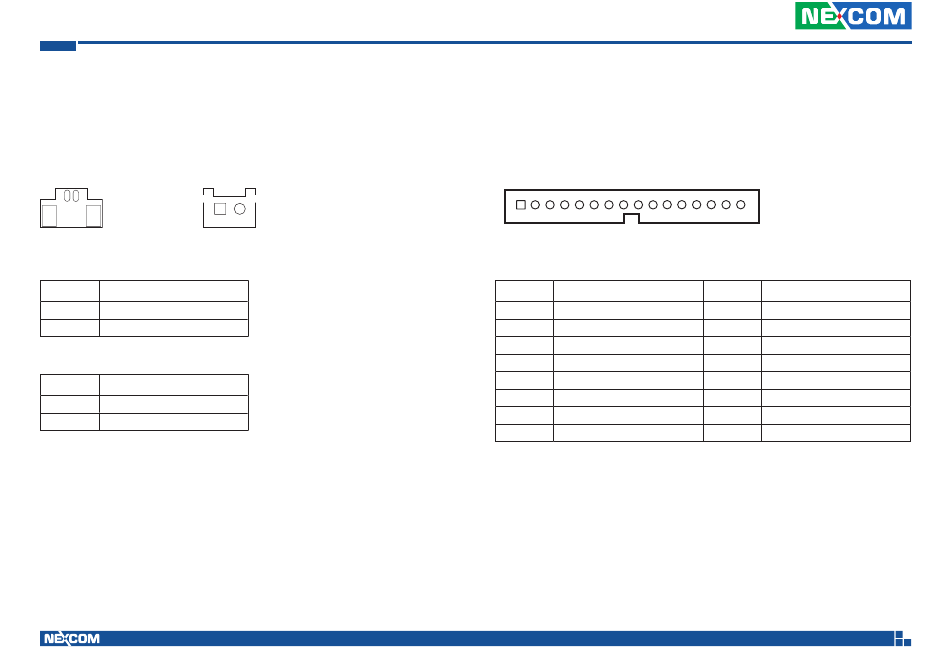

SATA Power Connector

Connector size: 1 x 2 = 2-pin header (J6, 1.25mm; J8, 2.5mm)
Connector location: J6 and J8
1 2
1
J6
J6
Pin Definition
1 GND
2 VCC5
J8
Pin Definition
1 VCC5
2 GND
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
2
J8

VGA

Connector size: 1 x 16 = 16-pin header (1.0mm)
Connector location: J11
1
Pin Definition
1 GND
3 VGA_CLK
5 VGA_VS
7 GND
9 GND
11 VGA_BLUE
13 VGA_GREEN
15 VGA_RED
18
16
Pin Definition
2 VGA_+5V
4 VGA_DATA
6 VGA_HS
8 GND
10 VGA_GND
12 VGA_GND
14 VGA_GND
16 VGA_GND
