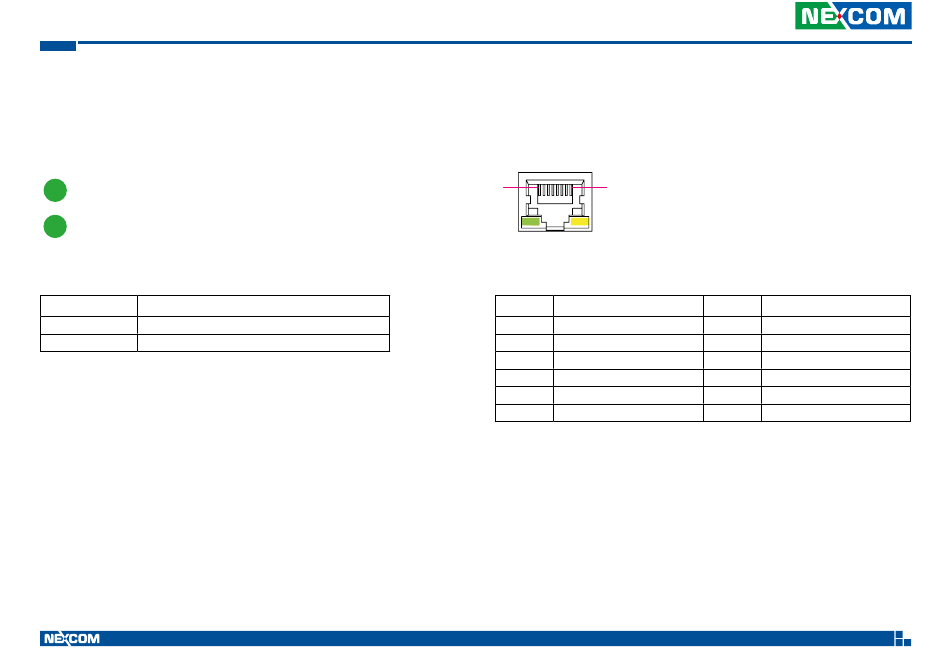

Chapter 2: External Connectors Pinout Description
PoE LED Indicators
Connector number: 7
1
2
LED
PoE1
Light On: Active
PoE2
Light On: Active
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Description
PoE1 and PoE2 Ports
Connector number: 8
1
8
LINK
ACT
Pin
Definition
1
MDI0P
3
MDI1P
5
MDI2N
7
MDI3P
9
LED1-
11
LED2-
13
Pin
Definition
2
MDI0N
4
MDI2P
6
MDI1N
8
MDI3N
10
LED1+
12
LED2+
VTC 1011 Series User Manual
