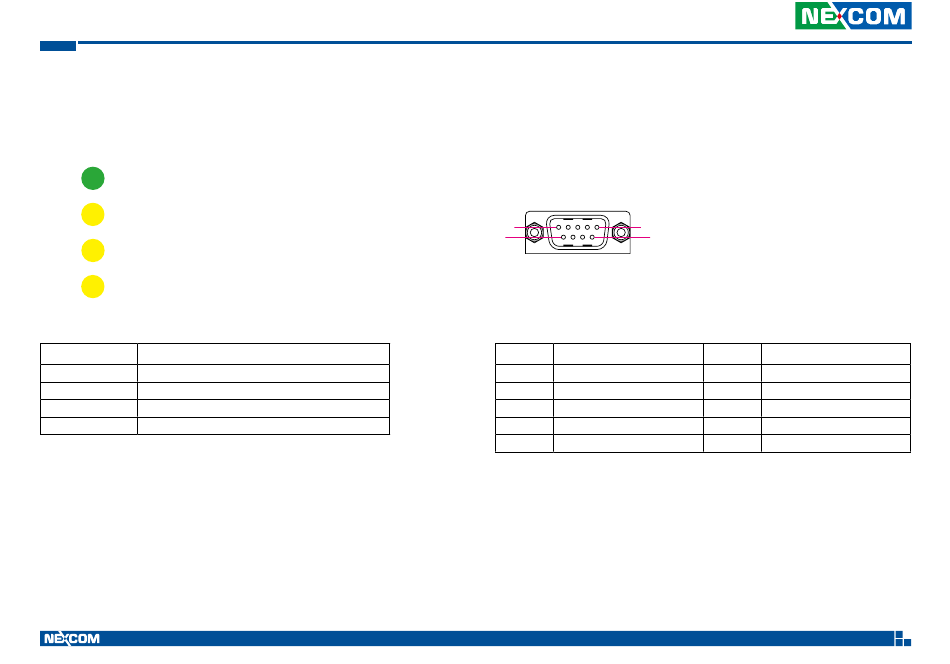

Chapter 2: External Connectors Pinout Description
LED Indicators
Connector number: 9
StatUS
SSD
WLaN
WWaN
LED
Status
Programmable. Power On: Green
SSD
Light On: HDD/SSD Active
WLAN
Blinking: Active
WWAN
Blinking: Active
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Description
ultraONE+ Connector (VTC 1011-C2VK Only)
Connector number: 10
1
5
6
Pin
Definition
1
USB_DATA-
3
ultraONE-
5
24V_VM203
7
ultraONE+
9
VM_GND
14
9
Pin
Definition
2
VMD_UGND
4
LCD_PWR_BTN
6
USB_DATA+
8
NC
VTC 1011 Series User Manual
