Chapter 2: Jumpers and Connectors

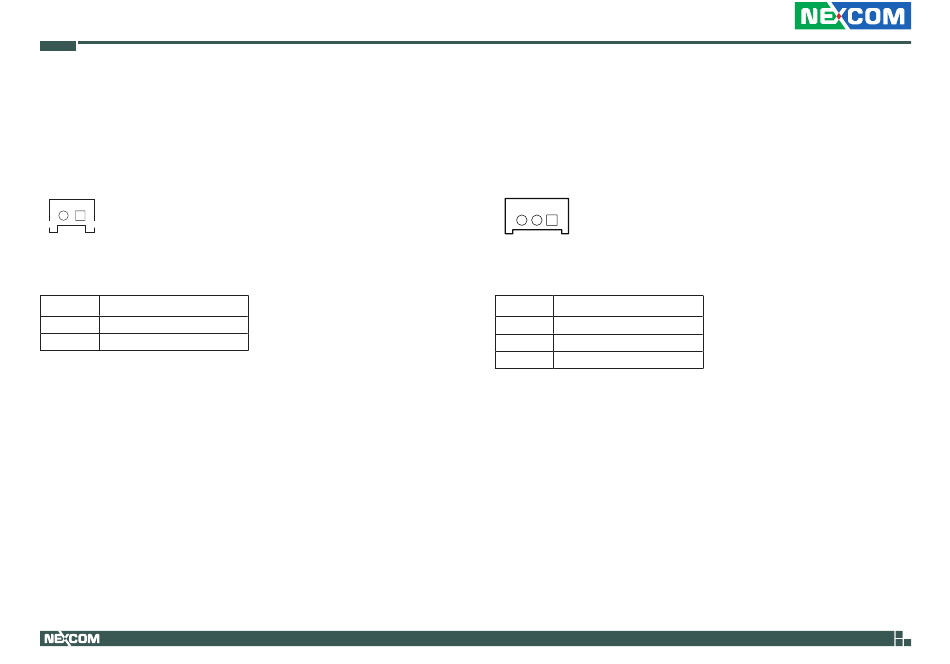

SATA Power Connector
Connector type: 1x2 2-pin header, 2.5mm pitch
Connector location: SATA_PWR1
2
1
Pin
Definition
1
GND
2
VCC5
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Remote Button/S3 Connector
Connector type: 1x3 3-pin header, 2.0mm pitch
Connector location: CN1
3
1
Pin
Definition
1
REMOTE_S3
2
GND
3
PBT_TR_C
21
NISE 51 User Manual
