Chapter 3: Jumpers and Connectors

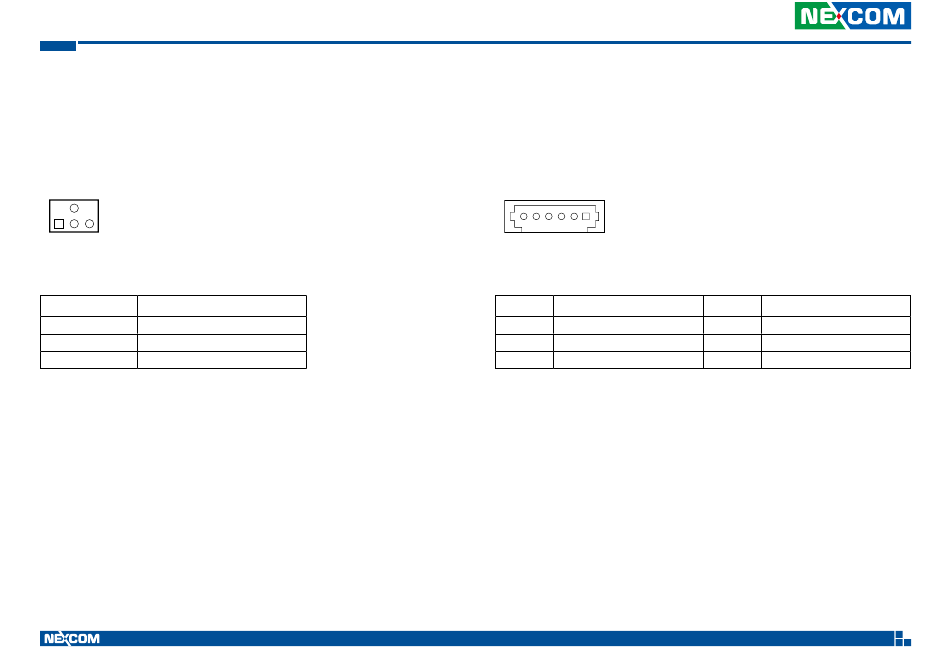

COM1 RI/Power Select
Connector type: 2x3 6-pin header
Connector location: JP2
2
6
1
5
Pin
Definition
3 ~ 4 Short
Support UART RI
1 ~ 3 Short
Support +5V
3 ~ 5 Short
Support +12V
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
GPS Connector
Connector type: 1x6 6-pin header
Connector location: J2
6
1
Pin
Definition
1
GPS_BAT
3
GPS_TX
5
GND
25
Pin
Definition
2
GPS_LED#
4
GPS_RX
6
VCC3_GPS
