Chapter 2: Jumpers and Connectors

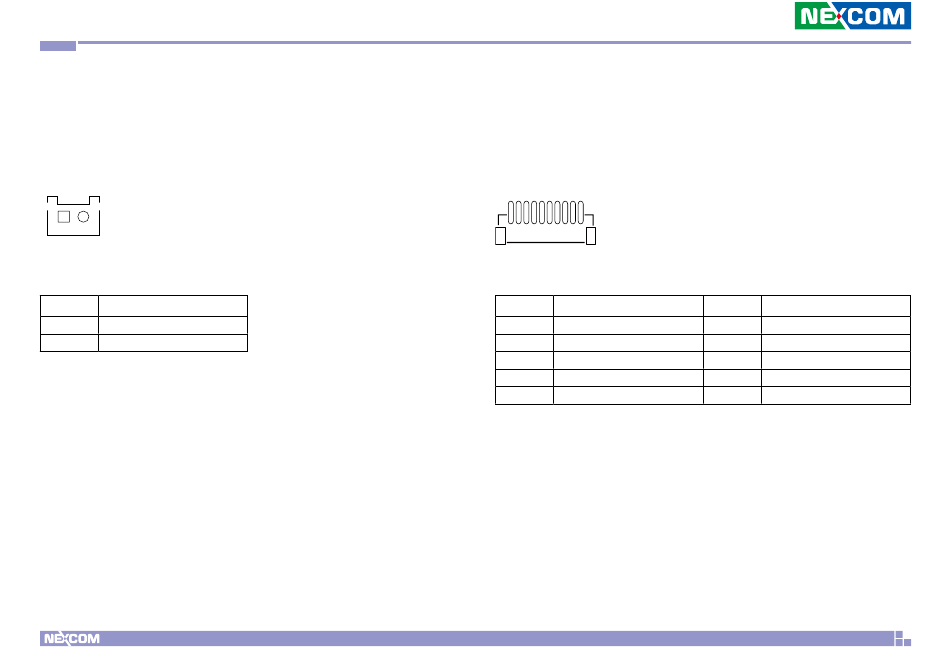

SATA Power Connector

Connector type: 1x2 2-pin header, 2.5mm pitch
Connector location: PWR1
1 2
Pin Definition
1 +5V
2 GND
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.

80 Debug Port Connector

Connector type: 1x10 10-pin header, 1.0mm pitch
1 10
Pin Definition
1 GND
3 EPSI_CLK
5 ESPI_IO3
7 ESPI_IO2
9 ESPI_RST#
21
Pin Definition
2 PLTRST#
4 ESPI_CS#
6 ESPI_IO2
8 ESPI_IO0
10 3.3V
