Chapter 4: System Setup

Installing an SSD/HDD Drive

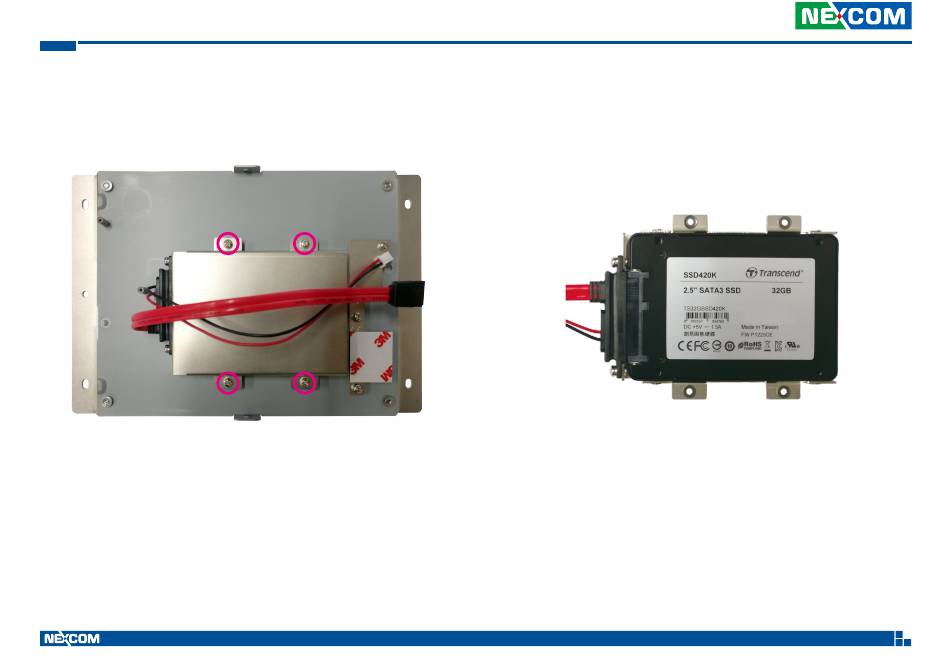

1. Loosen the screws on the SSD/HDD drive bay and take the drive bay out.
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
2. Insert the SSD/HDD into the drive bay with the SATA data and power
connector facing towards the end. Align the SSD/HDD mounting holes
with the mounting holes on the drive bay, and use the provided gaskets
and screws to secure the hard drive in place.
