Chapter 3: Jumpers and Connectors

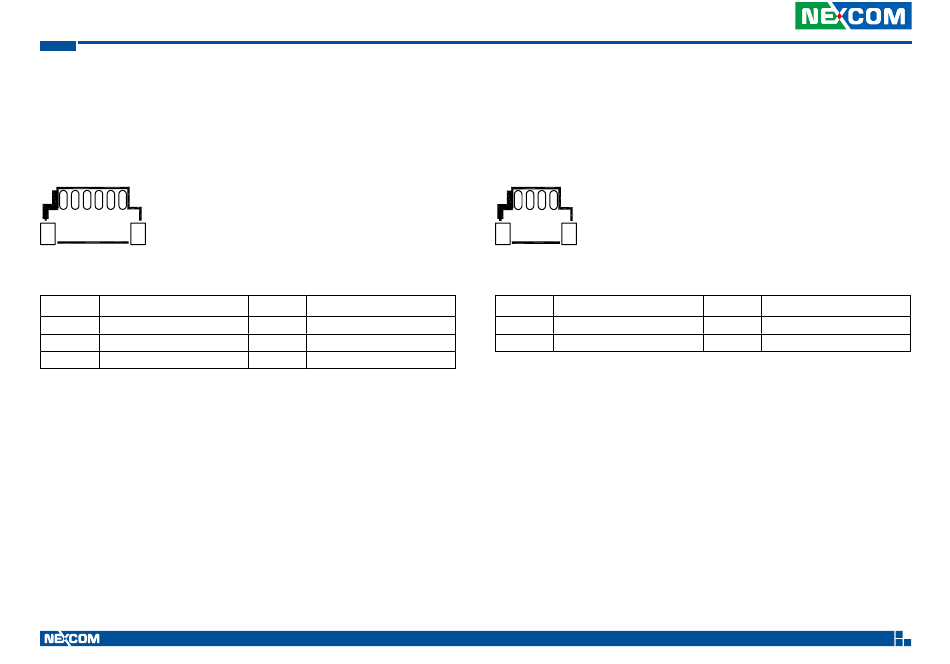

GPS Wire to Board Connector

Connector size: 1 x 6 = 6-pin header
Connector location: J13
1 6
Pin Definition
1 3.3V_BAT
3 TX
5 GND
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 NC
4 RX
6 3.3V

GPS Wire to Board Connector (DR to GPS Module)

Connector size: 1 x 4 = 4-pin header
Connector location: J4
1 4
Pin Definition
1 GND
3 ODOMETER
21
Pin Definition
2 NC
4 DIRECTION
