Chapter 3: Jumpers and Connectors

(BOM Optional)

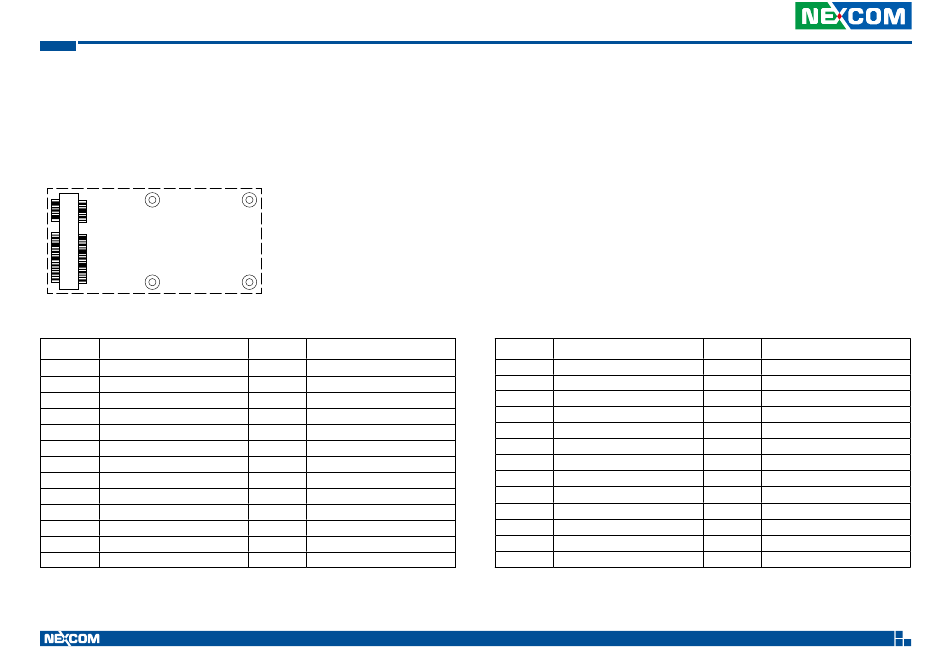

Full-size Mini-PCIe Socket with USB 2.0 + PCIe 3.0 (For Wi-Fi/BT)

Connector location: CN8
1 2
51 52
Pin Definition
1 RI (NC)
3 NC
5 NC
7 PCIE_CLKREQ#
9 GND
11 PCIE_CLKN
13 PCIE_CLKP
15 GND
17 NC
19 NC
21 GND
23 PCIE_RXN
25 PCIE_RXP
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 +V3.3A
4 GND
6 +V1.5S
8 NC
10 NC
12 NC
14 NC
16 GND
18 GND
20 MINIPCIE2_DIS#
22 P2_RST#
24 +V3.3A
26 GND
Pin Definition
27 GND
29 GND
31 PCIE_TXN
33 PCIE_TXP
35 GND
37 GND
39 +V3.3A
41 +V3.3A
43 NC
45 NC
47 NC
49 NC
51 NC
30
Pin Definition
28 +V1.5S
30 NC
32 NC
34 GND
36 USB_D-
38 USB_D+
40 GND
42 NC
44 NC
46 NC
48 +V1.5S
50 GND
52 +V3.3A
