Chapter 2: External Connectors Pinout Description

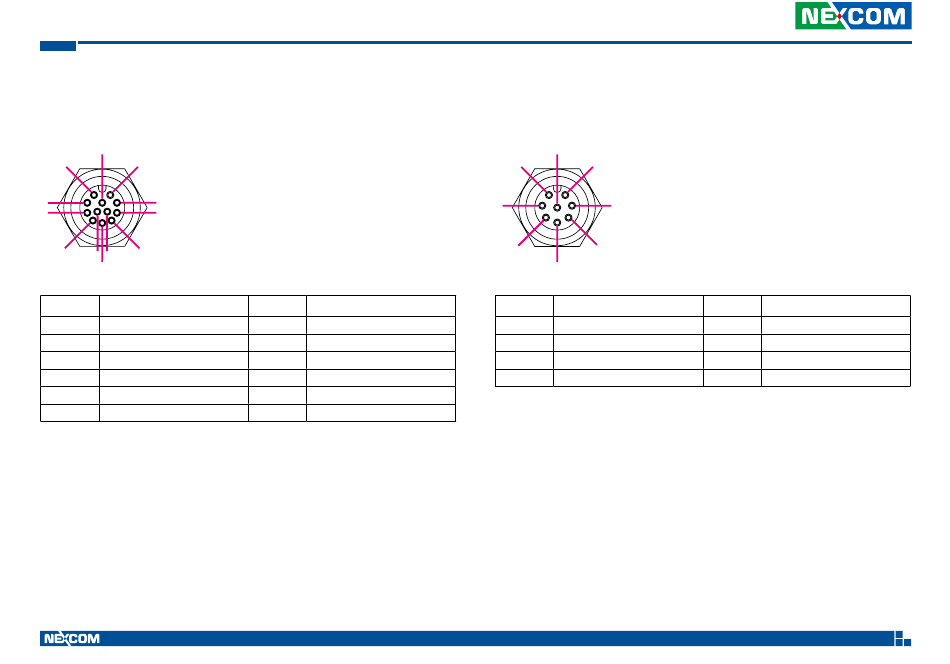

M12 Multiport Connector
Connector Number: 3
10
1
2
3
9
8
4
7
5
12 11
6
Pin
Definition
1
DI1
3
DI3
5
DO2
7
GND
9
CAN1 H
11
CAN2 H
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
DI2
4
DO1
6
DO3
8
CAN1 L
10
CAN2 L
12
GND
M12 COM3 Connector
Connector Number: 4
8
1
2
7
3
4
6
5
Pin
Definition
1
DCD (TX-)
3
TX (RX+)
5
GND
7
RTS
6
Pin
Definition
2
RX (TX+)
4
DTR (RX+)
6
DSR
8
CTS
VTC 7252-7C4IP User Manual
