Chapter 3: Jumpers and Connectors

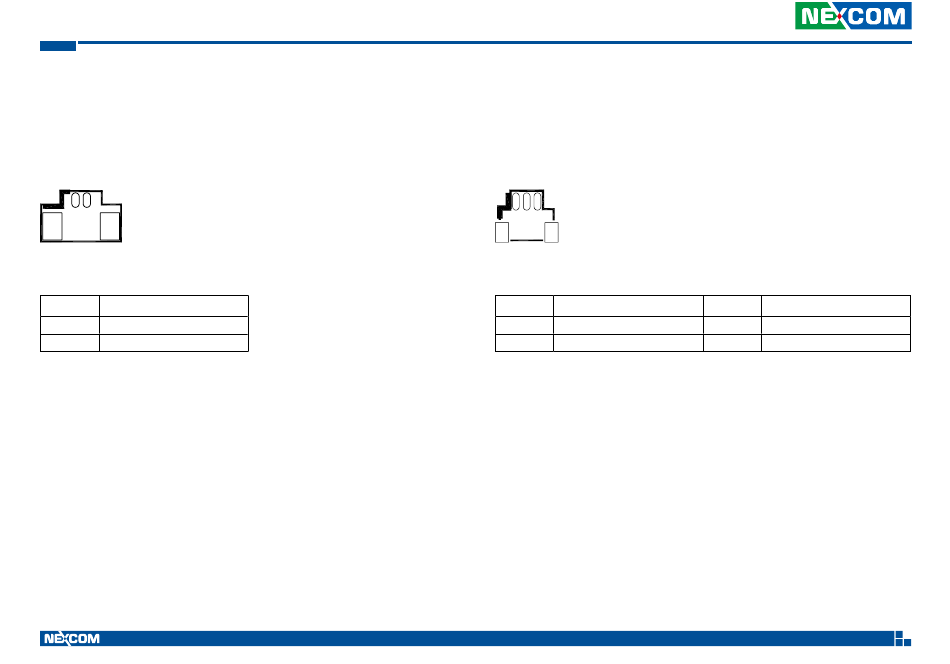

GPS Battery Connector

Connector size: 1 x 2 = 2-pin header
Connector location: J14
1 2
Pin Definition
1 GND
2 VBAT
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.

GPS Wire to Board Connector (DR IN)

Connector size: 1 x 3 = 3-pin header
Connector location: J23
1 3
Pin Definition
1 ODOMETER
3 GND
22
Pin Definition
2 DIRECTION
