Chapter 3: Jumpers and Connectors

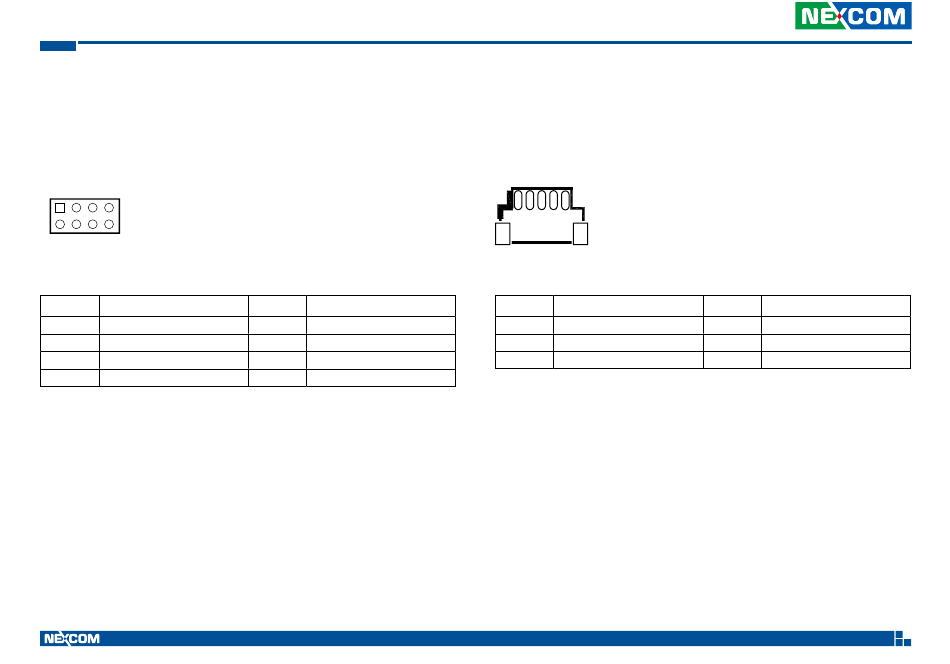

MCU Download Port

Connector size: 2 x 4 = 8-pin header
Connector location: JP2
1
7
2
8
Pin
Definition
1
3.3V
3
MCU_TRST
5
MCU_TCK
7
MCU_TDO
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
MCU_RST
4
MCU_TDI
6
MCU_TMS
8
GND

Dual CAN Connector

Connector size: 1 x 4 = 4-pin header
Connector location: J22
1
5
Pin
Definition
1
CAN2_H
3
GND
5
CAN1_L
25
Pin
Definition
2
CAN2_L
4
CAN1_H
VTC 7252-7C4IP User Manual
